B1210

DTC B1210 POWER SOURCE CONTROL ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

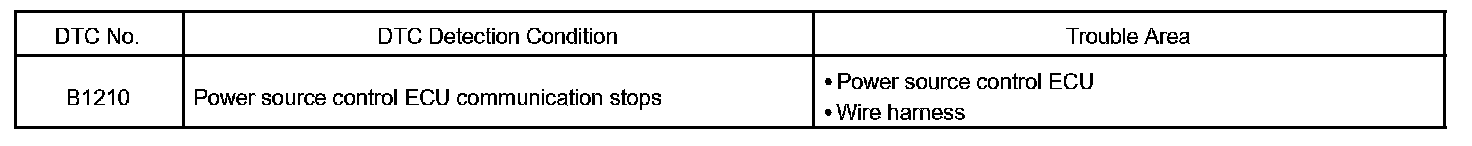

DTC Detection Condition:

This DTC is detected when communication between the power source control ECU and gateway ECU stops for more than 10 seconds.

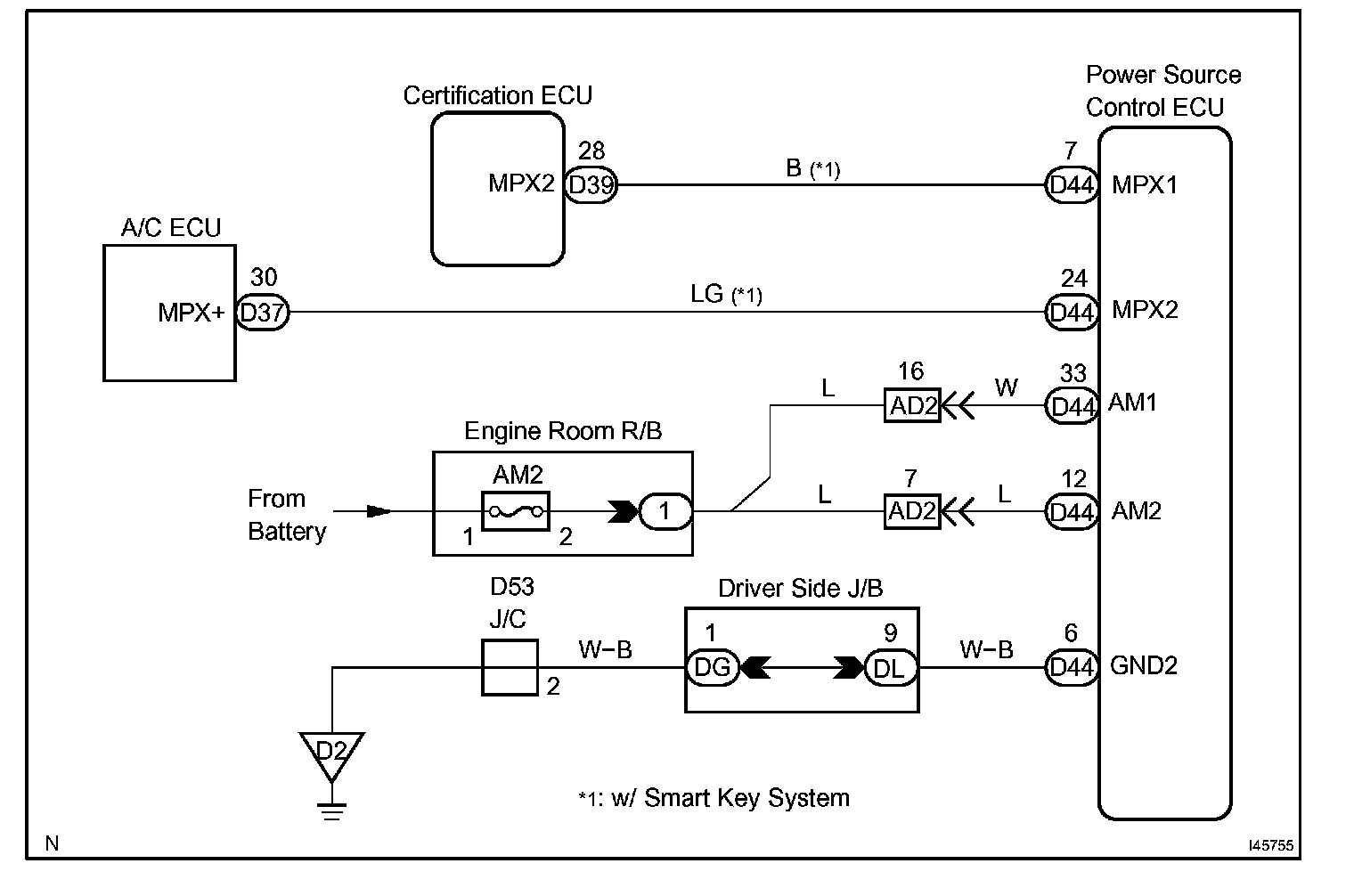

Wiring Diagram:

Step 1:

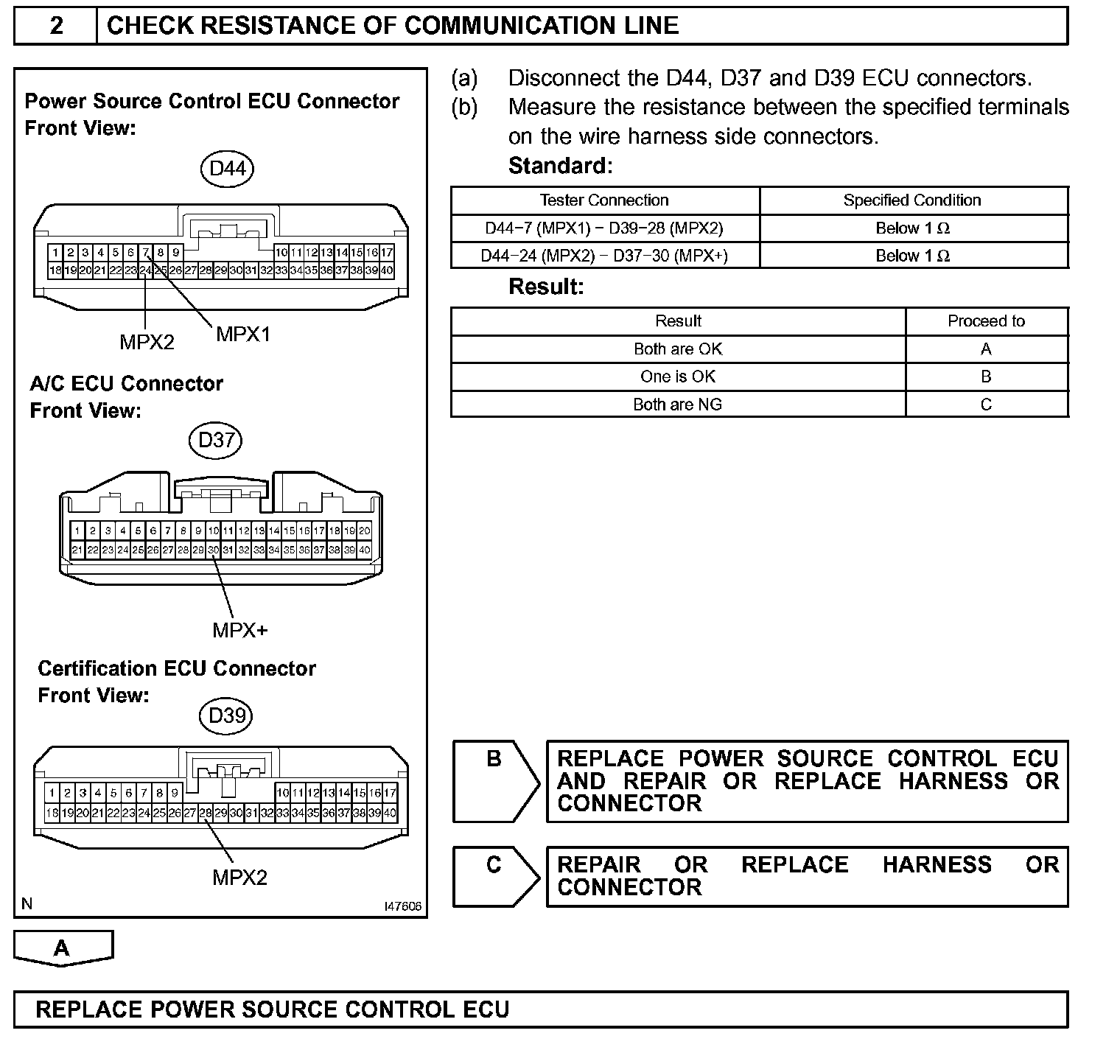

Step 2:

INSPECTION PROCEDURE
