B2273

DTC B2273 IGNITION 2 OUTSIDE-MONITOR MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is output when the IG output circuit from the inside of the power source control ECU to the IG2 relay is malfunctioning.

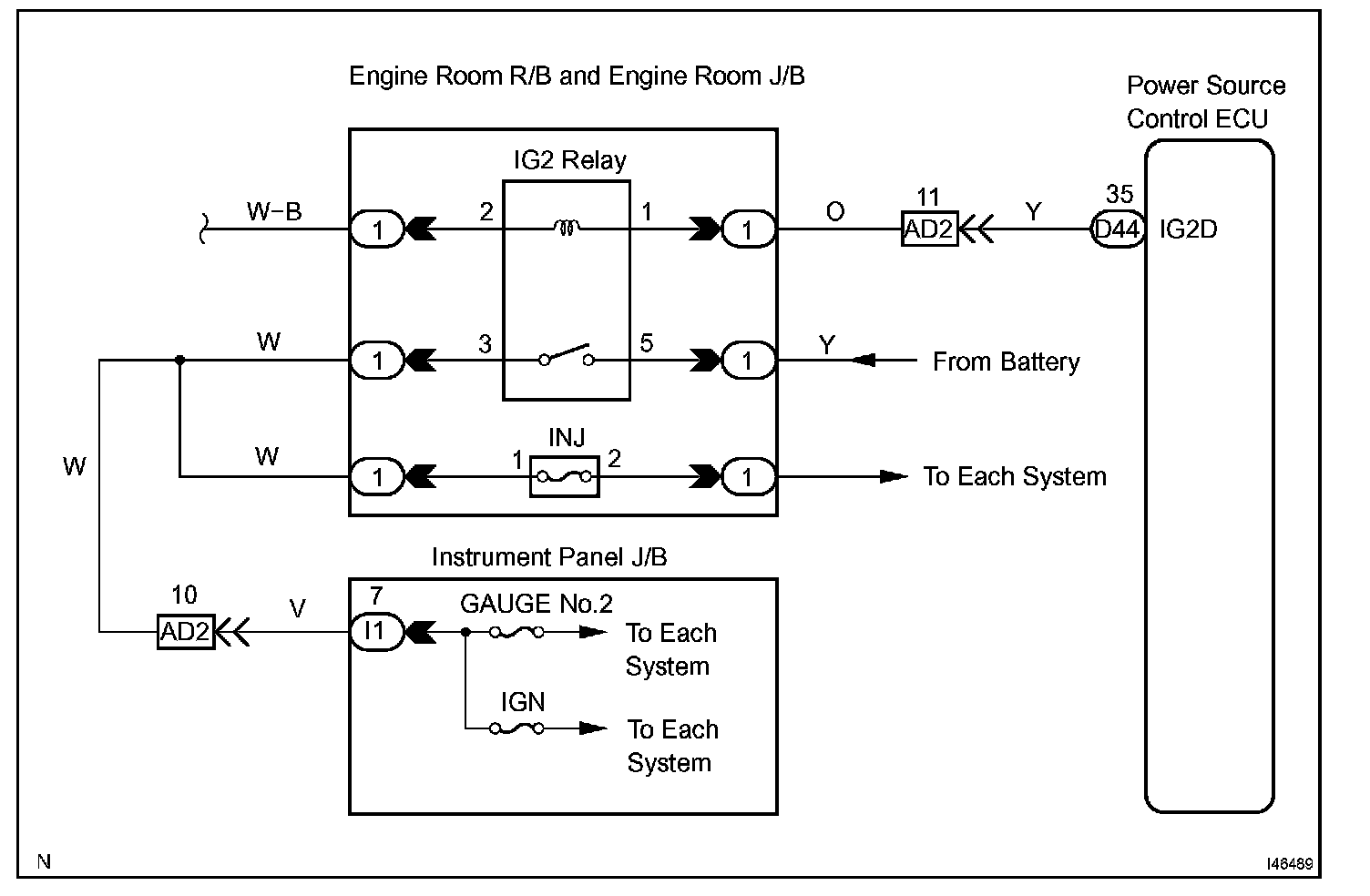

Wiring Diagram:

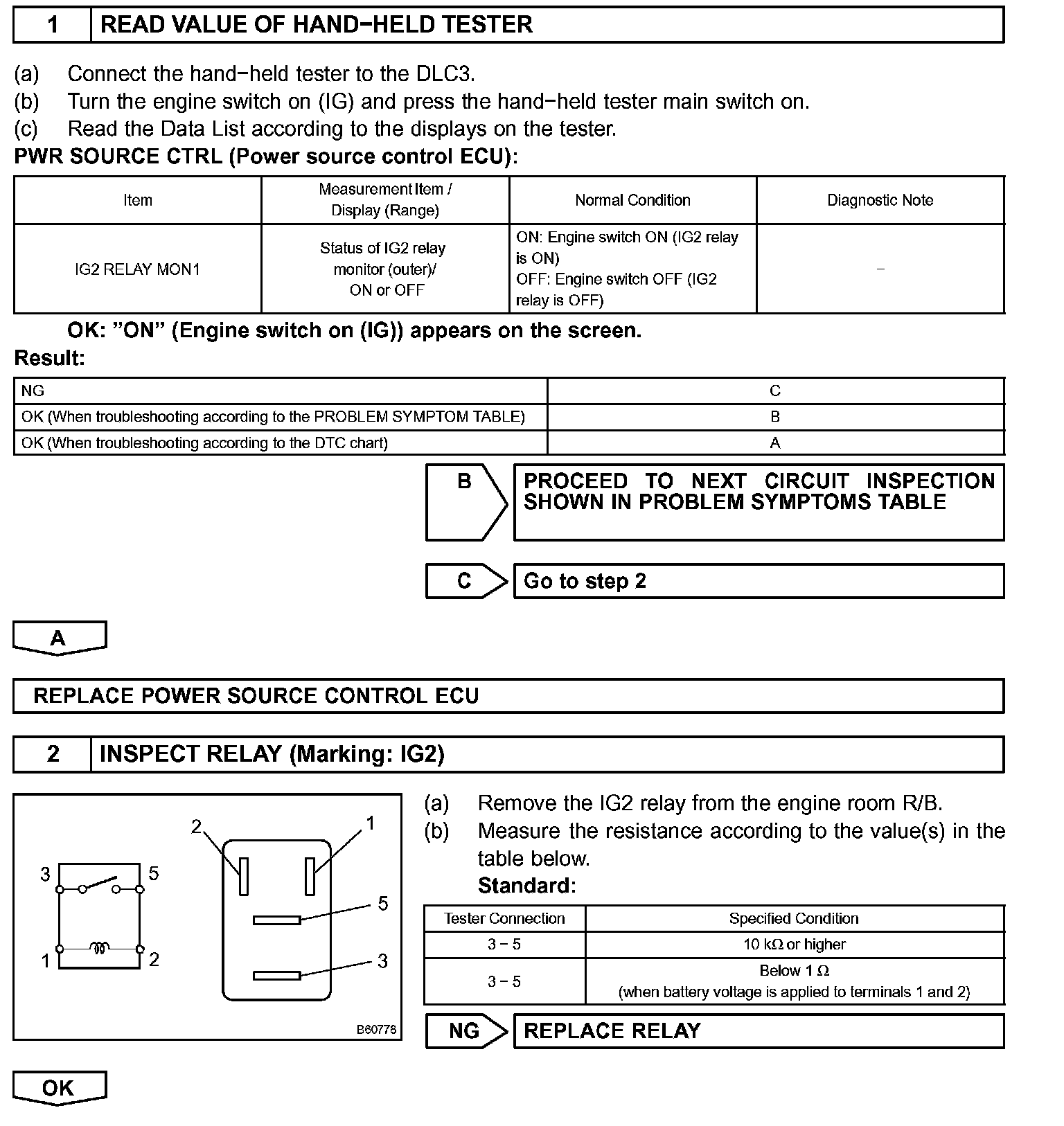

Step 1-2:

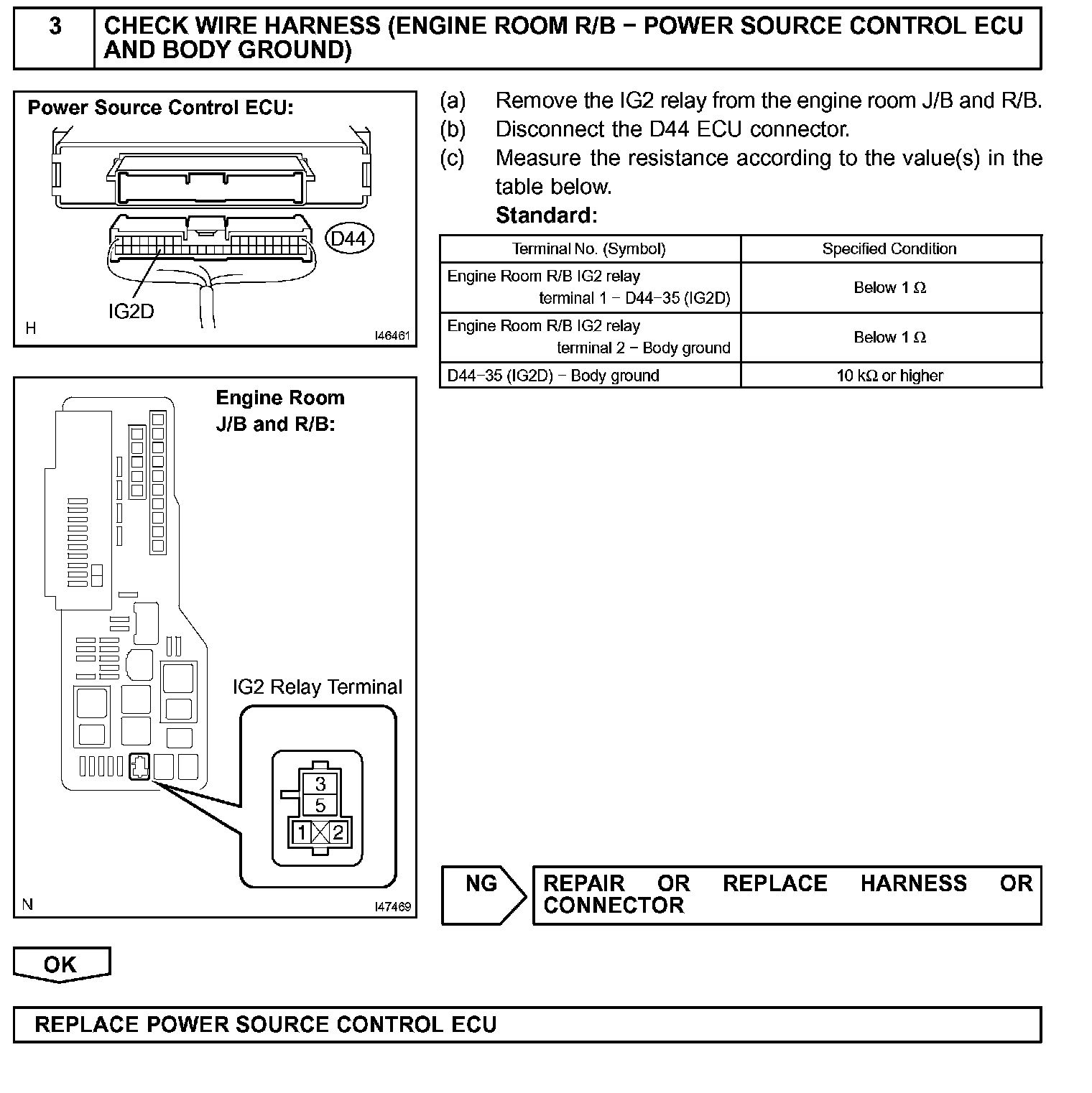

Step 3:

INSPECTION PROCEDURE
