B2285

DTC B2285 STEERING LOCK POSITION SIGNAL MALFUNCTION (CABLE-INFORMATION DOES NOT MATCH TO LIN-INFORMATION)
DTC B2288 STEERING LOCK UNLOCK WAITING TIME OVER

CIRCUIT DESCRIPTION

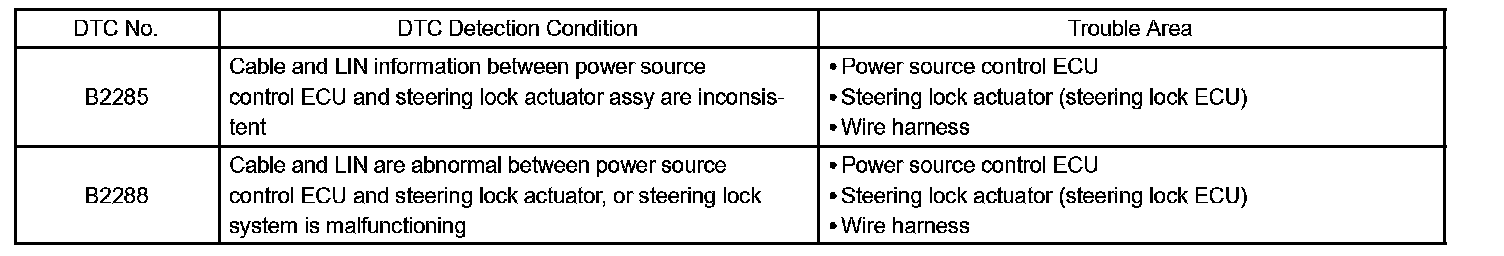

DTC Detection Condition:

The power source control ECU and the steering lock ECU are connected by a cable and LIN. These DTCs are output when: 1) the cable information and LIN information are inconsistent; and 2) a malfunction is detected between the power source control ECU and the steering lock ECU.

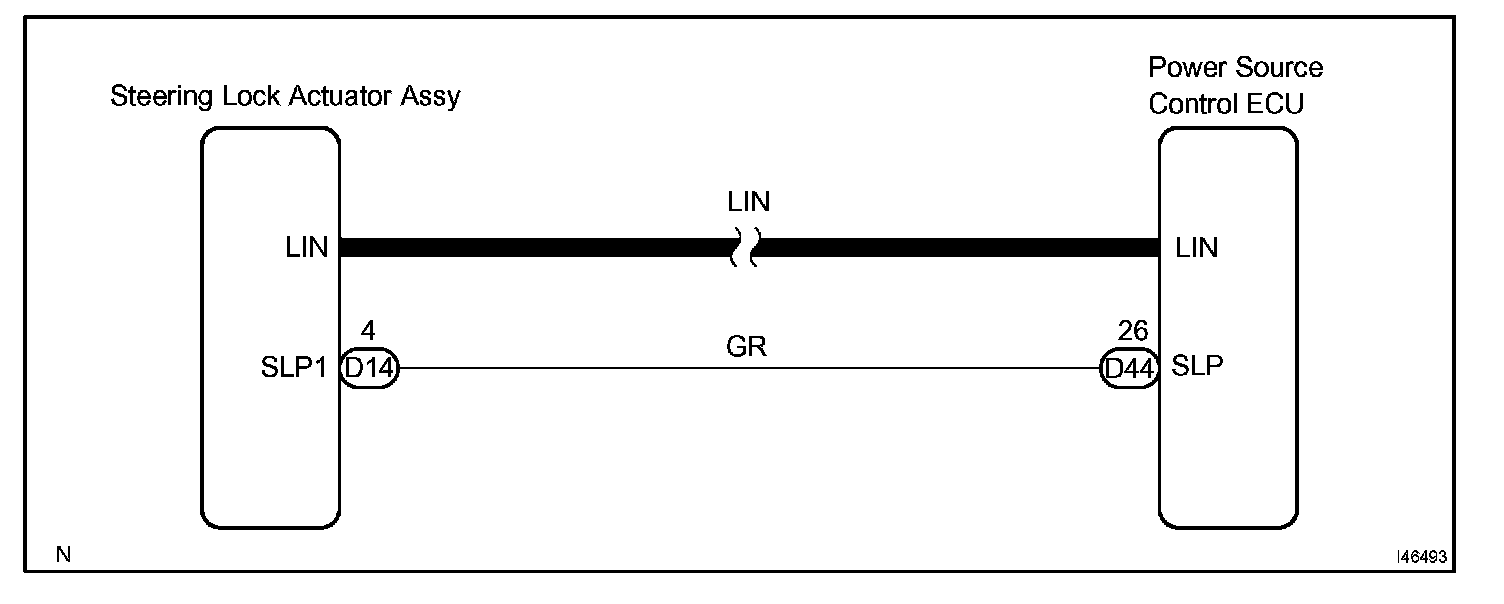

Wiring Diagram:

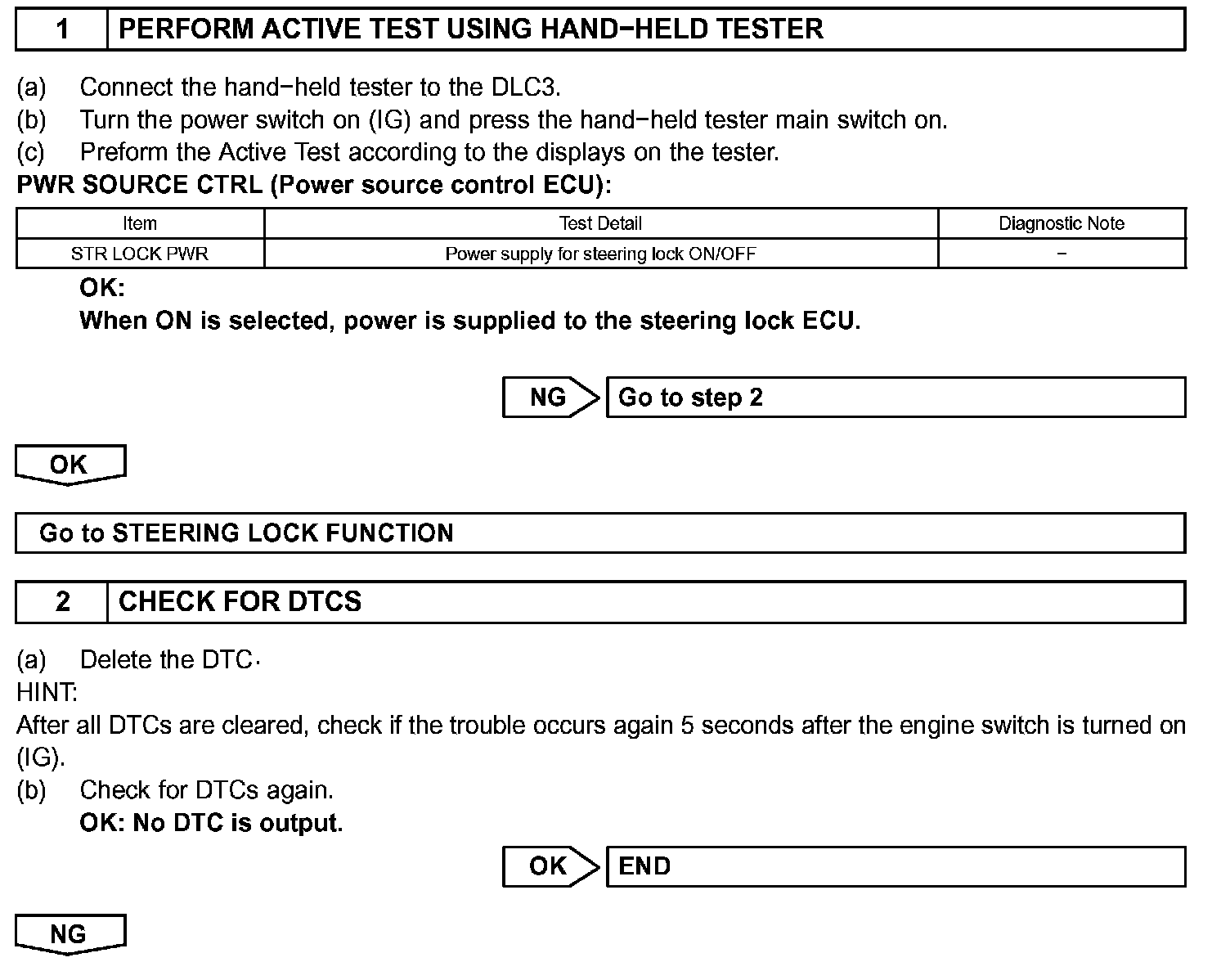

Step 1-2:

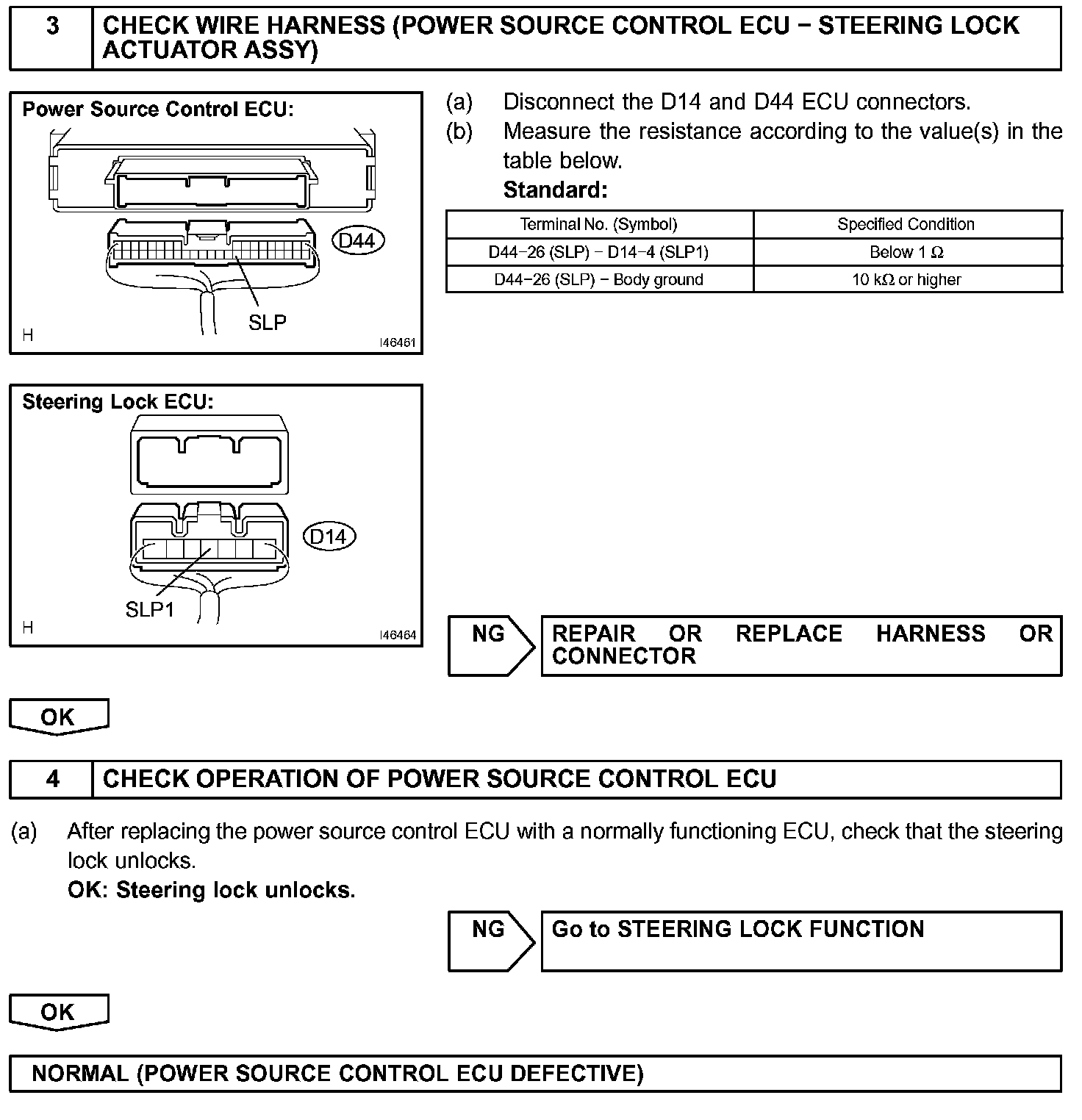

Step 3-4:

INSPECTION PROCEDURE
