B2289

DTC B2287 LIN COMMUNICATION MASTER MALFUNCTION
DTC B2289 KEY COLLATION WAITING TIME OVER

CIRCUIT DESCRIPTION

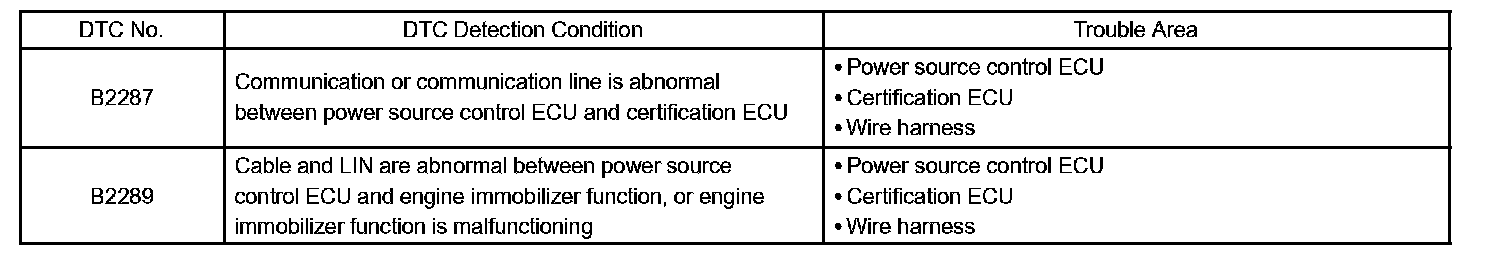

DTC Detection Condition:

These DTCs are output when :1) any other DTC is set in the power source control ECU: or 2) the wire harness between the power source control ECU and the certification ECU is open or short.

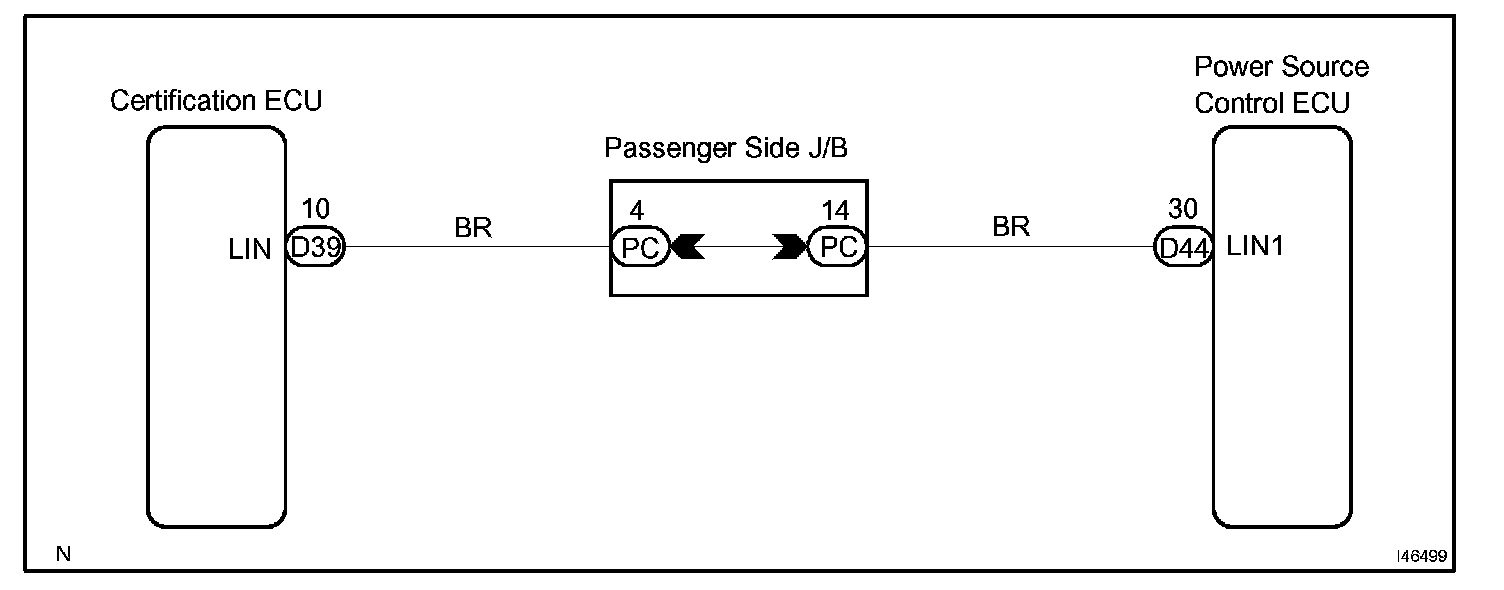

Wiring Diagram:

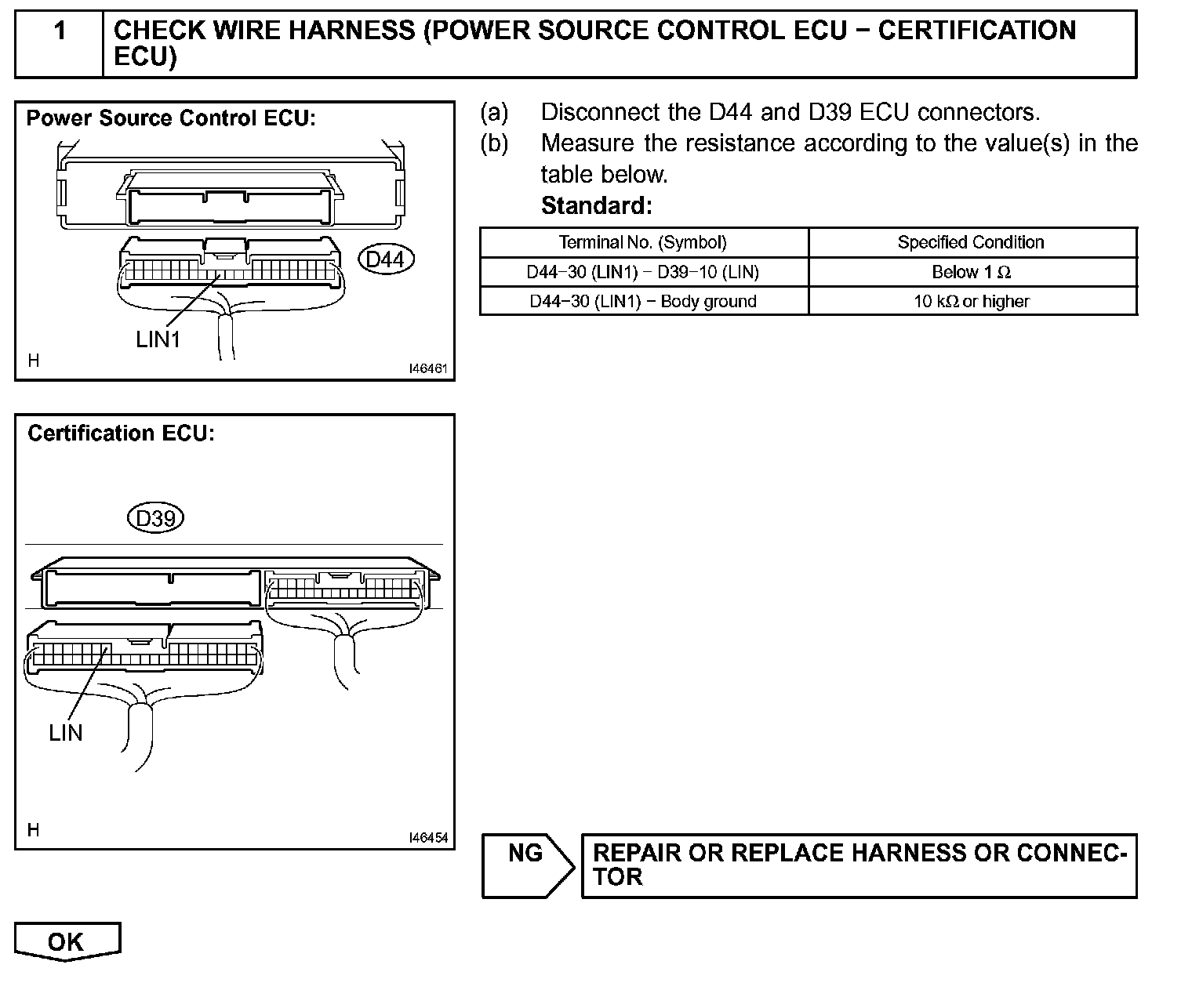

Step 1:

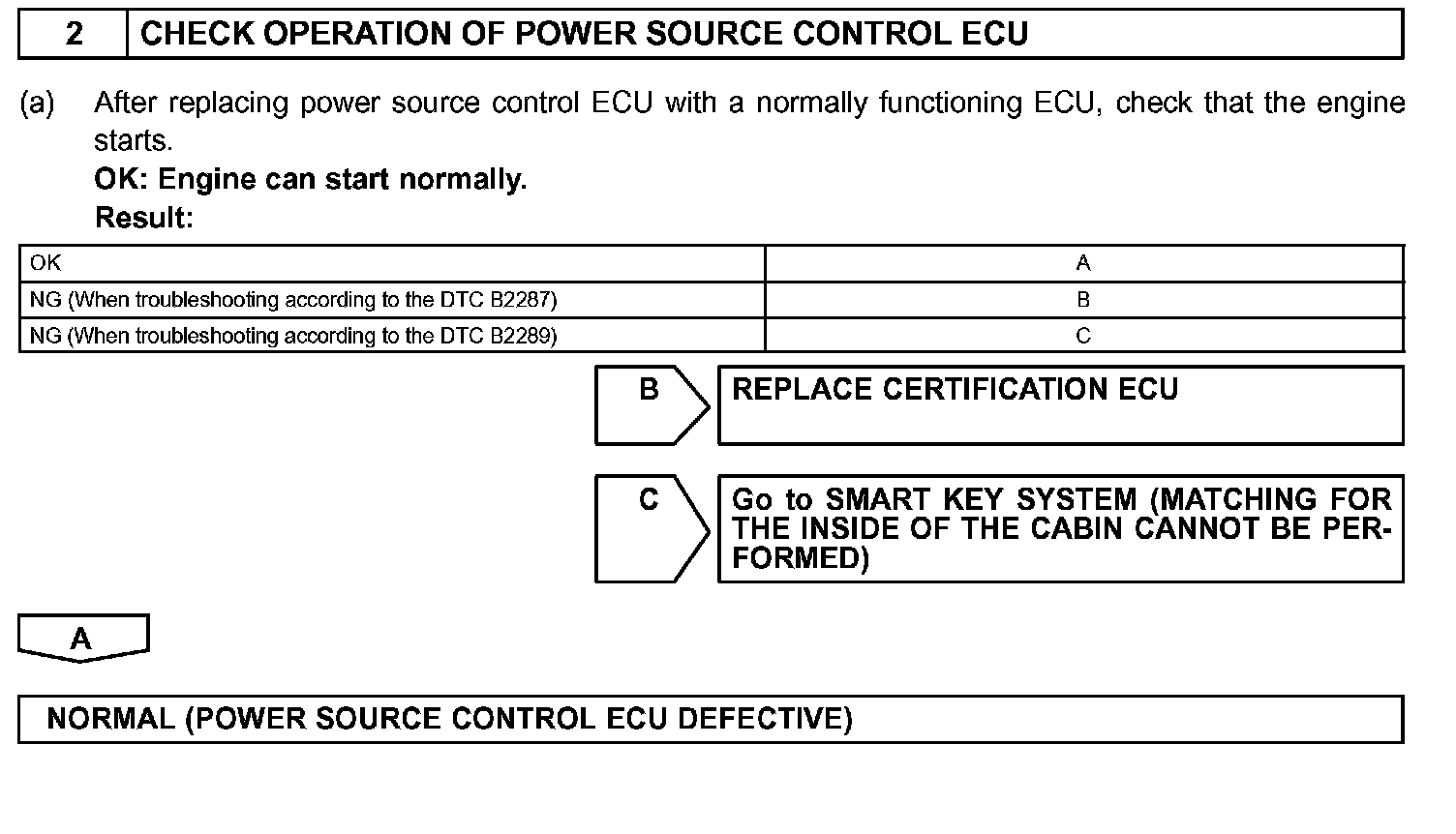

Step 2:

INSPECTION PROCEDURE
