C1251

DTC C1251/51 PUMP MOTOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

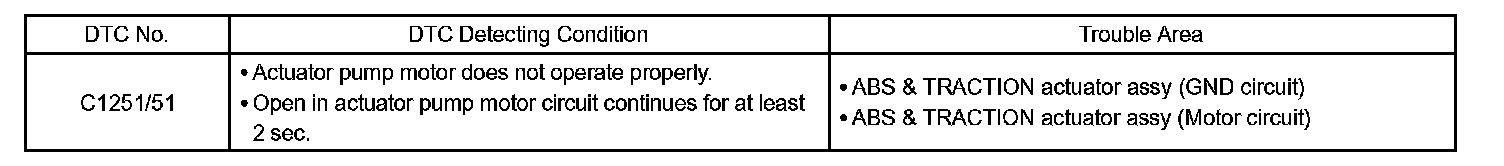

DTC Detecting Condition:

The pump motor is located inside the ABS & TRACTION actuator assembly.

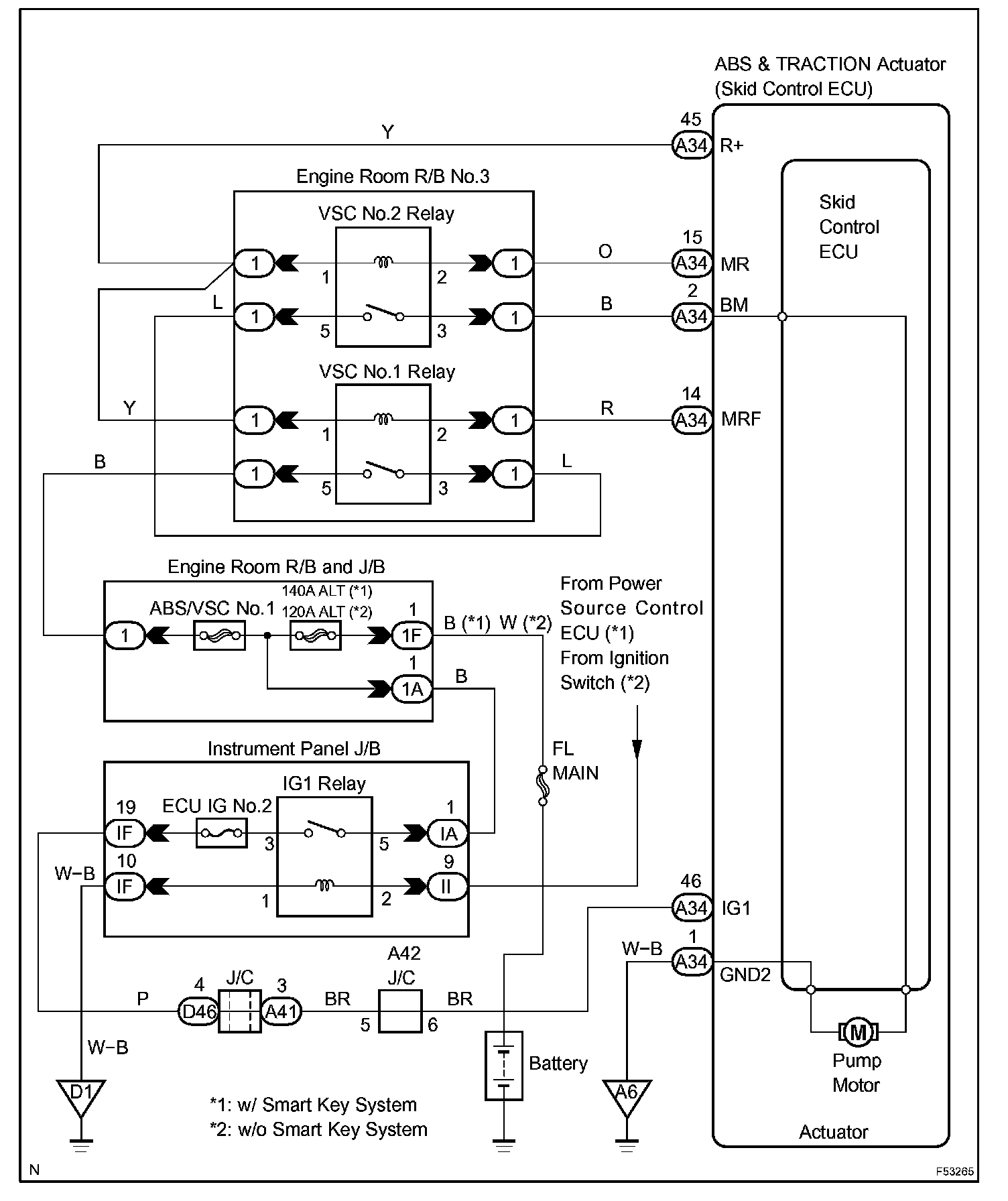

Wiring Diagram:

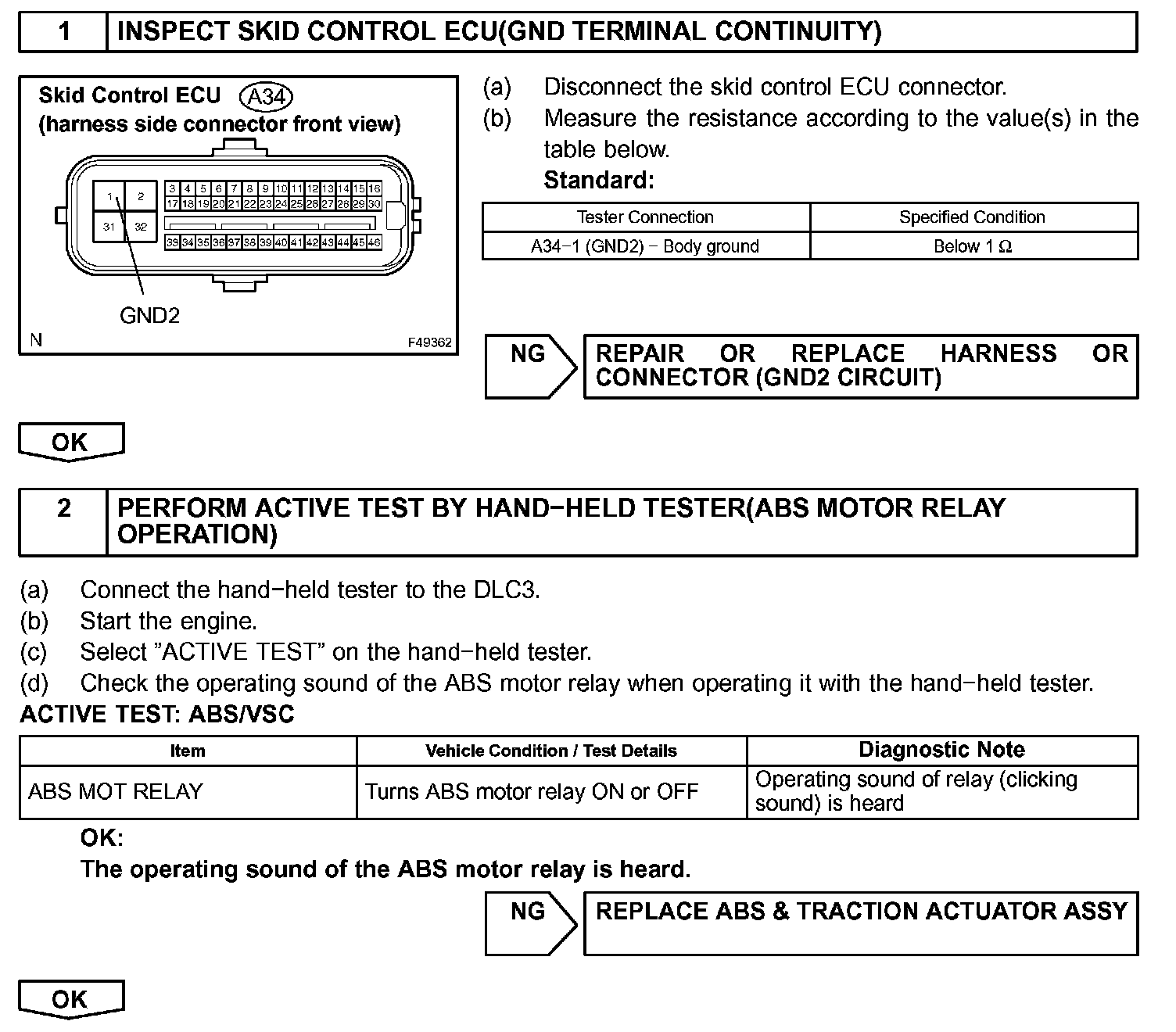

Step 1-2:

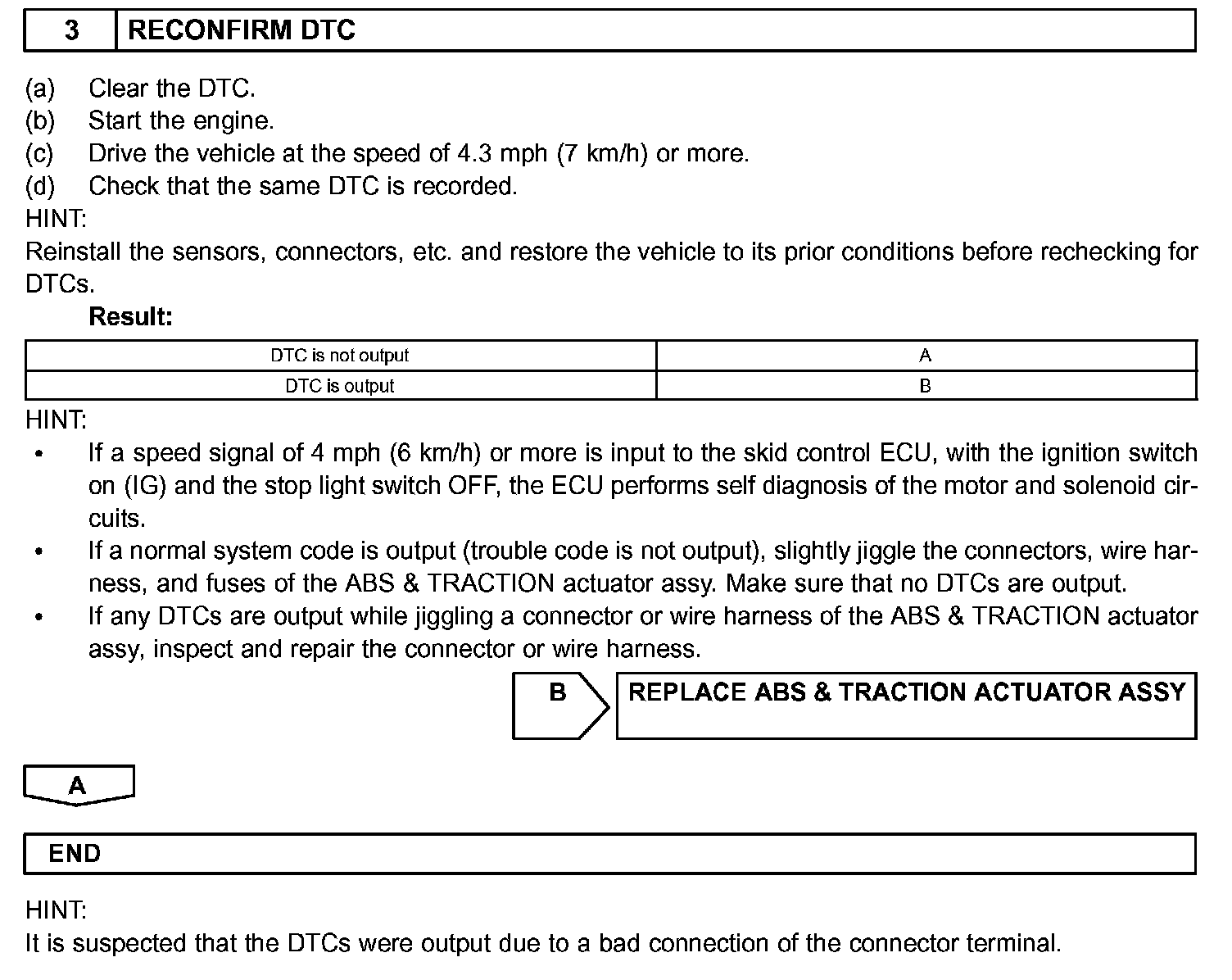

Step 3:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
