C1361

DTC C1361/91 SHORT CIRCUIT IN ABS MOTOR FAIL SAFE RELAY CIRCUIT

CIRCUIT DESCRIPTION

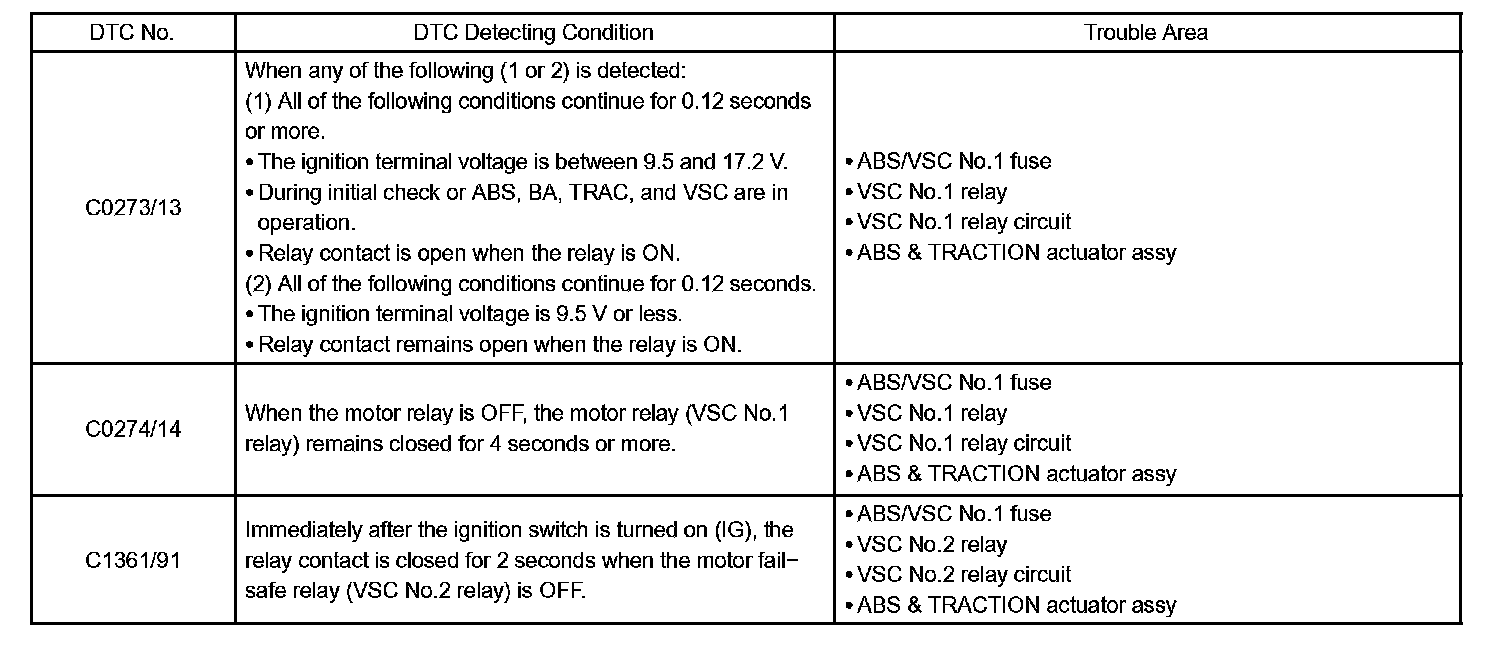

DTC Detecting Condition:

If a DTC of the motor line is stored, the VSC No.2 relay cuts off the power supply to the VSC No.1 relay and performs fail-safe.

While any of the ABS, TRAC, VSC, or BA is operating, the skid control ECU (housed in the ABS & TRACTION actuator assembly) turns the VSC No.2 relay on and activates the pump motor in the ABS & TRACTION actuator.

This code may be stored if the motor relay (+BM) voltage becomes lower than the DTC detecting condition due to insufficient output from the battery or alternator.

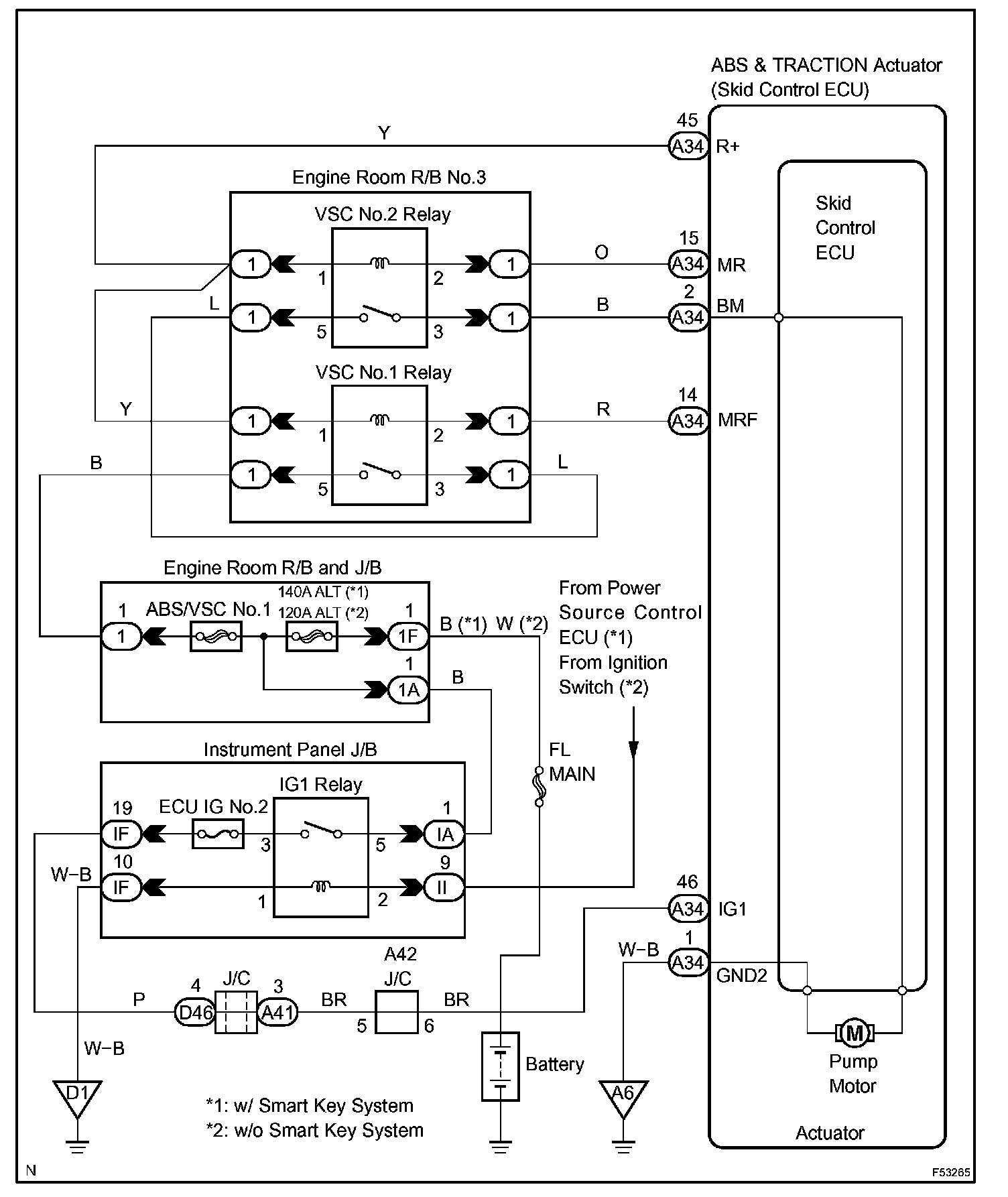

Wiring Diagram:

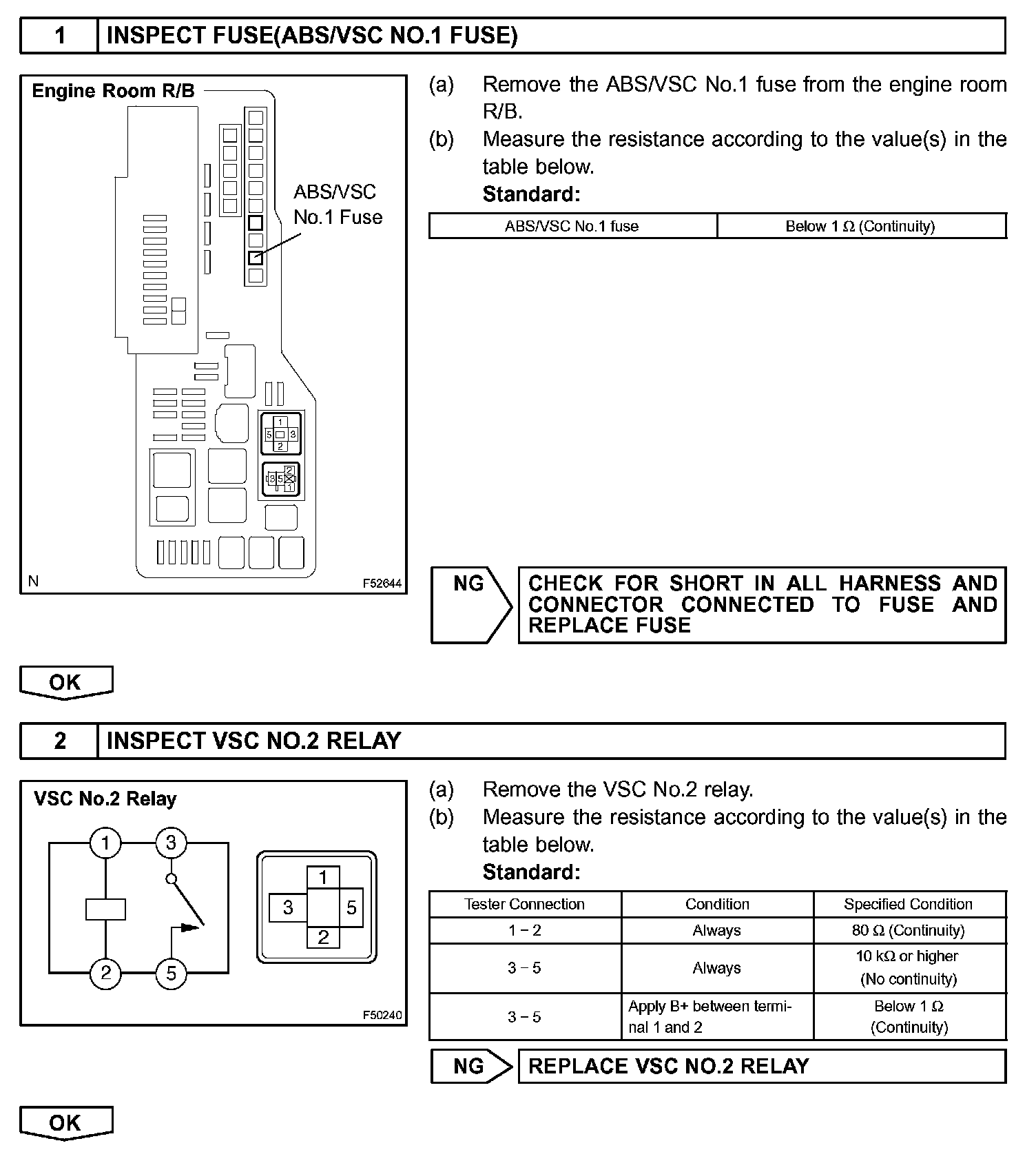

Step 1-2:

Step 3-4:

Step 5-6:

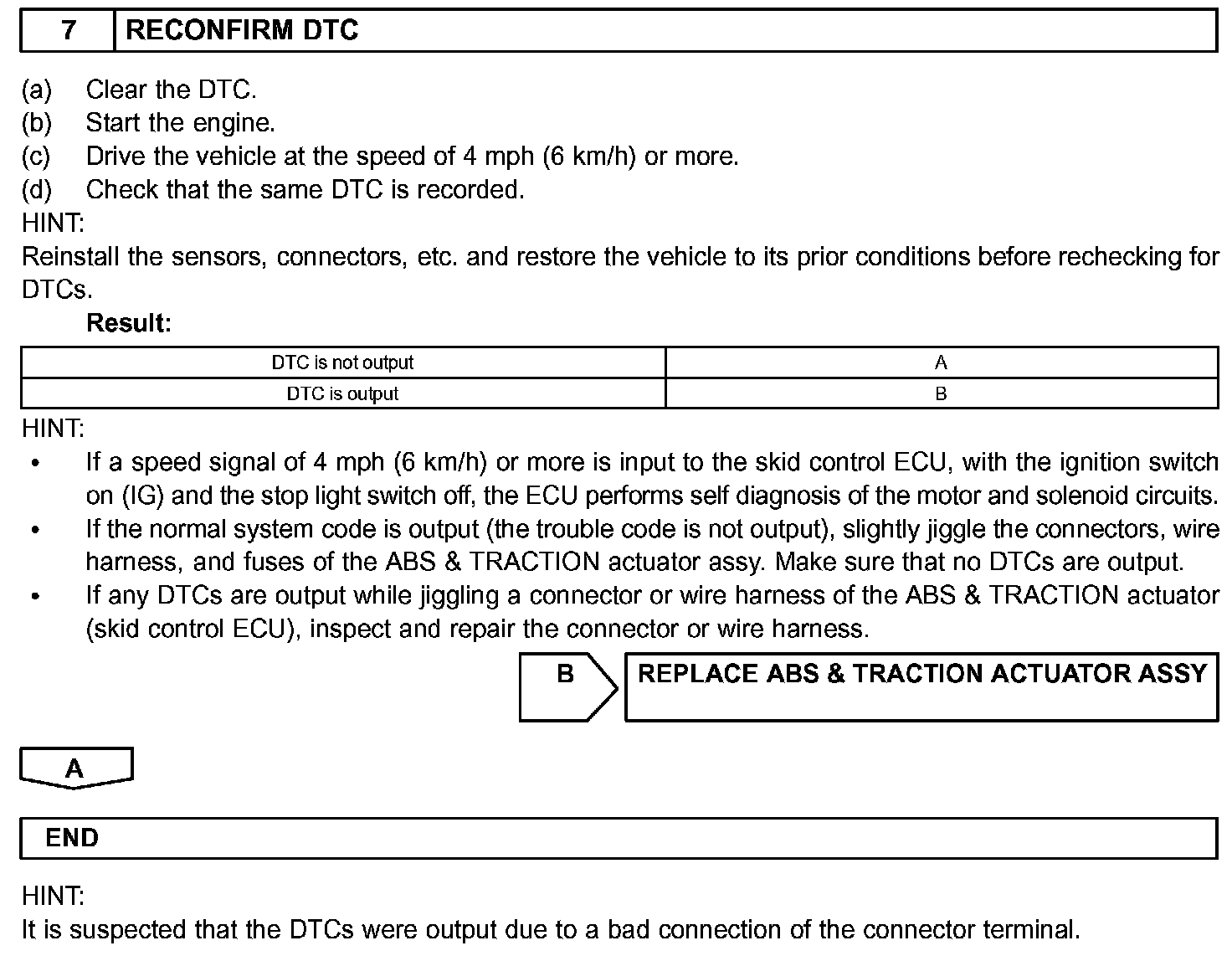

Step 7:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
