Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

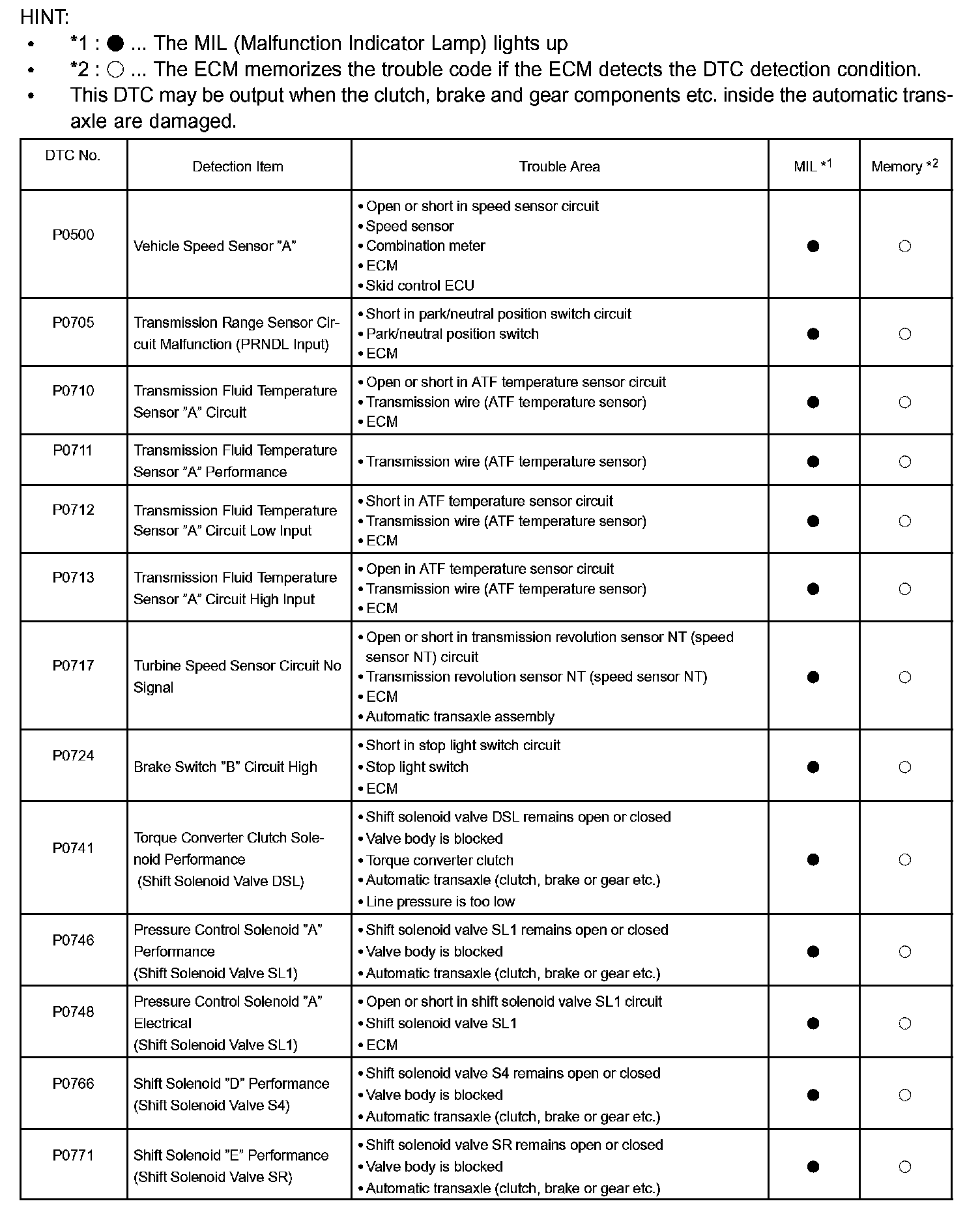

P0500-P0771:

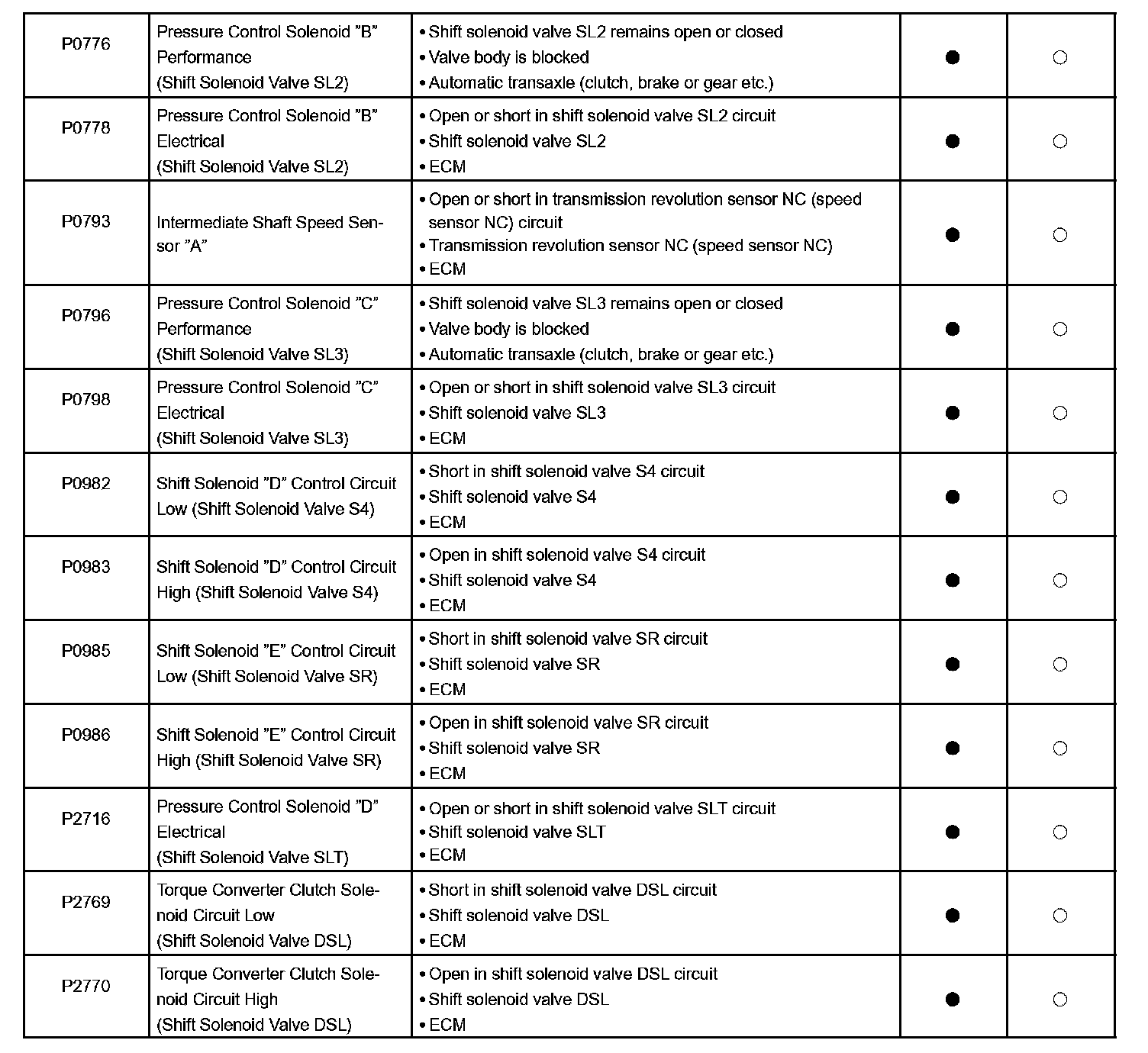

P0776-P2770:

If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the appropriate DTC No. given.
