Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

P0010-P0018:

P0019-P0051:

P0052-P0118:

P0120-P0158:

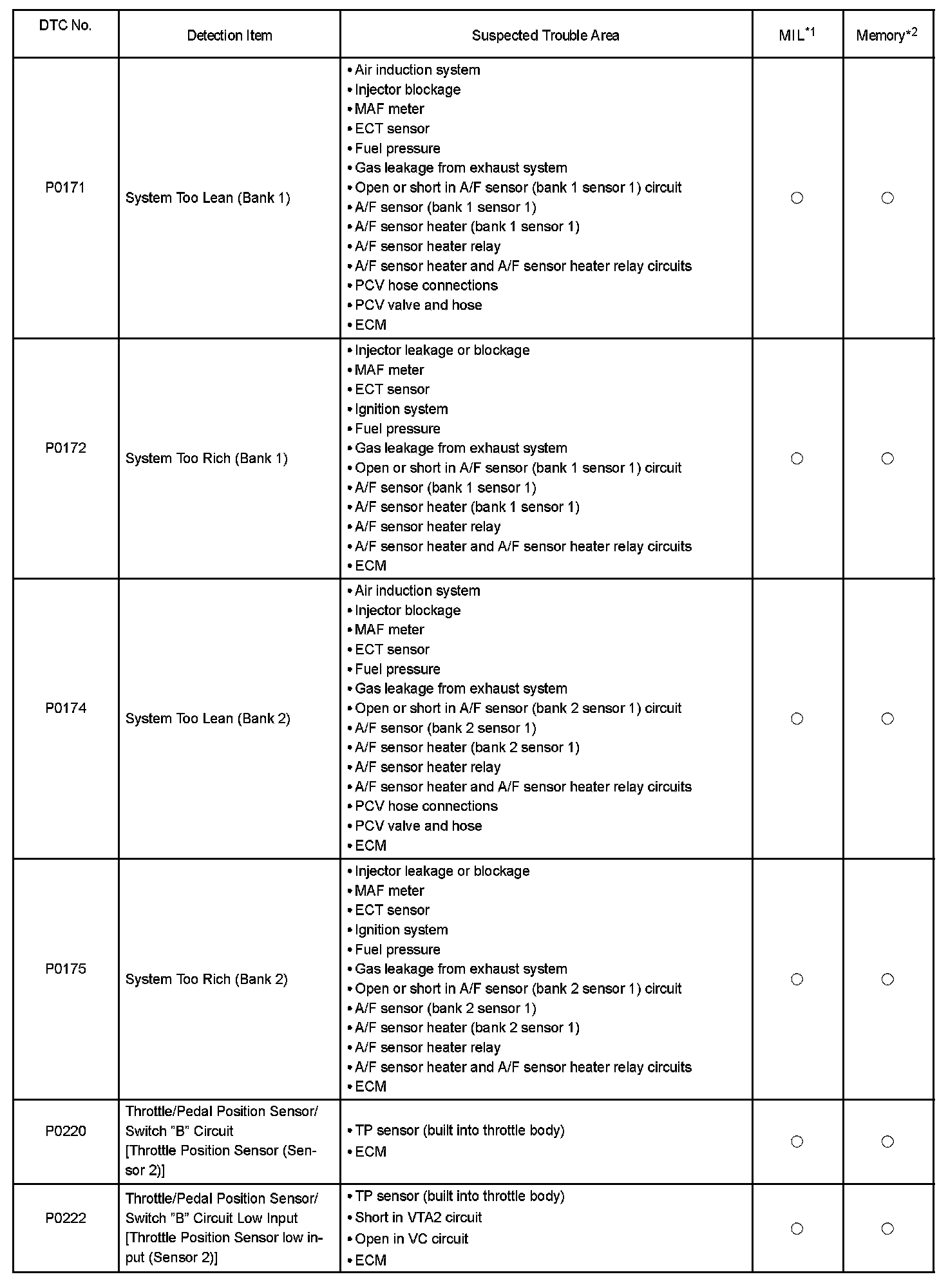

P0171-P0222:

P0223-P0339:

P0340-P0390:

P0392-P0455:

P0456-P0741:

P0746-P2119:

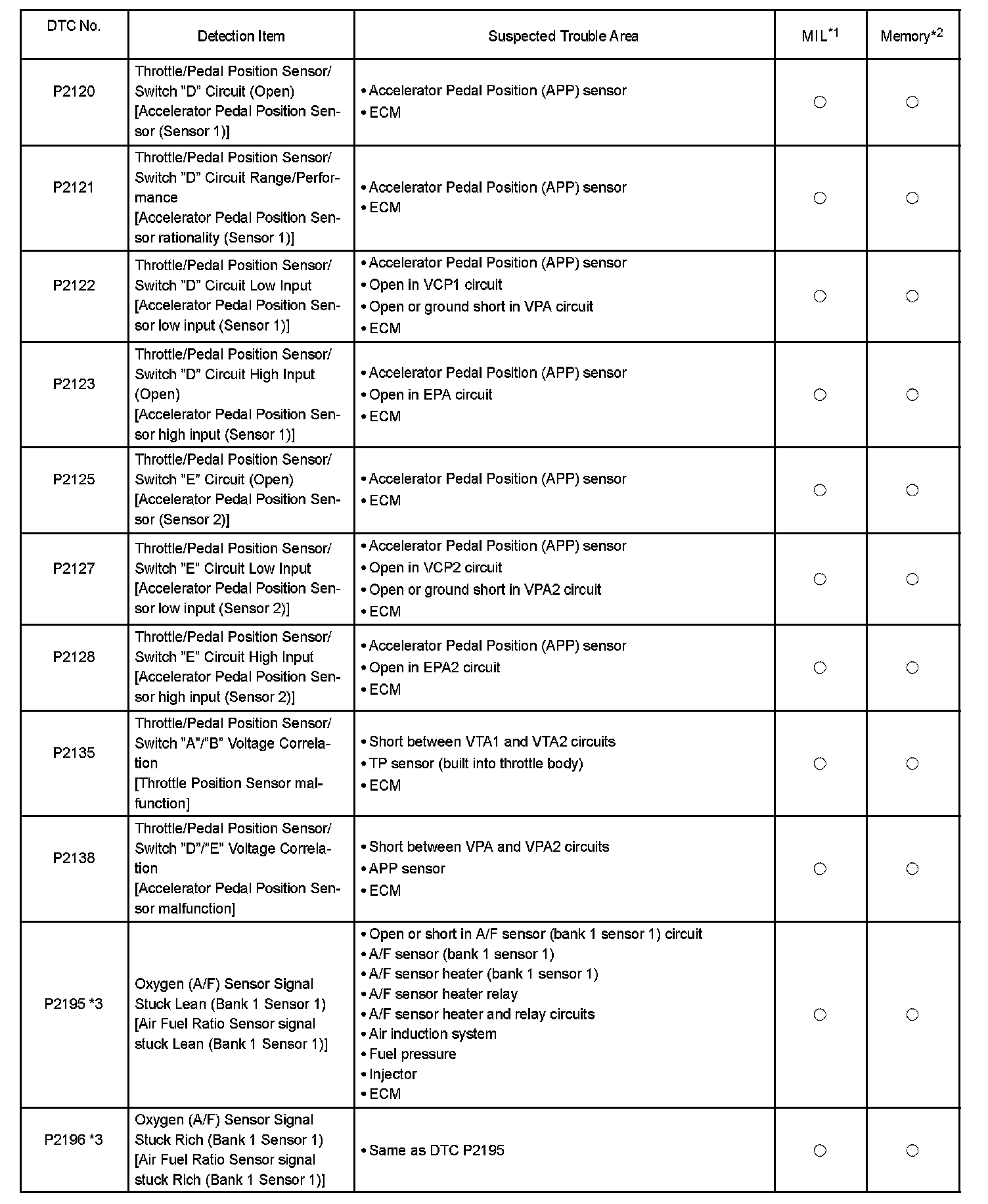

P2120-P2196:

P2197-P2420:

P2610-B2799:

HINT: The parameters listed in the chart may not conform exactly to those read during the DTC check due to the type of instrument or other factors.

If a trouble code is displayed during the DTC check in the check mode, check the circuit for the code listed in the table. For details of each code, refer to the respective "DTC No." in the DTC chart.
