Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

B2780-B2798:

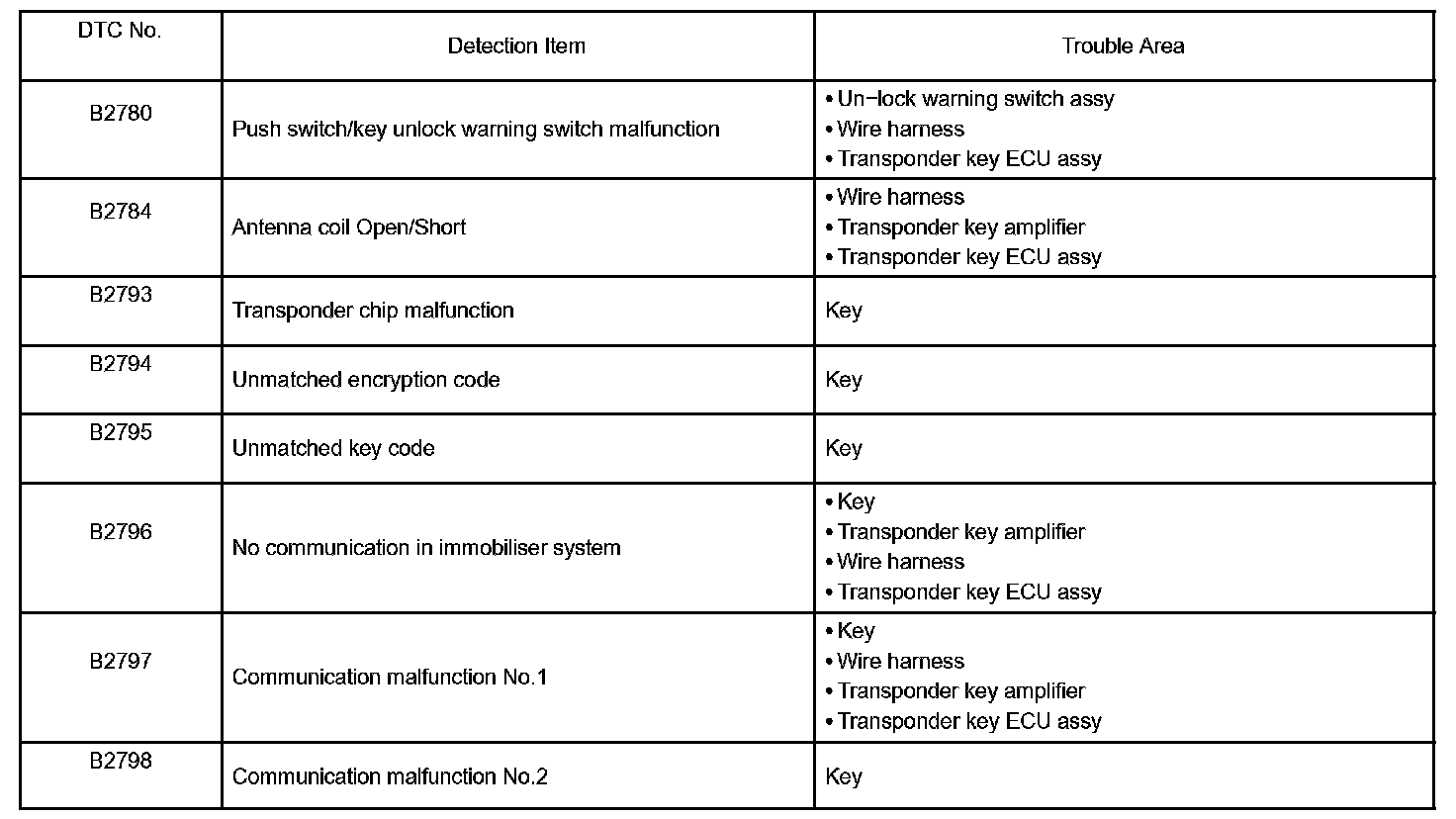

1. TRANSPONDER KEY ECU DTC CHART

B2799/99:

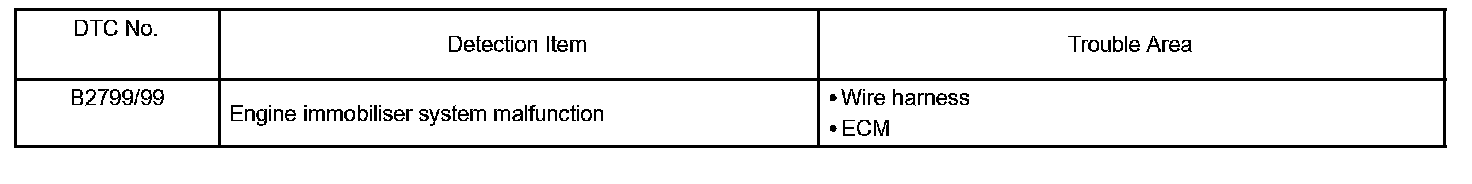

2. ECM DTC CHART

NOTE: The DTCs for the immobilizer system are specified. If other codes are output, check the DTCs chart for the engine control system.
