P0724

DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH

CIRCUIT DESCRIPTION

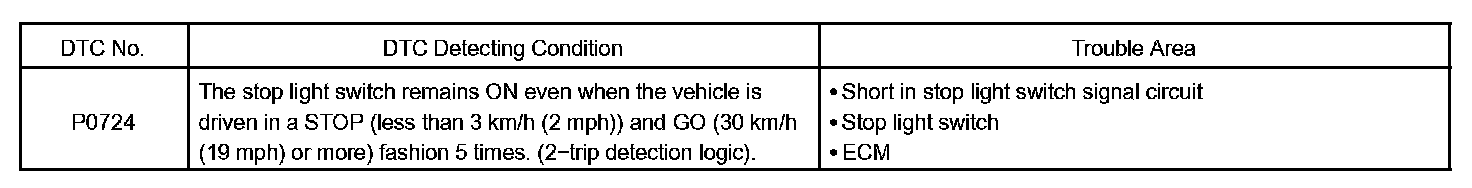

DTC Detecting Condition:

The purpose of this circuit is to prevent the engine from stalling while driving in lock-up condition when brakes are suddenly applied.

When the brake pedal is depressed, this switch sends a signals to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.

MONITOR DESCRIPTION

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

This DTC indicates that the stop light switch remains on. When the stop light switch remains ON during "stop and go" driving, the ECM interprets this as a fault in the stop light switch and the MIL comes on and the ECM stores the DTC. The vehicle must stop (less than 3 km/h (2 mph)) and go (30 km/h (19 mph) or more) five times for two driving cycles in order to detect a malfunction.

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Step 1-2:

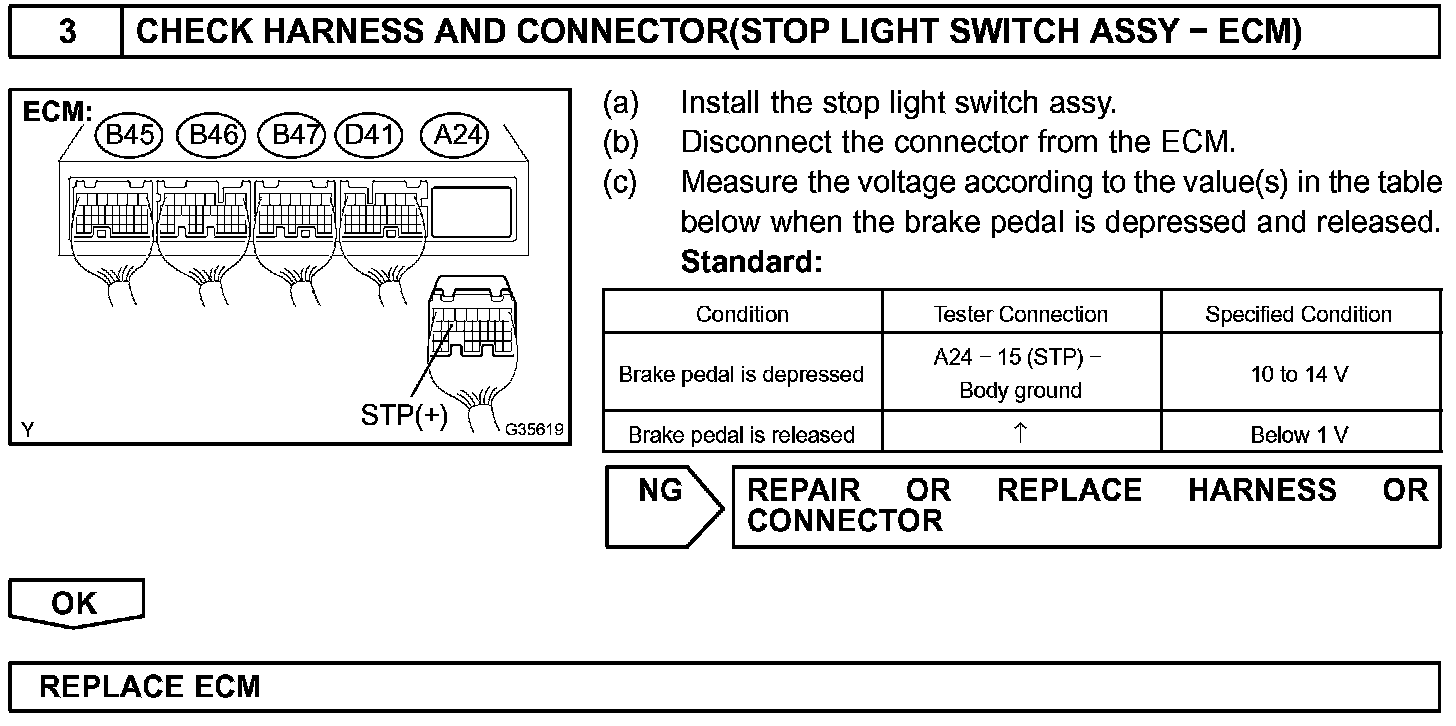

Step 3:

INSPECTION PROCEDURE
