Luggage Compartment Door Courtesy Light Switch Circuit

LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The multiplex network body ECU detects the luggage compartment door open or closed status based on signals from the luggage compartment door courtesy light switch (luggage room light).

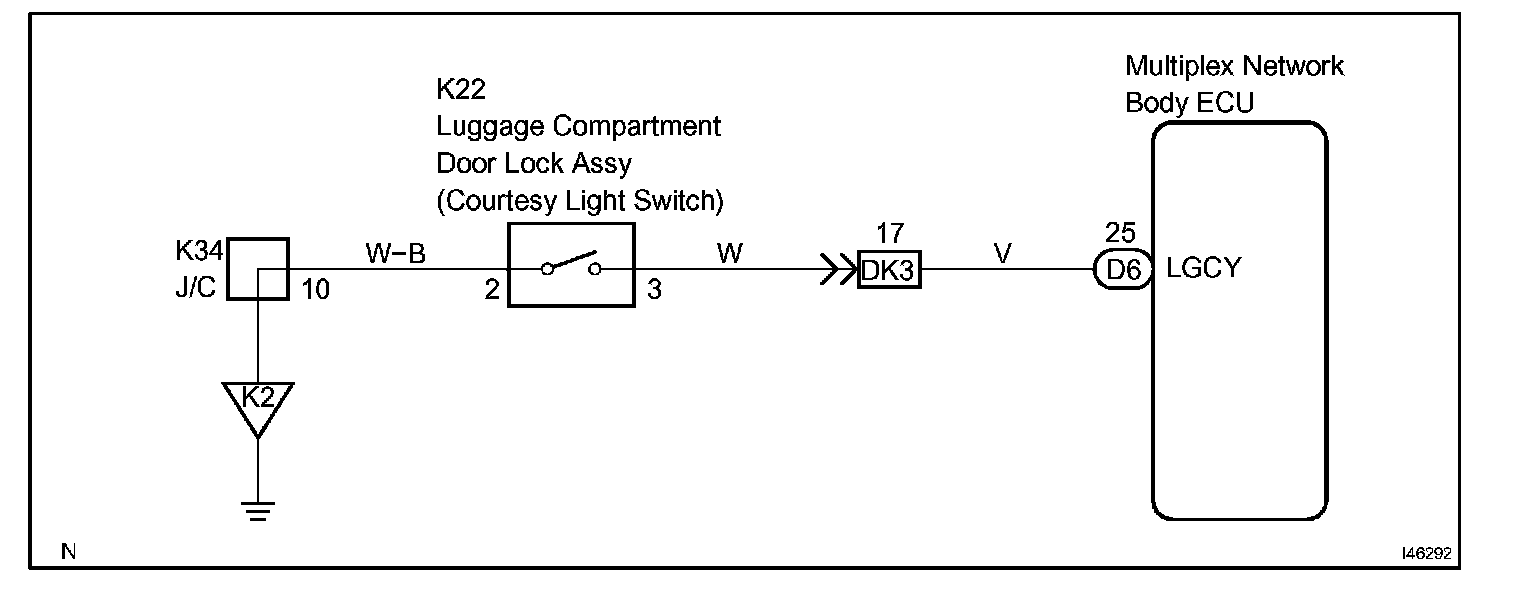

Wiring Diagram:

Step 1:

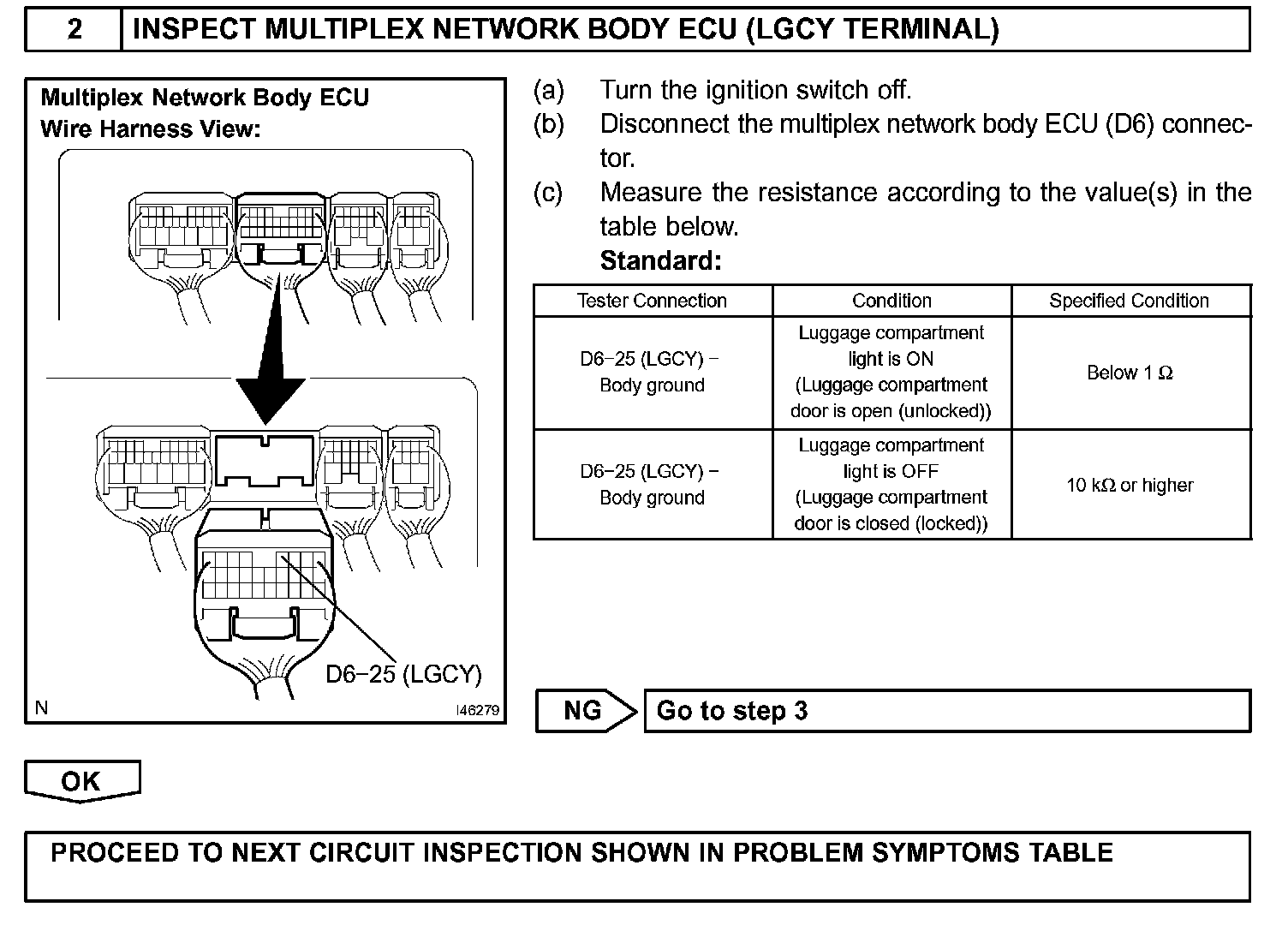

Step 2:

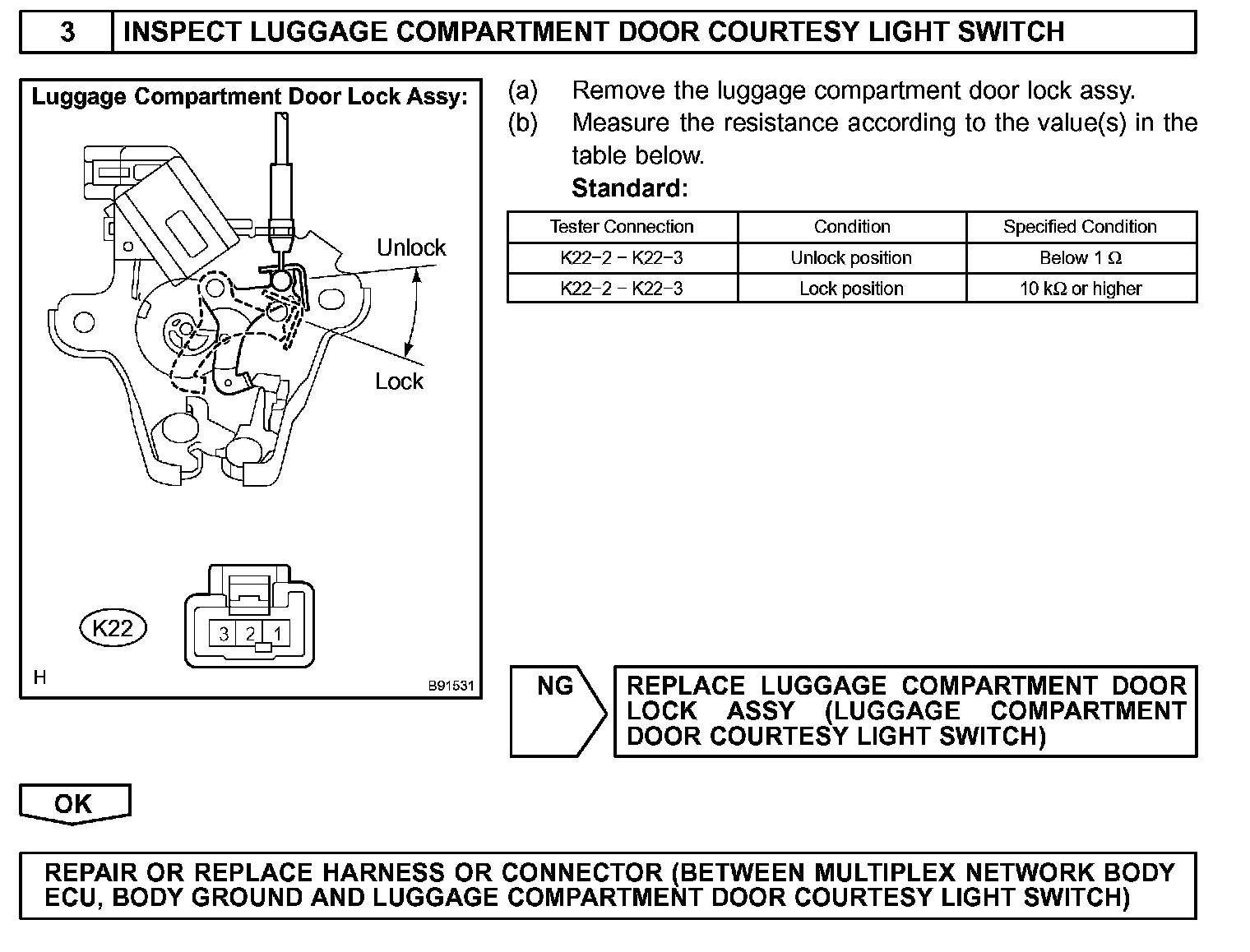

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
