Luggage Compartment Door Opener Motor Circuit

LUGGAGE COMPARTMENT DOOR OPENER MOTOR CIRCUIT

CIRCUIT DESCRIPTION
The multiplex network body ECU operates the luggage compartment door opener motor when a luggage compartment door open (trunk opener) signal from the transmitter is detected.

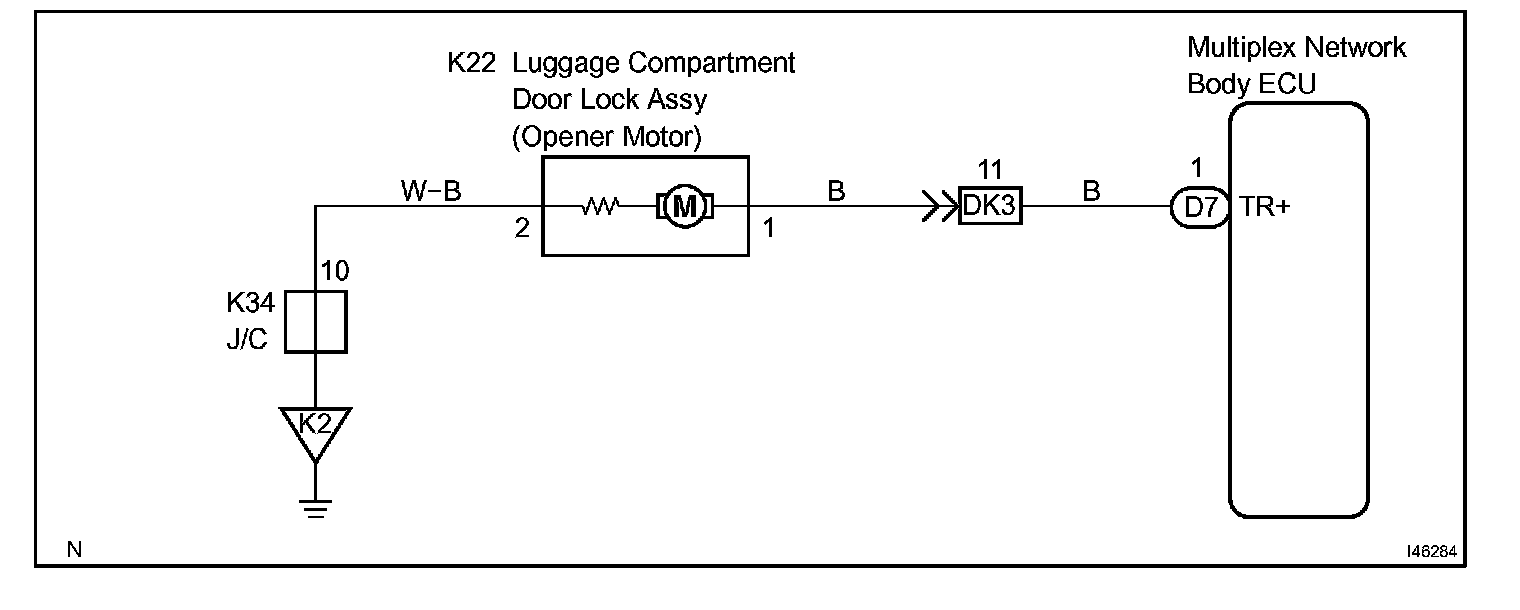

Wiring Diagram:

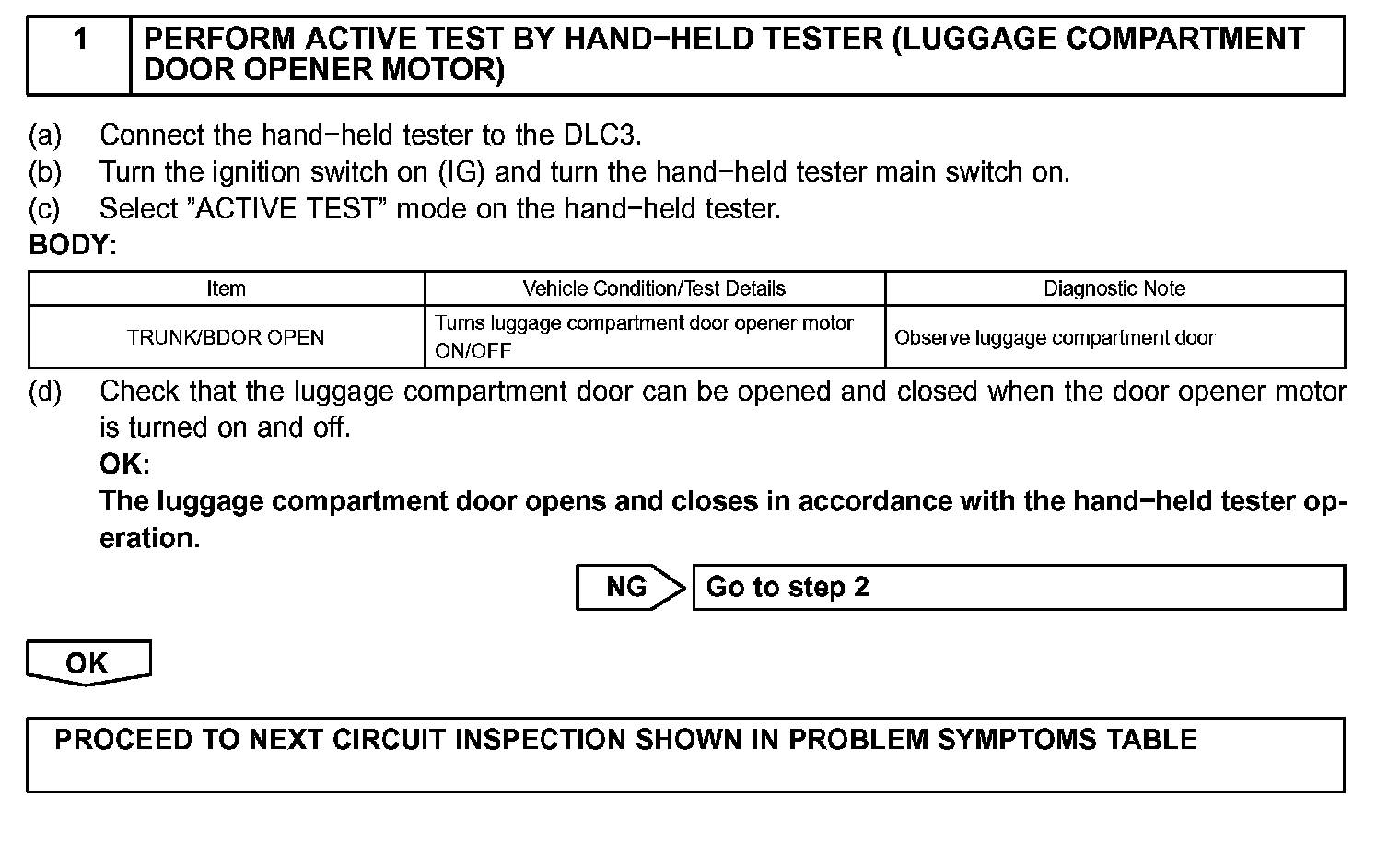

Step 1:

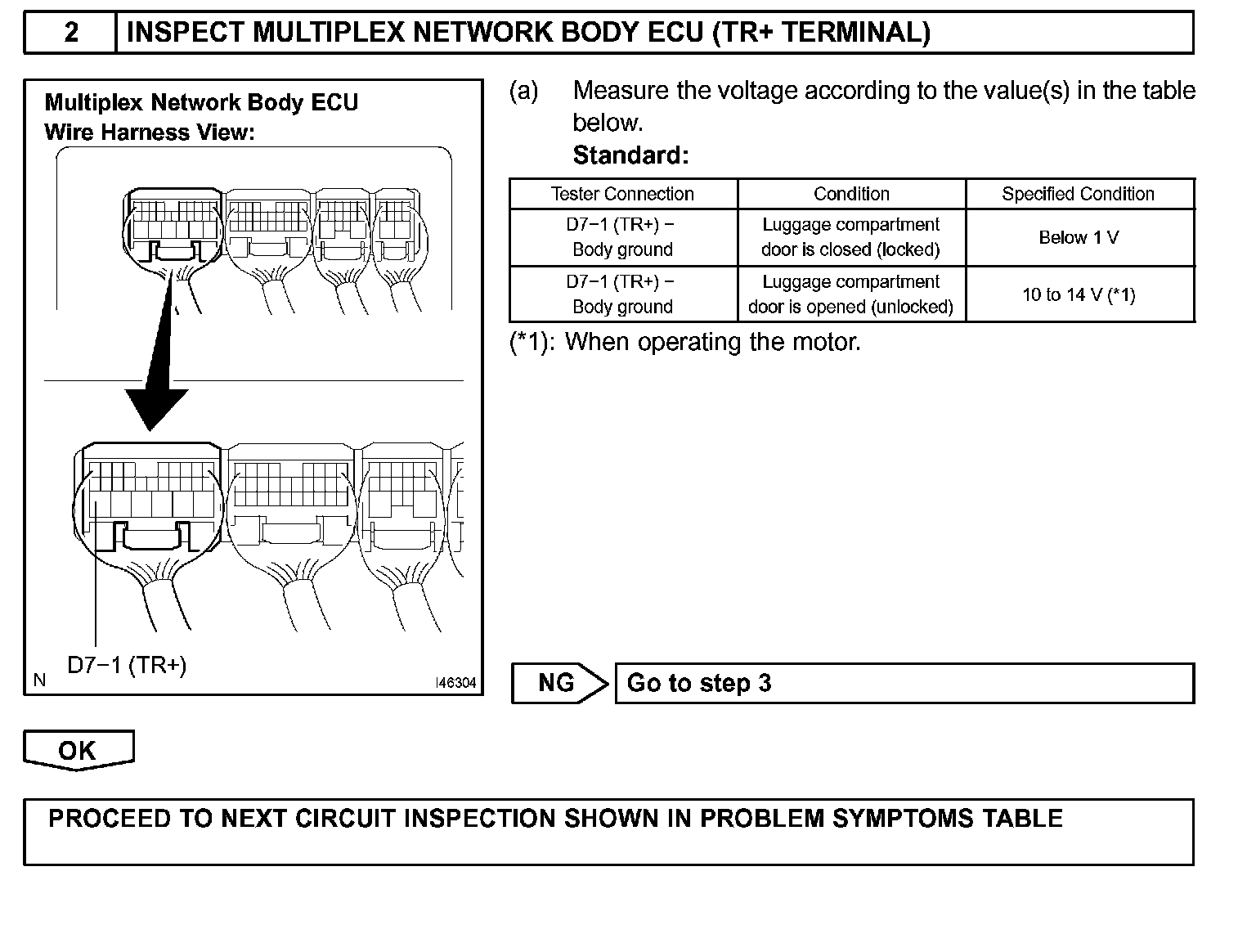

Step 2:

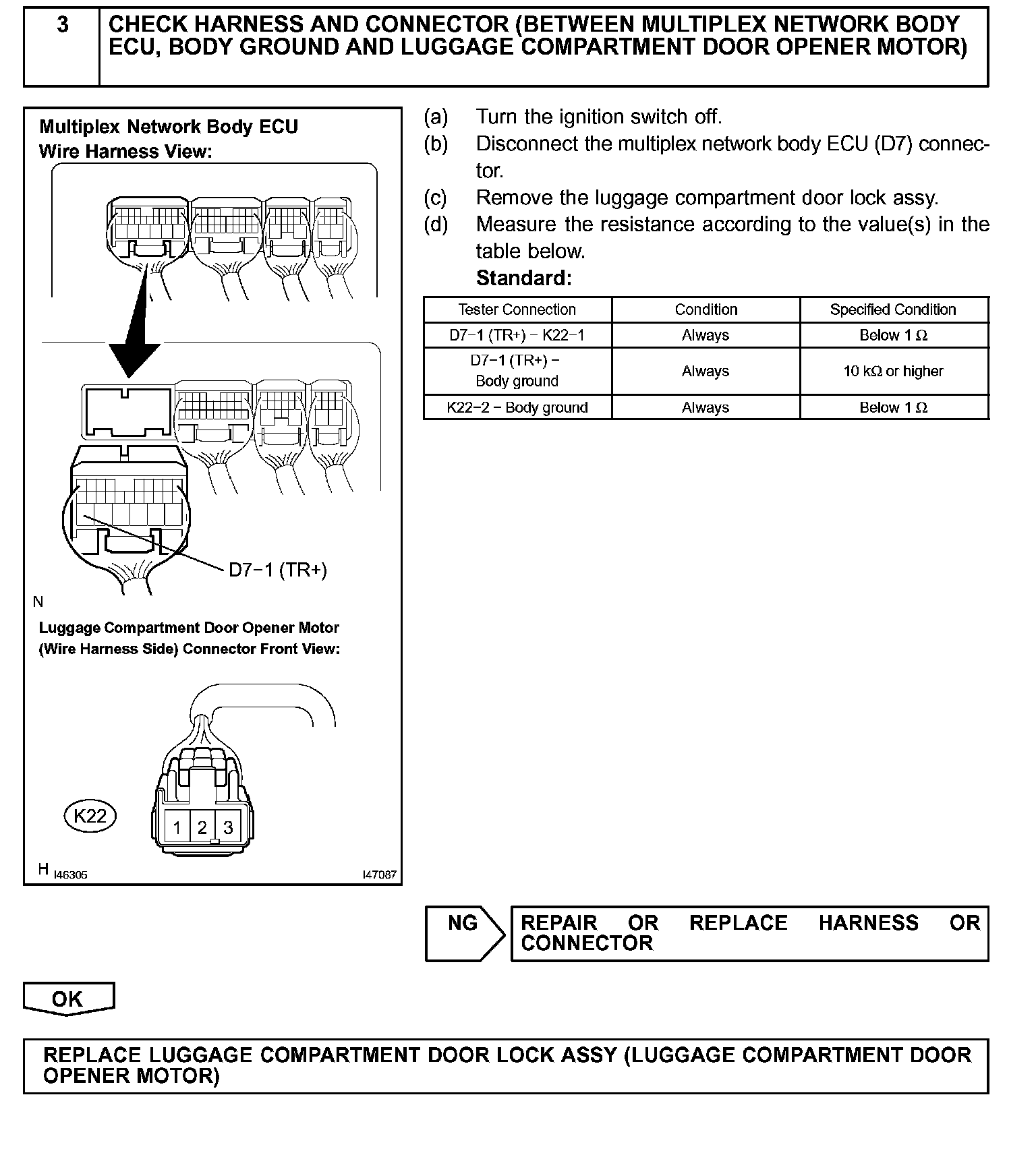

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
