Self-Diagnostic Mode

SELF-DIAGNOSTIC MODE OPERATING IGNITION KEY CYLINDER

a. Switch to self-diagnostic mode.
1. Establish the vehicle's initial conditions.
2. Insert the key into the ignition key cylinder and remove it.
3. Within 5 seconds after the key is removed, reinsert it into the ignition key cylinder.
4. Turn the ignition switch on (IG) then off.
5. Within 30 seconds of turning the ignition switch off, repeat step (4) 9 more times.

HINT:
- Turning the ignition switch on (IG), after step (5) has been completed, will end the self-diagnostic mode.
- Do not lock or unlock doors while performing the self- diagnostic mode.

NOTE: If the change to self-diagnostic mode fails, the system will return to normal mode.

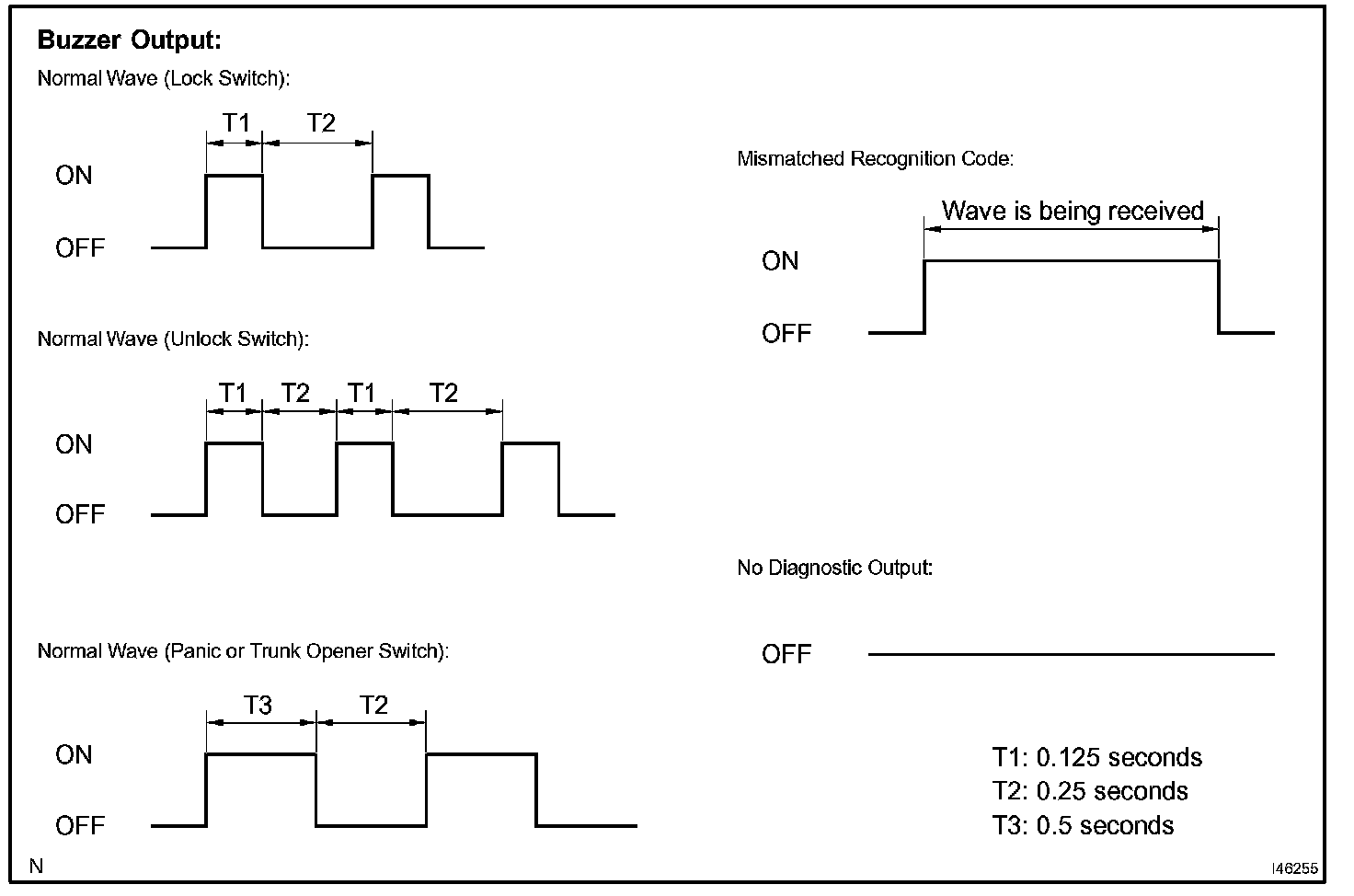

b. Check that the system has switched to self-diagnostic mode by checking the sound pattern of the wireless door lock buzzer.

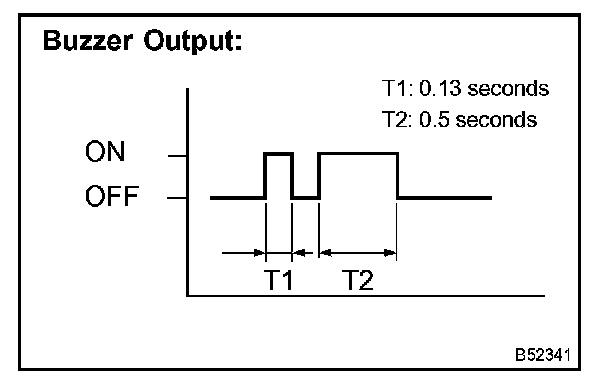

c. Check the diagnostic outputs when the door control transmitter switch is held down. The diagnostic outputs can be checked by listening to the wireless door lock buzzer.

SELF-DIAGNOSTIC MODE
USING HAND-HELD TESTER:
a. Switch to self-diagnostic mode.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG) and turn the hand- held tester main switch on.

HINT: Refer to the hand-held tester operator's manual for further details.
