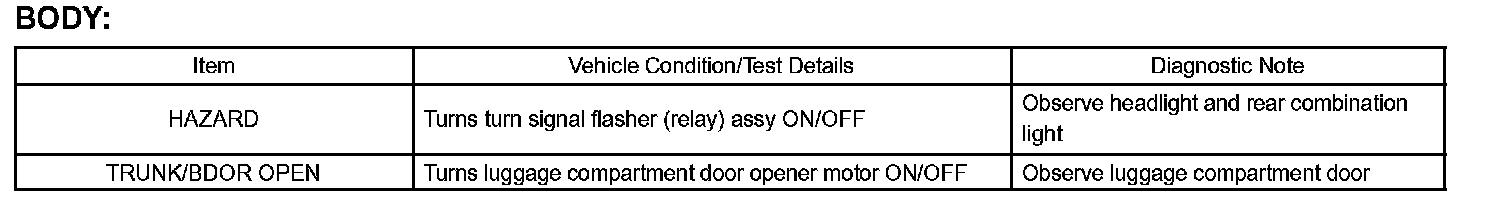

Active List

ACTIVE TEST

HINT: Performing the ACTIVE TEST using the hand-held tester allows components such as the relay, VSV and actuator to operate without part removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.




a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch on (IG).
c. According to the display on the tester, preform the ACTIVE TEST.

HINT: The ignition switch must be turned on (IG) to proceed to the ACTIVE TEST using the hand-held tester.
