Door Courtesy Switch Circuit

DOOR COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION
When an additional transponder key is registered, the transponder key ECU assembly detects the front door courtesy light switch open/close condition, and enters the key registration mode.

Wiring Diagram:

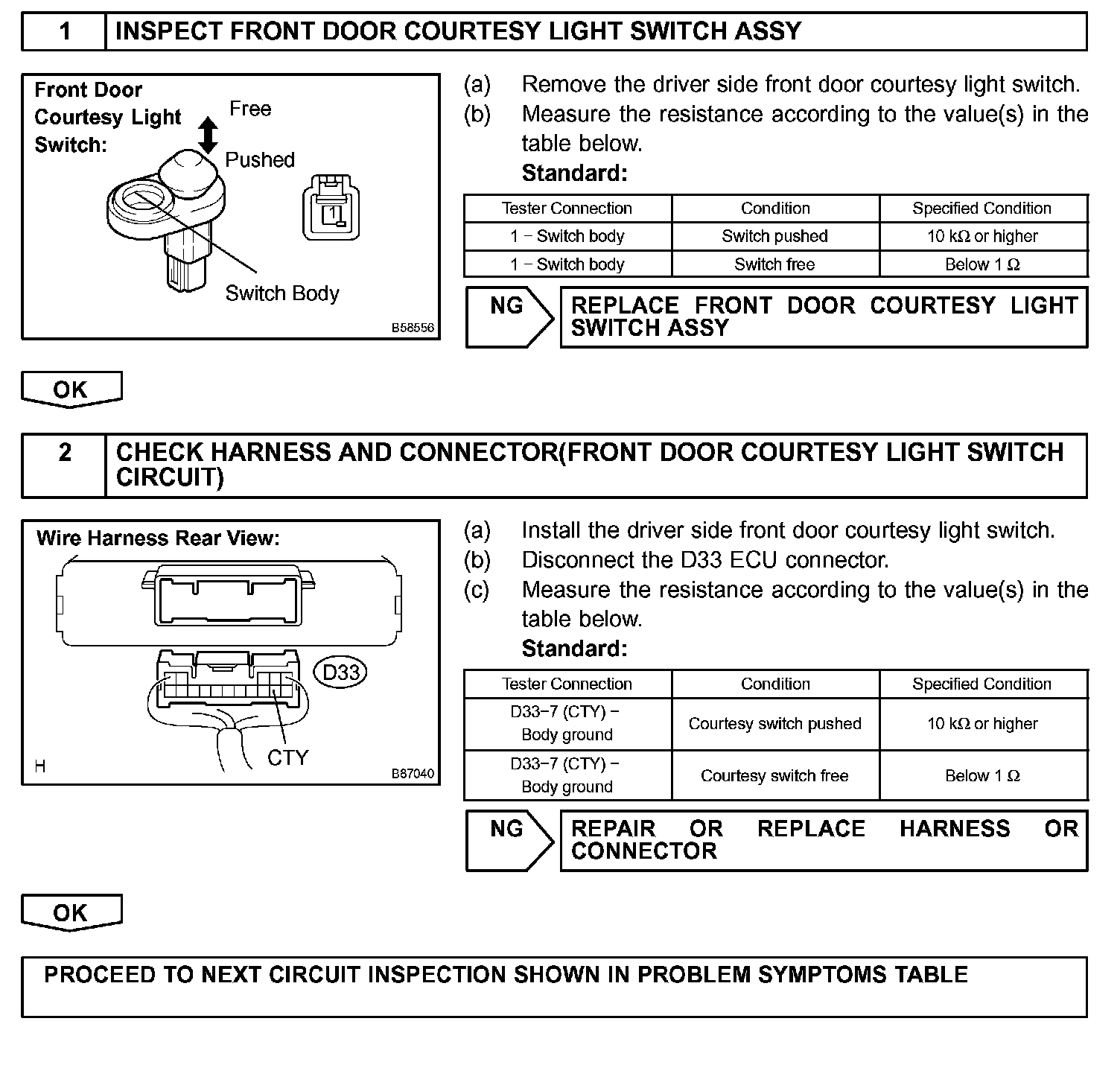

Step 1-2:

INSPECTION PROCEDURE
