ID Code Box Power Source Circuit

ID CODE BOX POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This is the power source circuit of the ID code box.

The ID code box sends immobilizer SET/UNSET signals to the ECM based on the information received from the certification ECU via the LIN communication line.

Wiring Diagram:

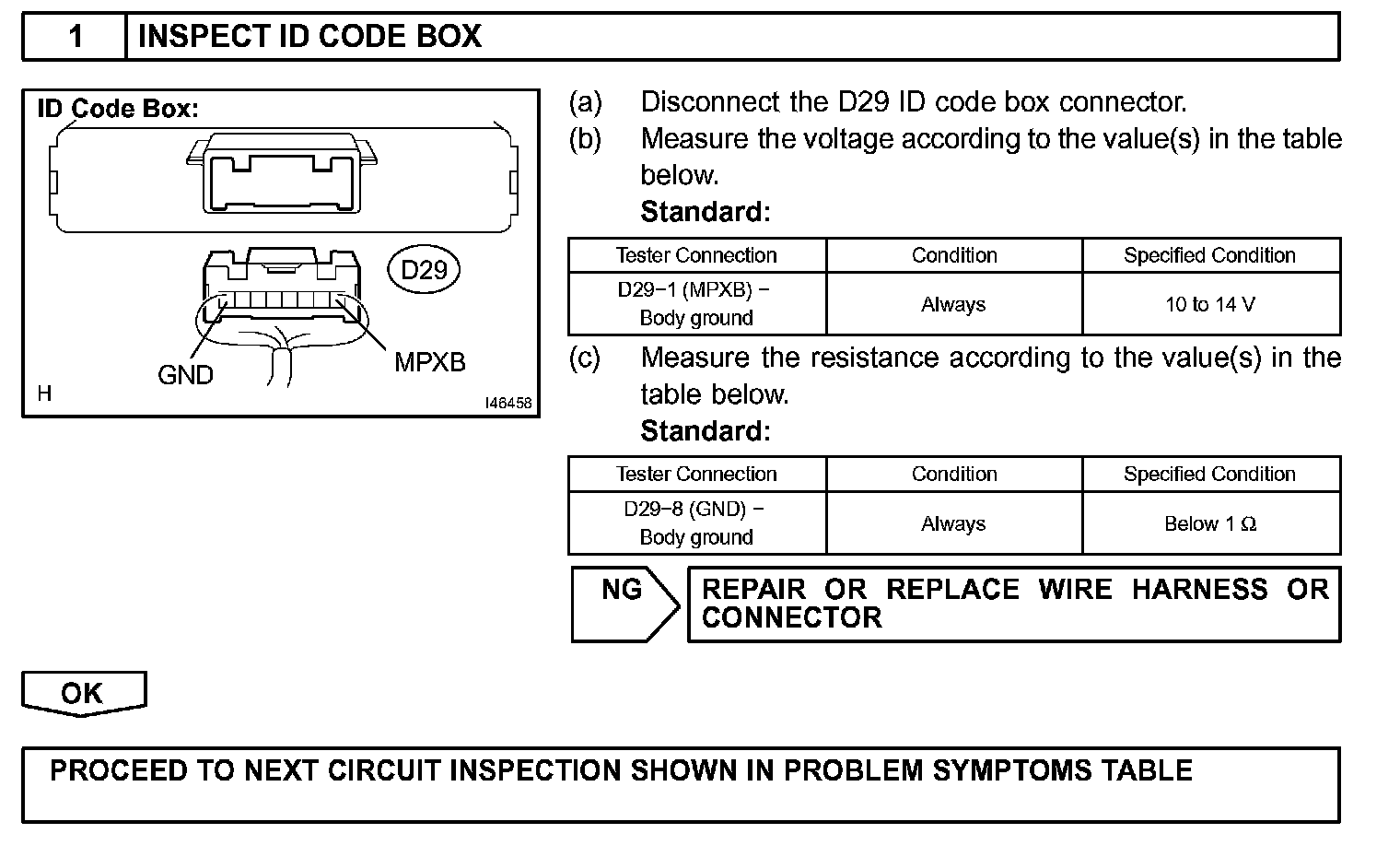

Step 1:

INSPECTION PROCEDURE
