Luggage Compartment Open Switch Circuit
LUGGAGE COMPARTMENT OPEN SWITCH CIRCUITCIRCUIT DESCRIPTION
If the certification ECU detects that the luggage compartment open switch is pressed when the driver is carrying the key or when the key is locked in the luggage compartment door, the certification ECU sends a luggage compartment door open motor drive request signal to the body ECU.

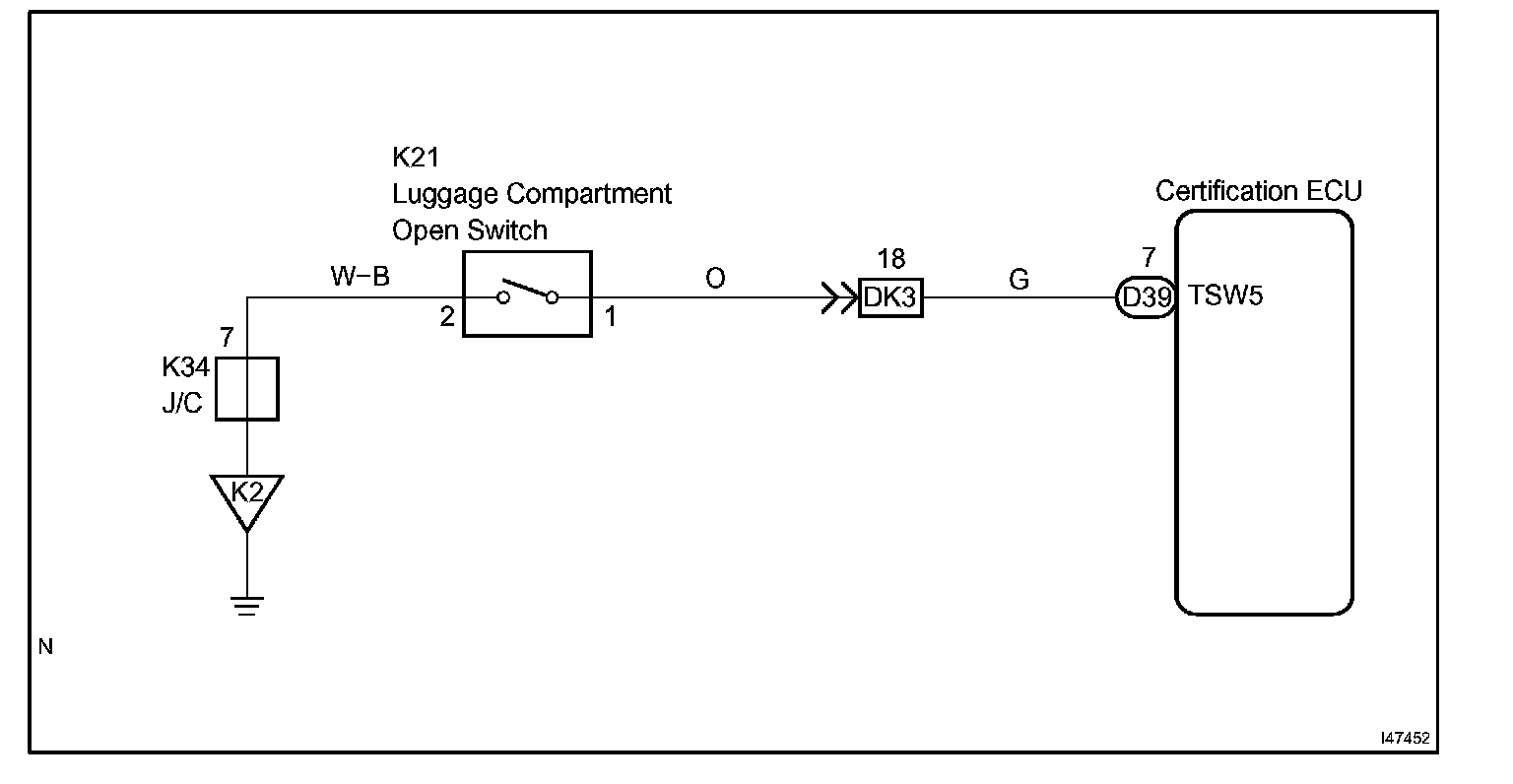

Wiring Diagram:

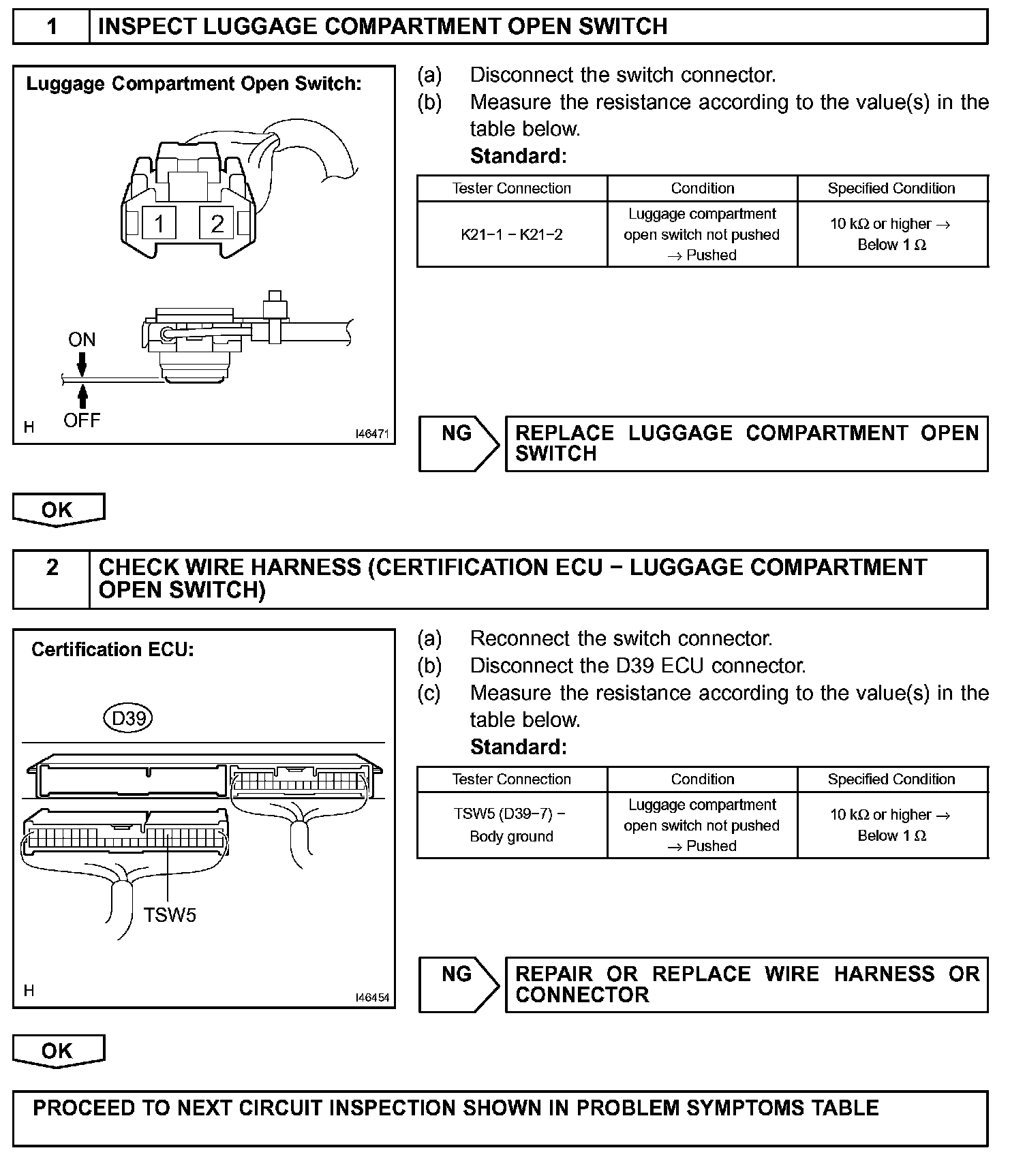

Step 1-2:
INSPECTION PROCEDURE
