Engine Immobilizer System (W/O Smart Key System)

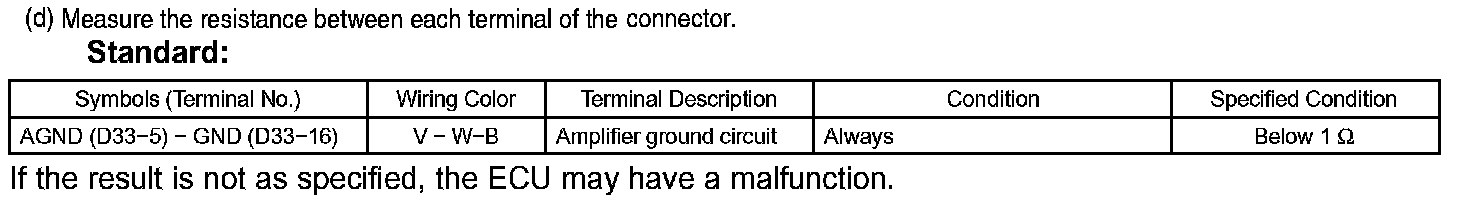

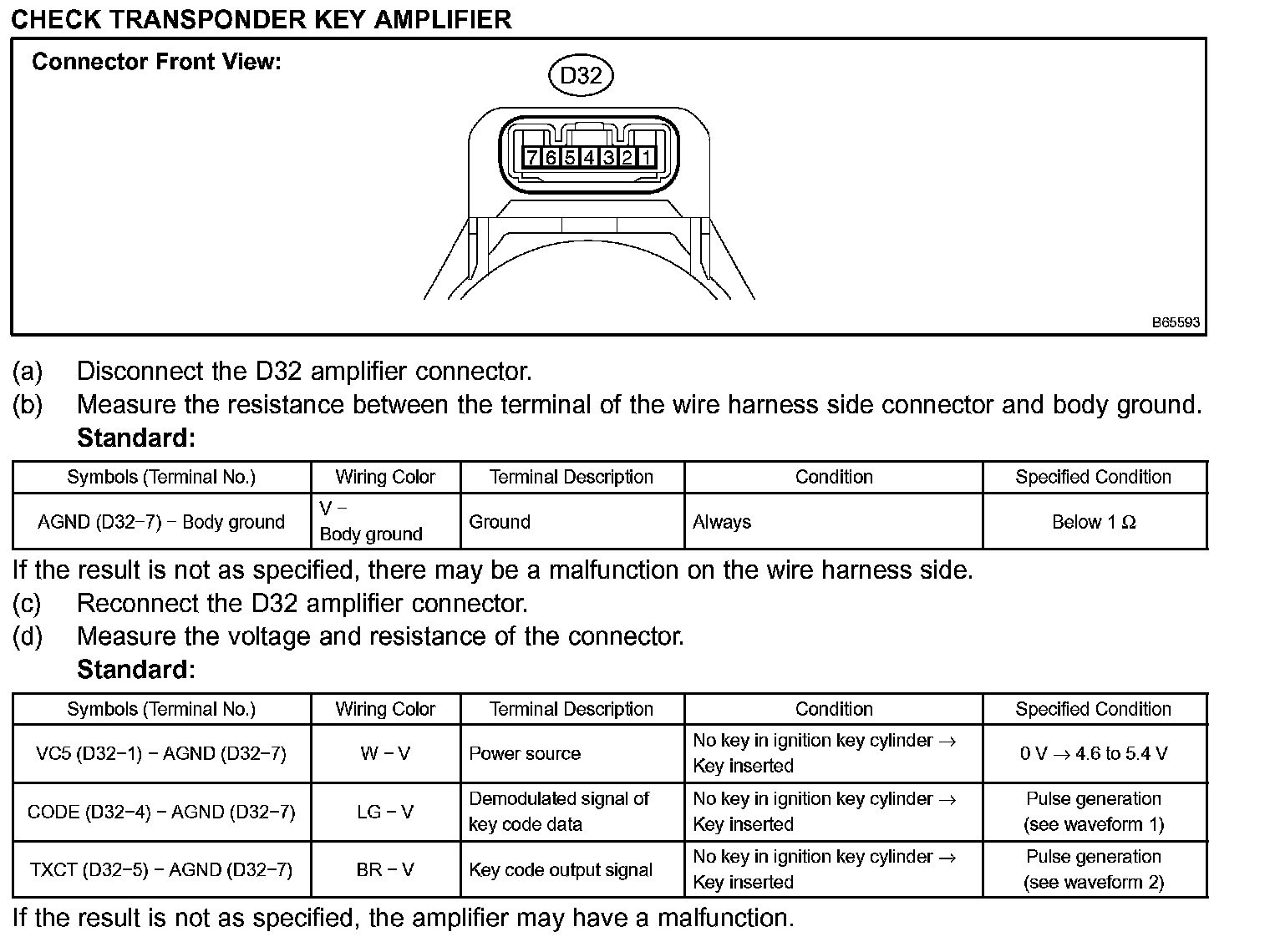

Terminals Of Control Module/Pinouts - Check Transponder Dey Amplifier:

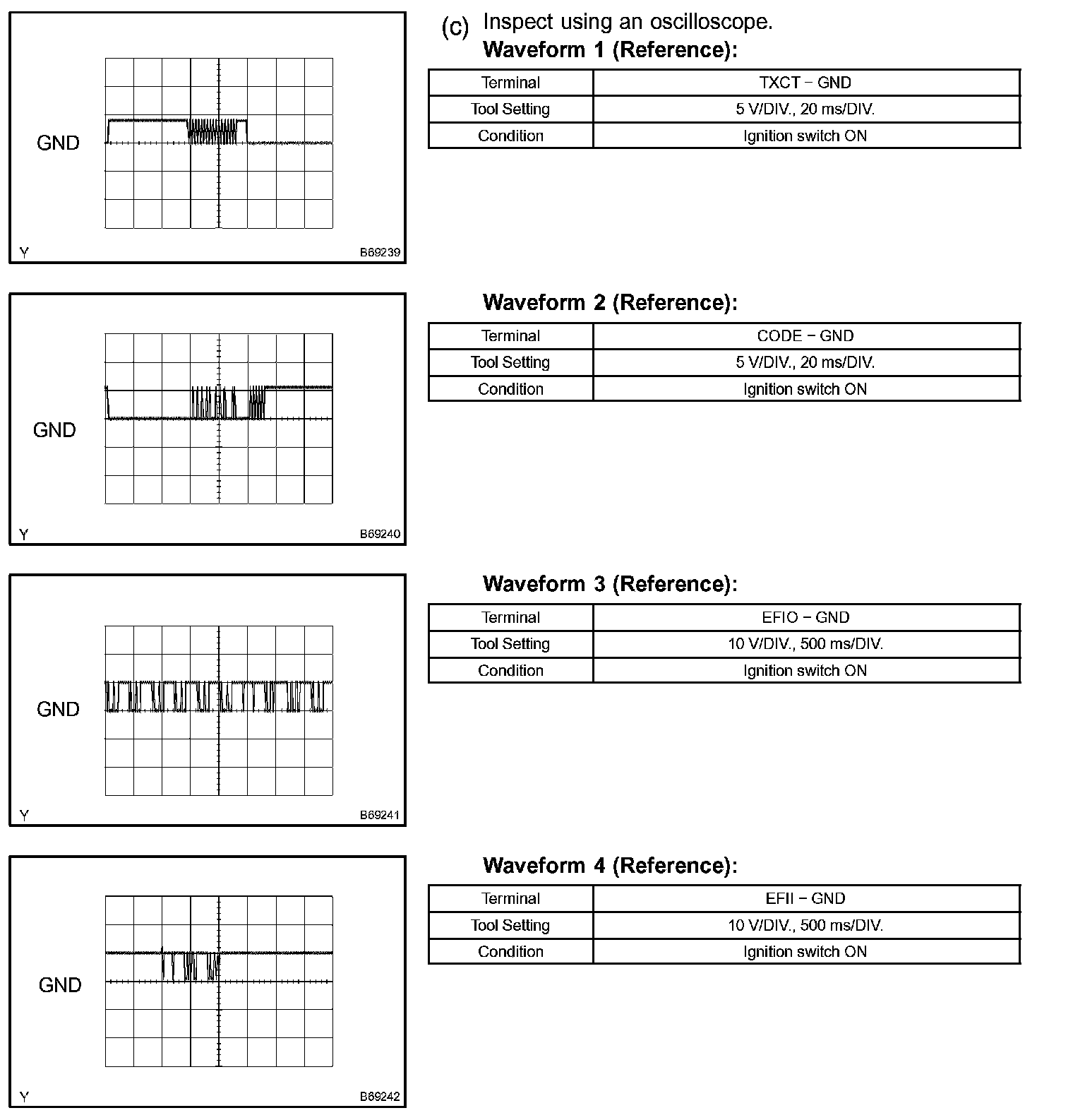

Oscilloscope Waveforms (Part 1):

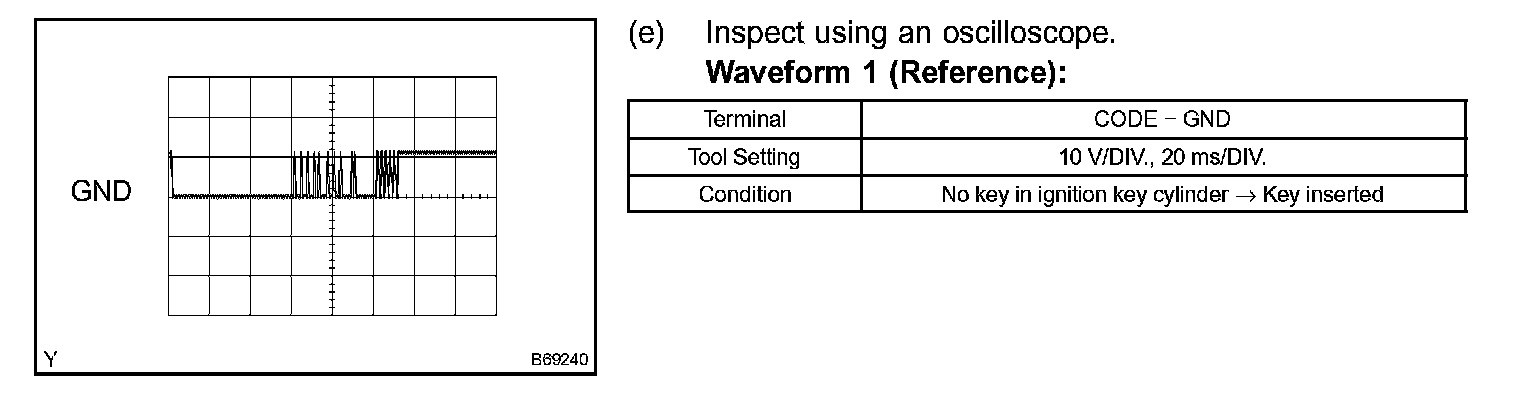

Oscilloscope Waveforms (Part 2):

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assy (Part 1):

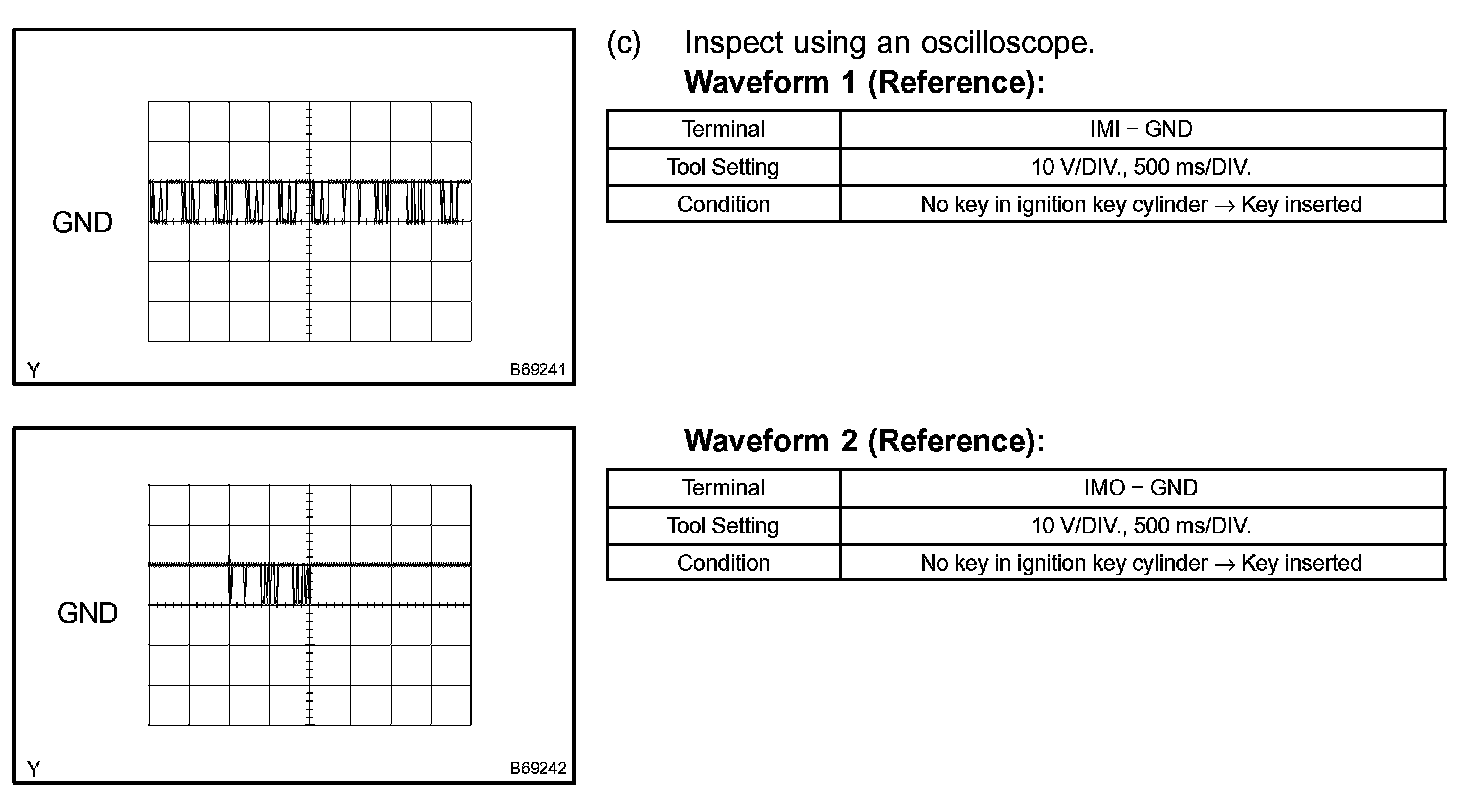

Oscilloscope Waveforms:

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assy (Part 2):

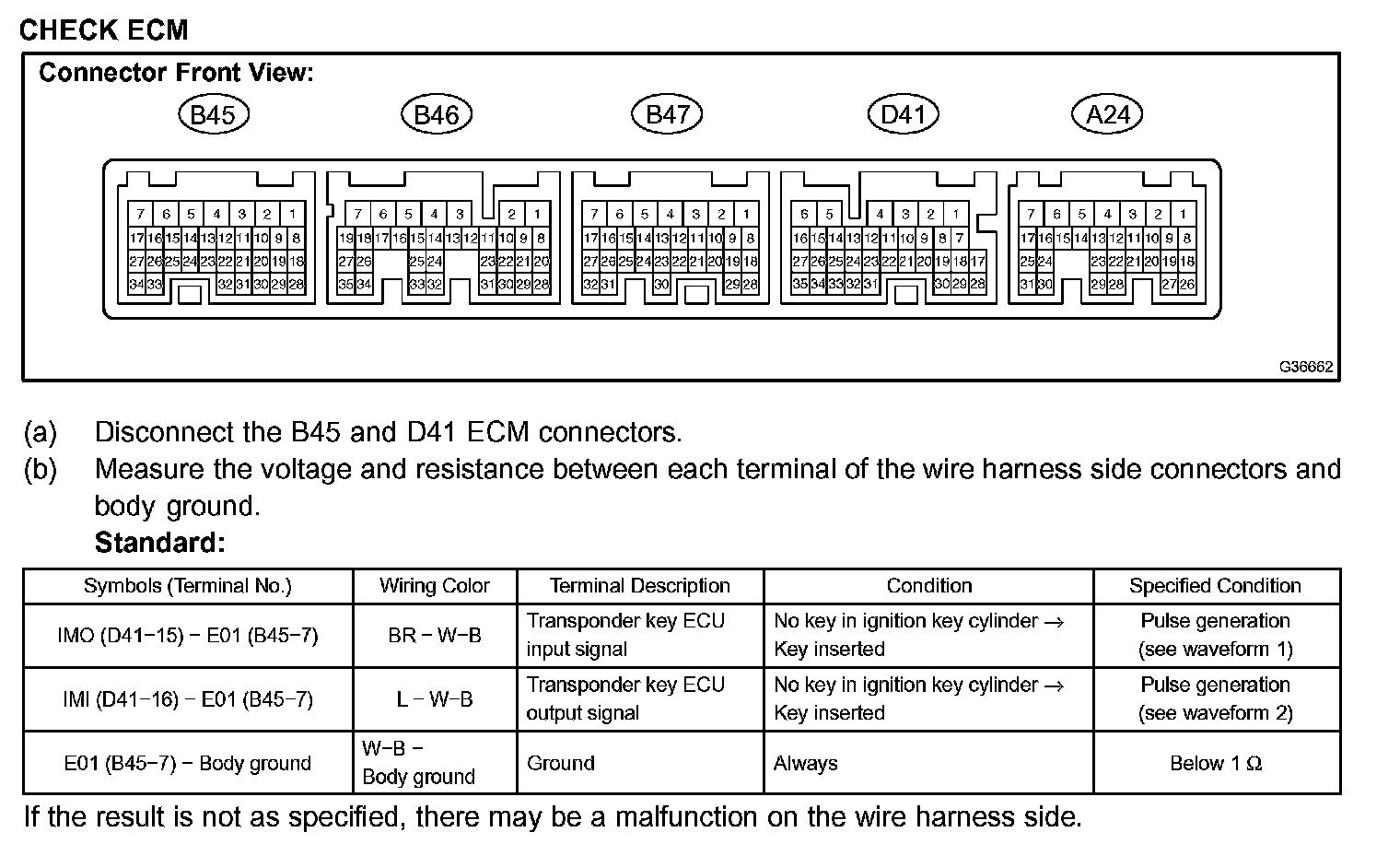

Terminals Of Control Module/Pinouts - Check ECM:

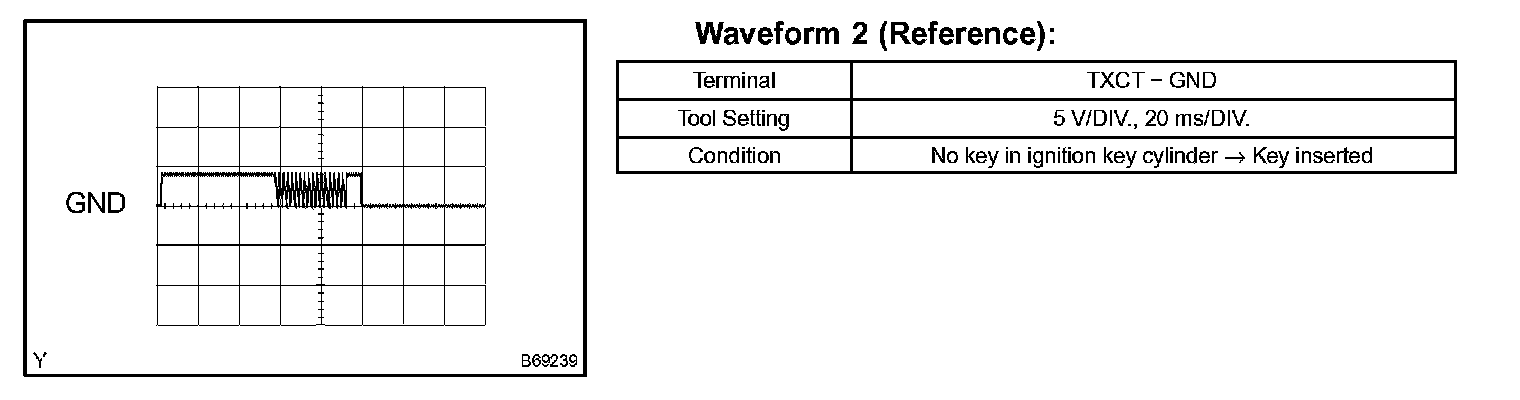

Oscilloscope Waveforms:
