Data List

DATA LIST

HINT: Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in the troubleshooting process is one way to shorten labor time.







a. Connect the hand-held tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch on (IG).

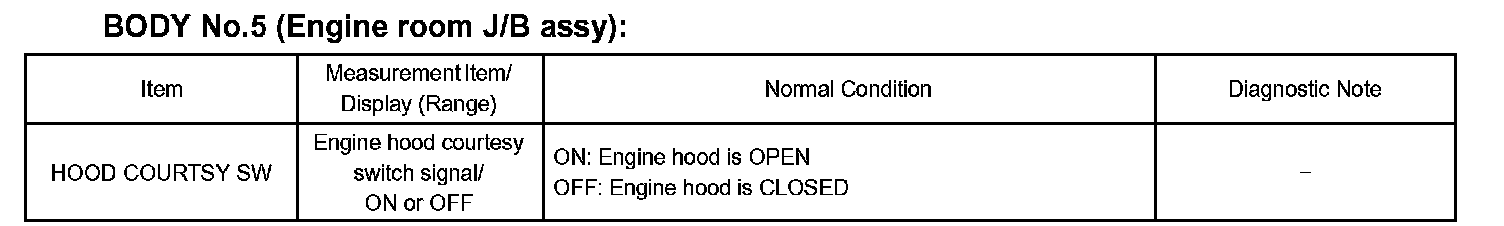

c. Read the DATA LIST following to the display on the tester.
