Steering Pad Switch Circuit

STEERING PAD SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit sends an operation signal from the steering pad switch assembly to the radio receiver assembly.

If there is an open in the circuit, the navigation system cannot be operated by the steering pad switch assembly.

If there is a short in the circuit, the resulting condition is the same as if the switch were continuously depressed. Therefore, the navigation system cannot be operated by the steering pad switch assembly, and the radio receiver assembly itself cannot function.

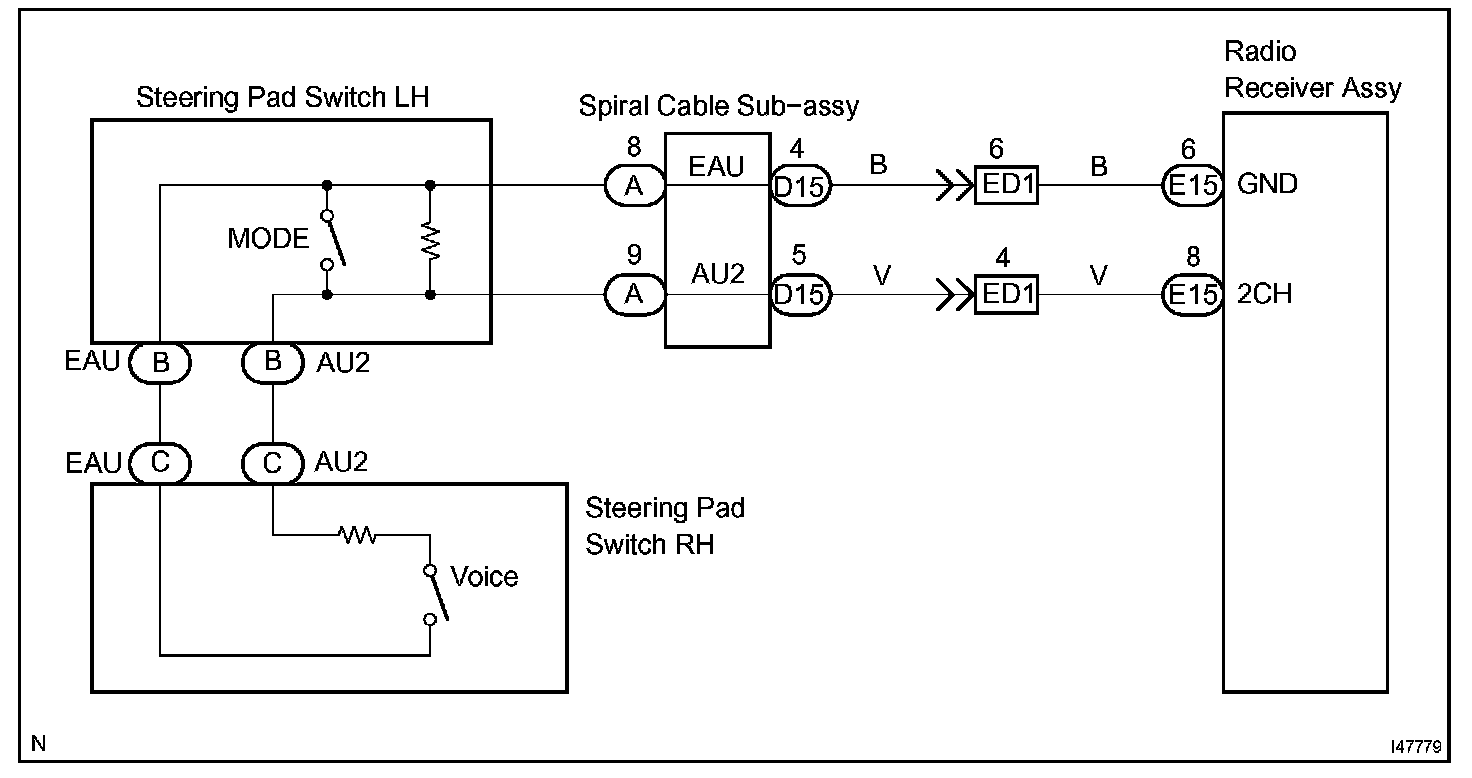

Wiring Diagram:

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the Supplemental Restraint System.
