System Description

SYSTEM DIAGRAM

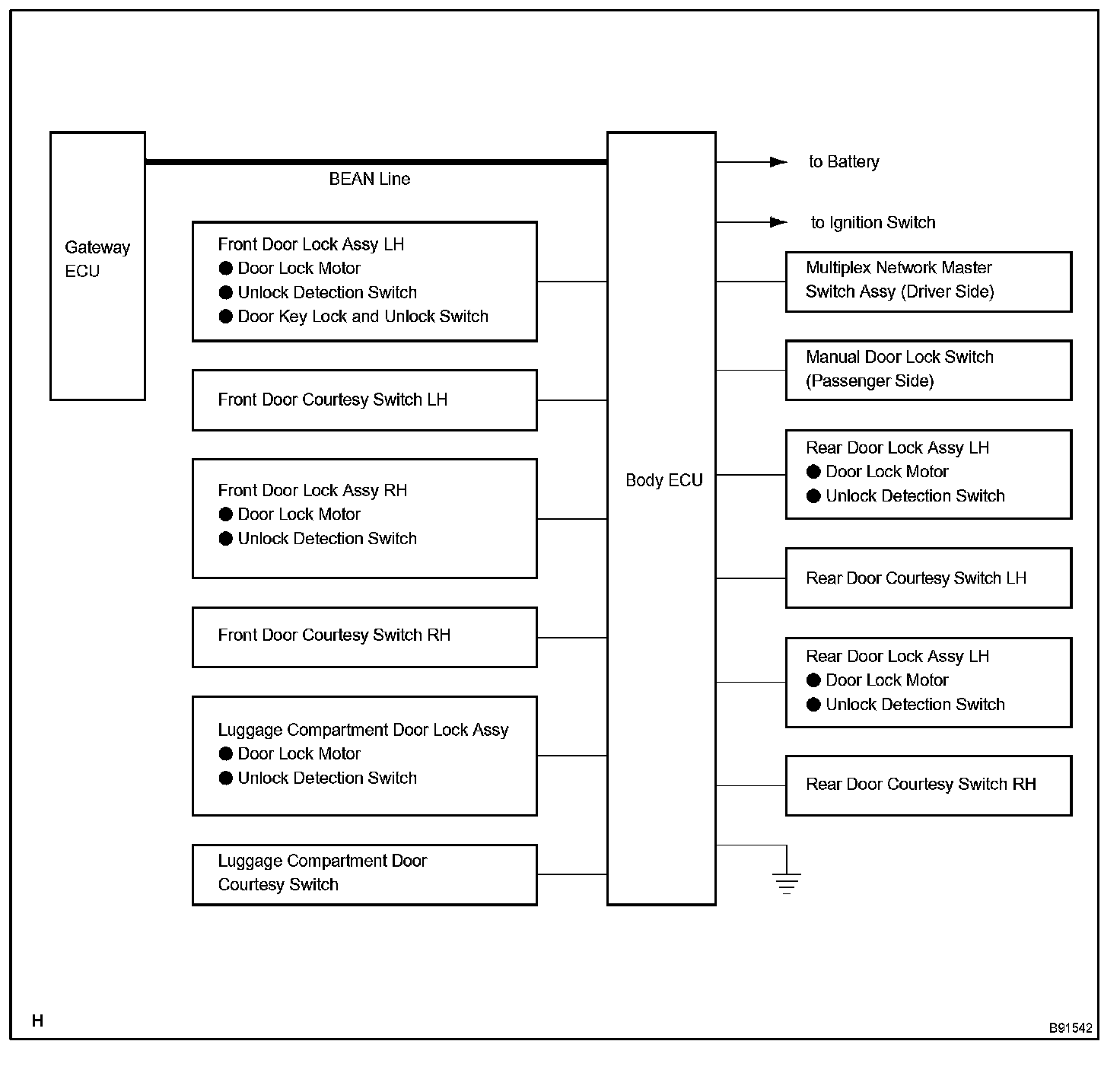

System Diagram:

SYSTEM DESCRIPTION

1. POWER DOOR LOCK SYSTEM DESCRIPTION
a. The power door lock system locks/unlocks all doors with a one-touch operation.
- The door control switch of the master switch assembly on the driver's door and the driver's door key cylinder send lock/unlock request signals to each door lock motor assembly through the body ECU.
- The door control switch on the passenger door sends lock/unlock request signals to each door lock motor assembly through the body ECU.

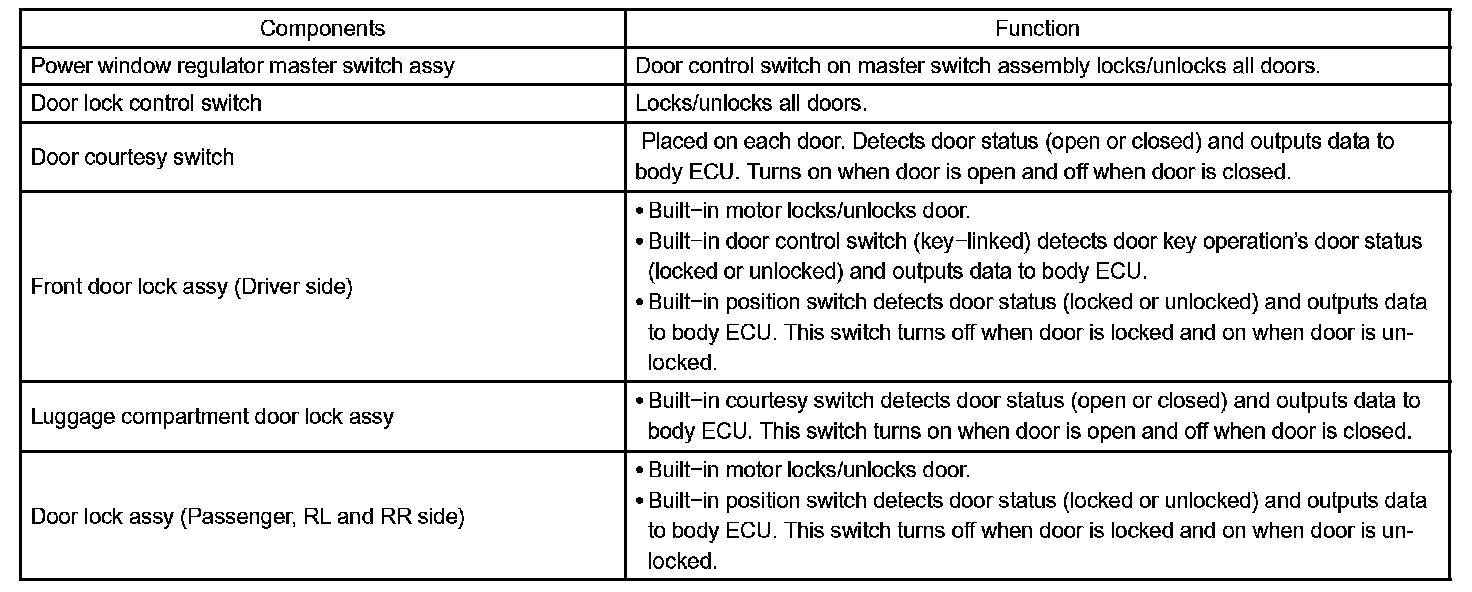

b. Components

Part 1:

Part 2:

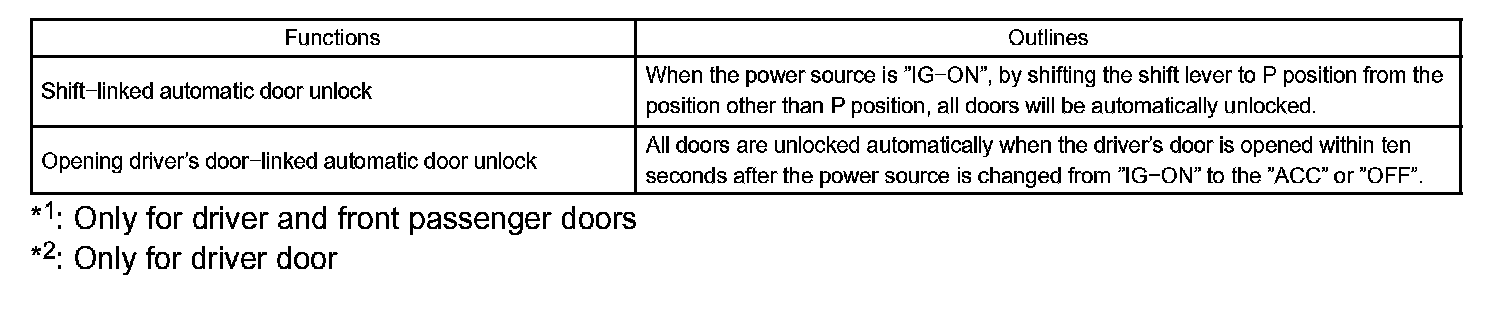

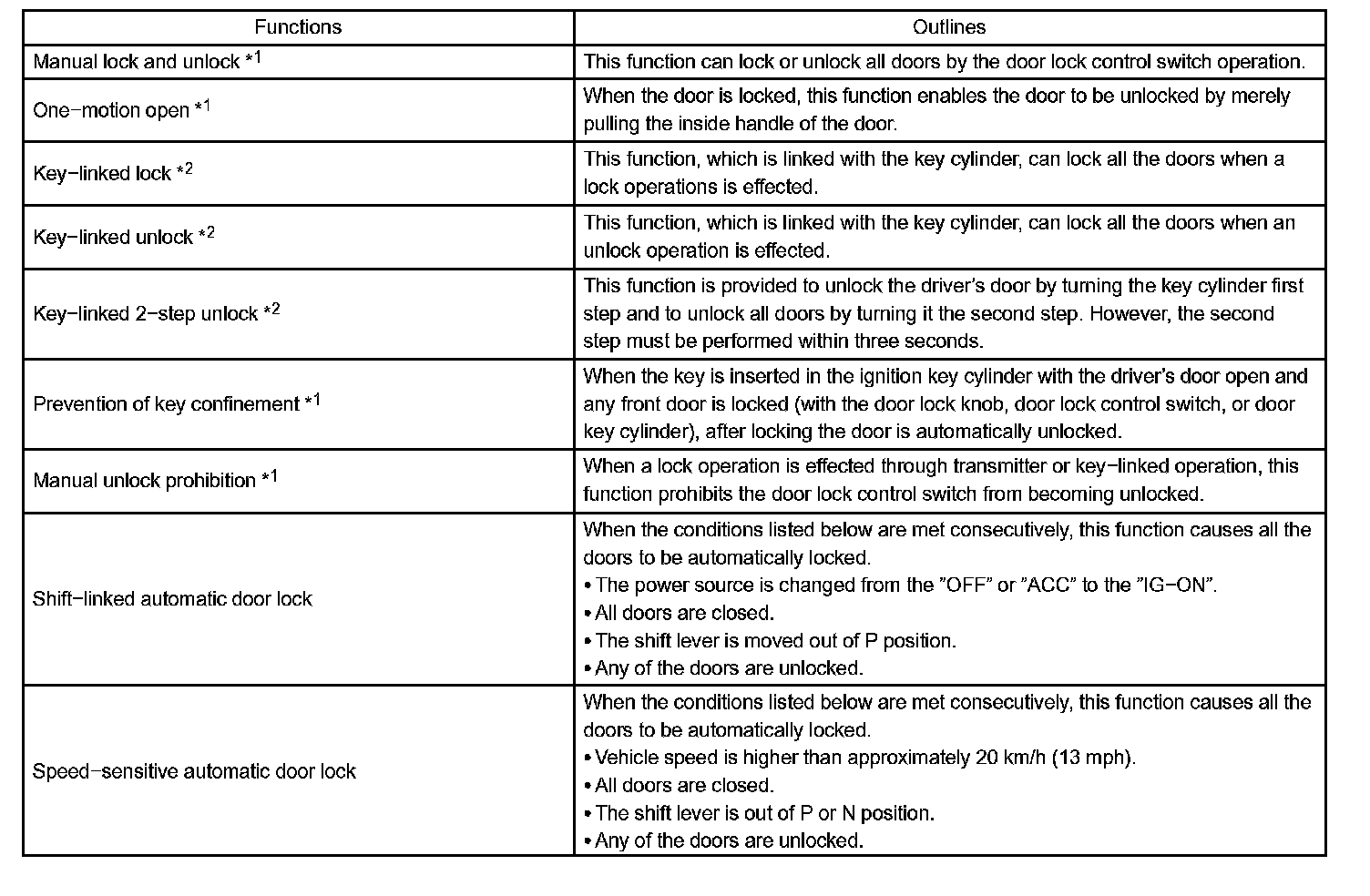

c. Functions
