Body - Automatic Door Lock/Unlock Functions

PRODUCT GENERAL INFORMATION
PG009-05

August 4, 2005

Title:
AUTOMATIC DOOR LOCK/UNLOCK FUNCTIONS

Models:
'06 Avalon

Introduction

2006 model year Avalon vehicles equipped with automatic transmission and power door locks feature Automatic Door Locking (ADL) and Automatic Door Unlocking (ADU) functions. The door locks can be set to lock and unlock linked with the shift position. Details on the automatic door lock and unlock functions can be found in the Owner's Manual.

To standardize the ADL and ADU functions across all model lines, the ADL default settings from the factory should be confirmed and the ADU set during Pre-Delivery Service (PDS). The factory default setting automatically locks all doors when the shift lever is moved out of the "P" position.

Applicable Vehicles
^ 2006 model year Avalon vehicles.

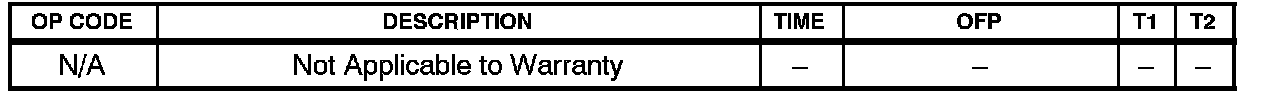

Warranty Information

Automatic Door Lock Procedure

Perform the following procedure to set the automatic door locking function (ADL).

1. Set the parking brake.

2. Move the shift lever into the "P" position and close all doors.

3. Turn the ignition switch to the "ON" position.

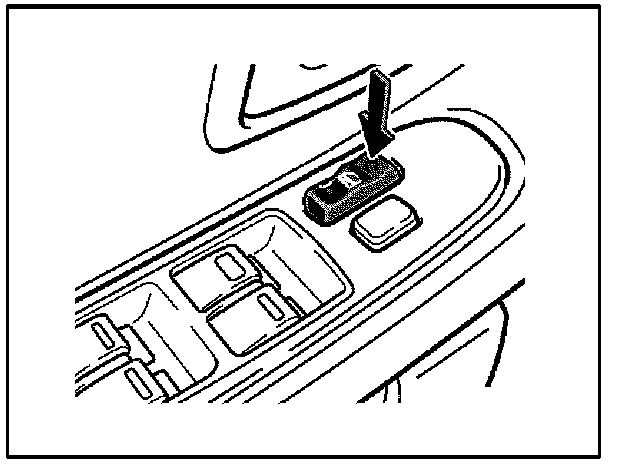

4. Within 10 seconds after the ignition switch is turned to the "ON" position, push and hold the front side (lock position) of the driver's side power door lock switch for 5 seconds and then release.

The doors will then lock and unlock to indicate that the function is set.

Automatic Door Unlock Procedure

Perform the following procedure to set the automatic door unlocking function (ADU).

1. Set the parking brake.

2. Move the shift lever into the "P" position and close all doors.

3. Turn the ignition switch to the "ON" position.





4. Within 10 seconds after the ignition switch is turned to the "ON" position, push and hold the rear side (unlock position) of the driver's side power door lock switch for 5 seconds and then release.

The doors will then lock and unlock to indicate that the function is set.
