Door Courtesy Switch Circuit (Driver Door)

DOOR COURTESY SWITCH CIRCUIT (DRIVER DOOR)

CIRCUIT DESCRIPTION
The door courtesy turns on when the door is opened and turns off when the door is closed.

The body ECU detects the condition of the door courtesy switch.

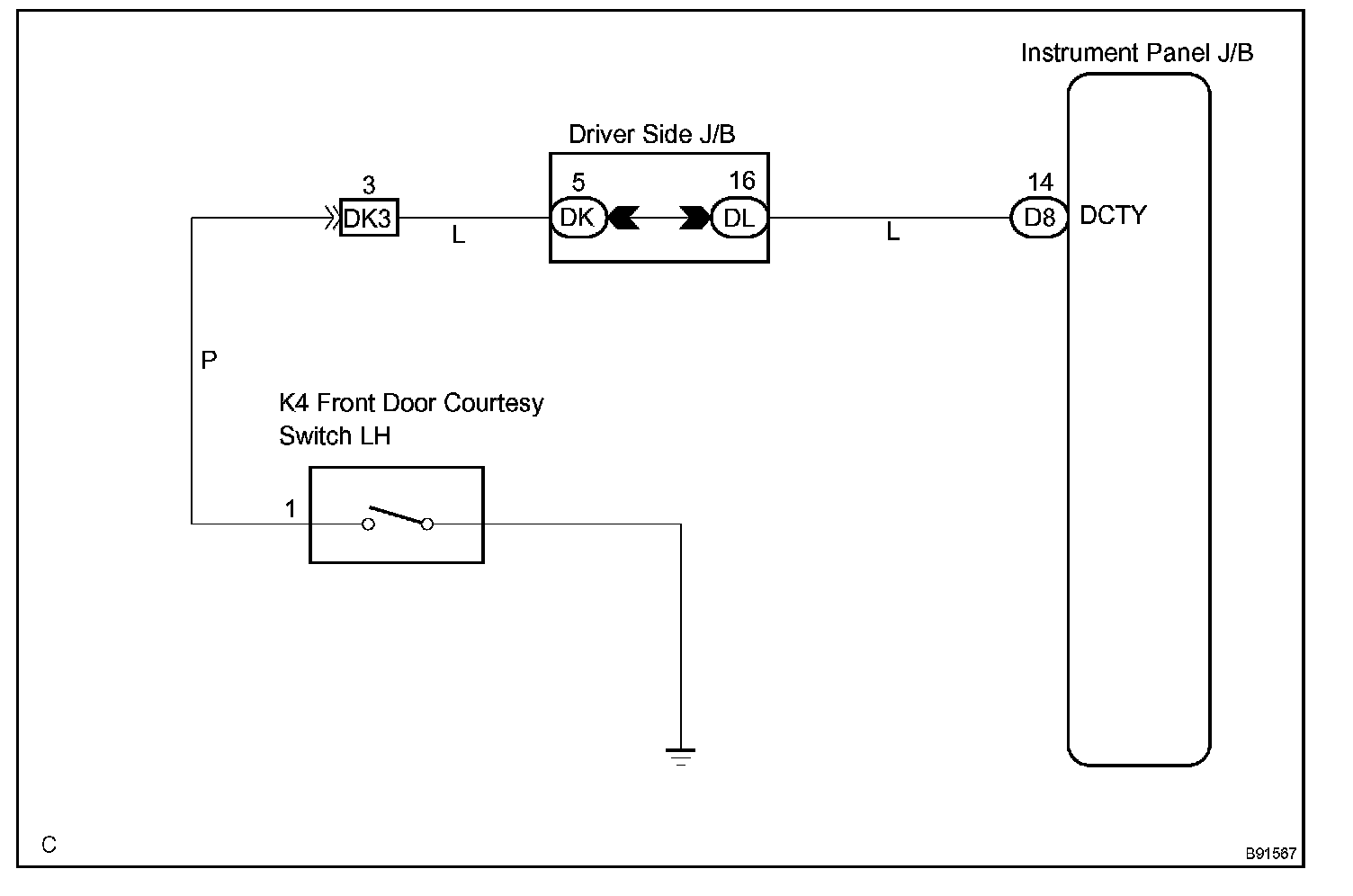

Wiring Diagram:

Step 1-2:

Step 3:

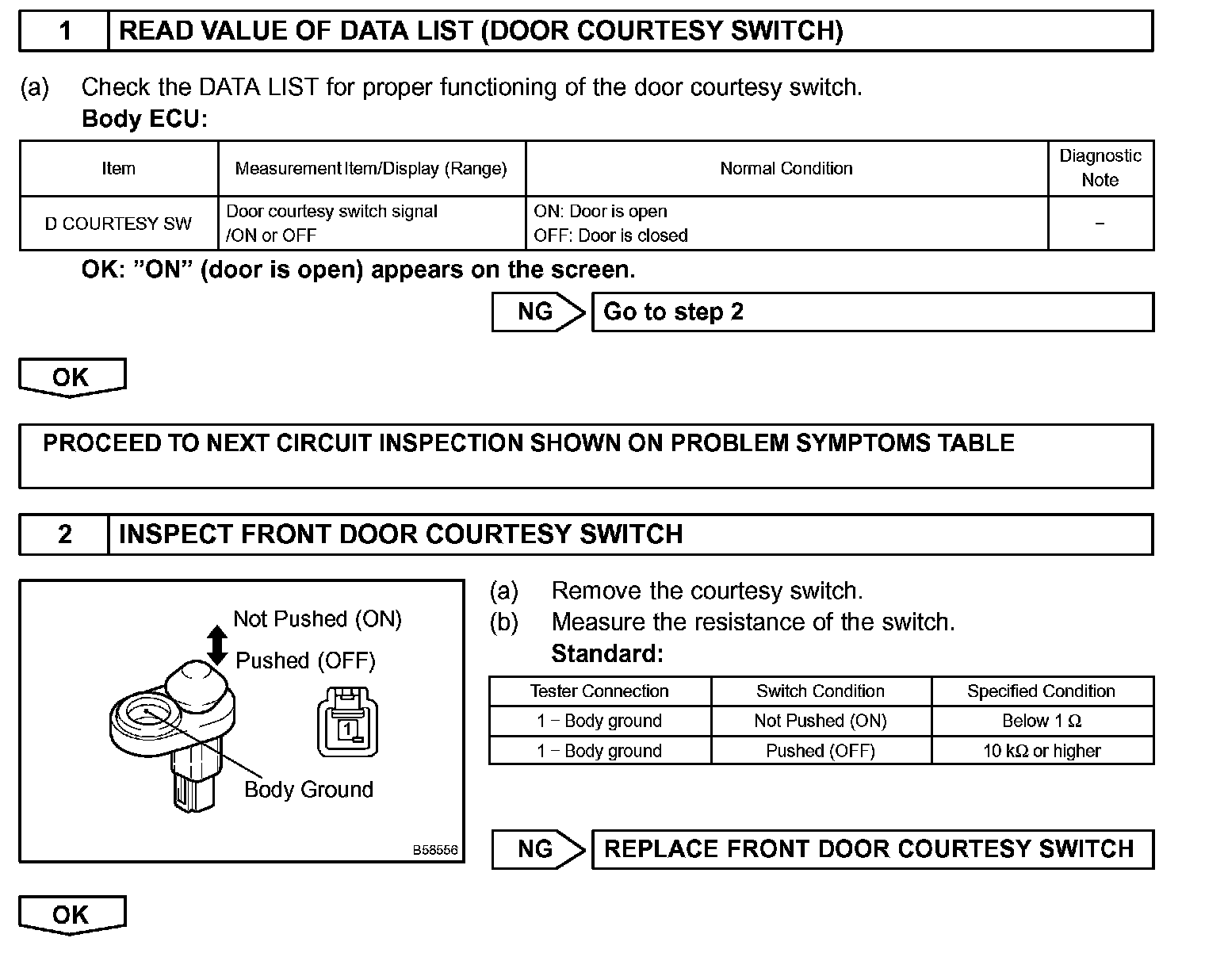

INSPECTION PROCEDURE
