Door Lock Motor Circuit (Luggage Compartment Door)

DOOR LOCK MOTOR CIRCUIT (LUGGAGE COMPARTMENT DOOR)

CIRCUIT DESCRIPTION
The door lock motor is built in the luggage compartment door lock assembly.

The body ECU receives the driver door lock switch signal from the master switch and operates the door lock motor.

Wiring Diagram:

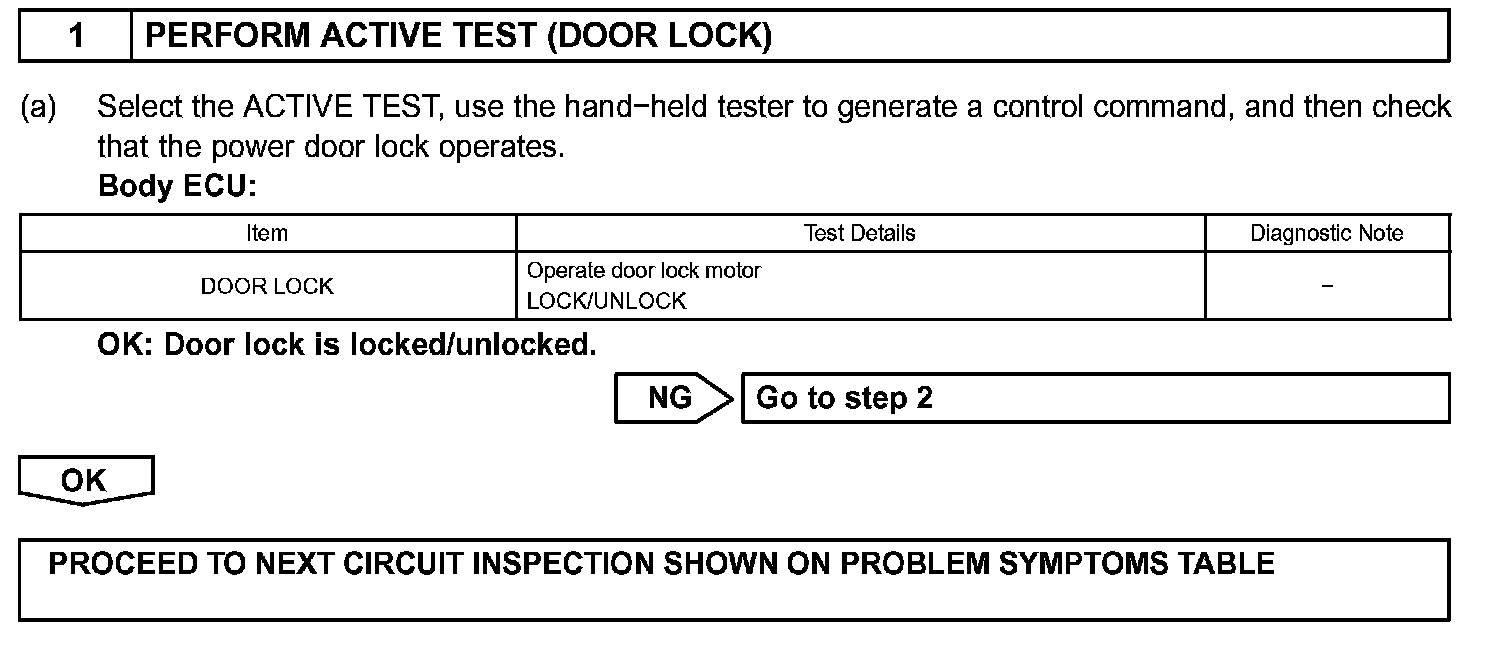

Step 1:

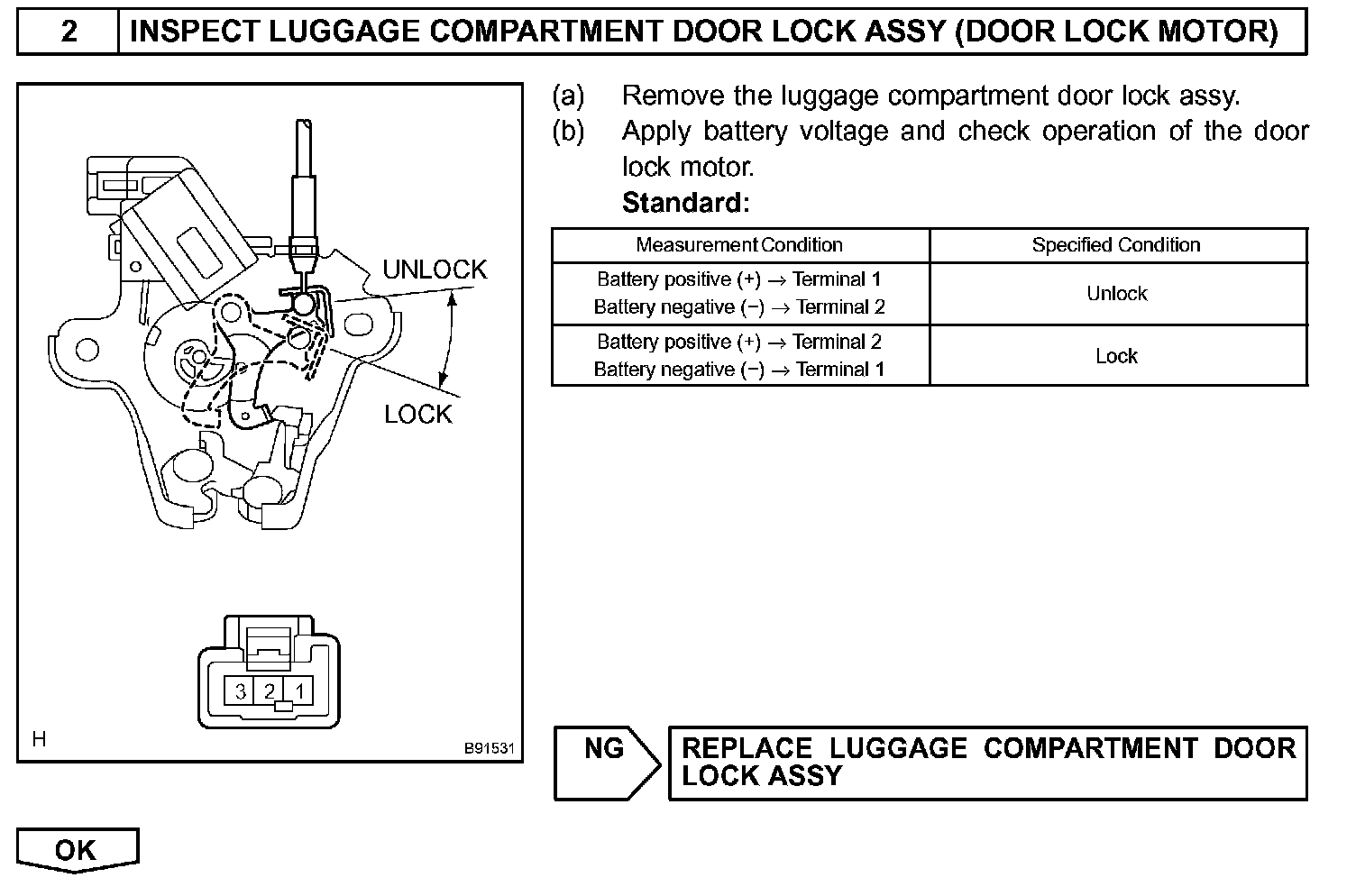

Step 2:

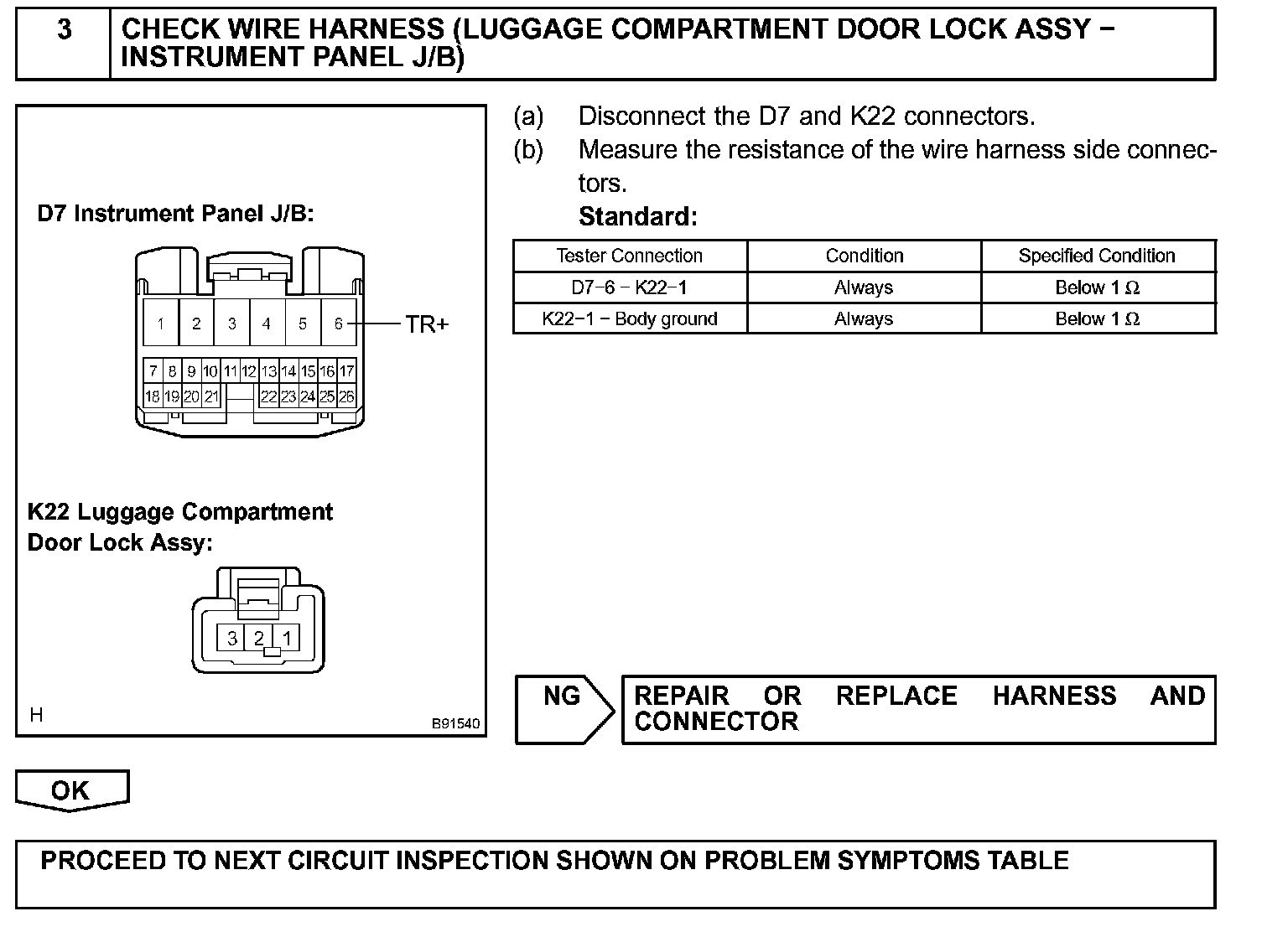

Step 3:

INSPECTION PROCEDURE
