Component Tests

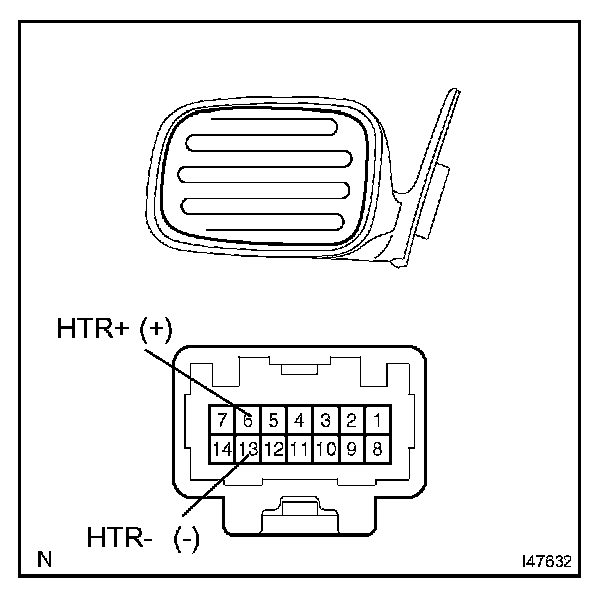

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the outer rear view mirror assembly LH connector.

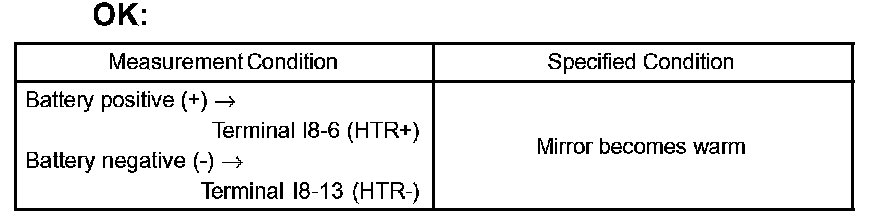

b. Apply battery voltage and check operation of the mirror heater.

HINT: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

If the result is not as specified, replace the mirror assembly.







INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a. Disconnect the outer rear view mirror assembly RH connector.
b. Apply battery voltage and check operation of the mirror heater.

HINT: While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

If the result is not as specified, replace the mirror assembly.
