Signal Communication Table
Signal Communication Table

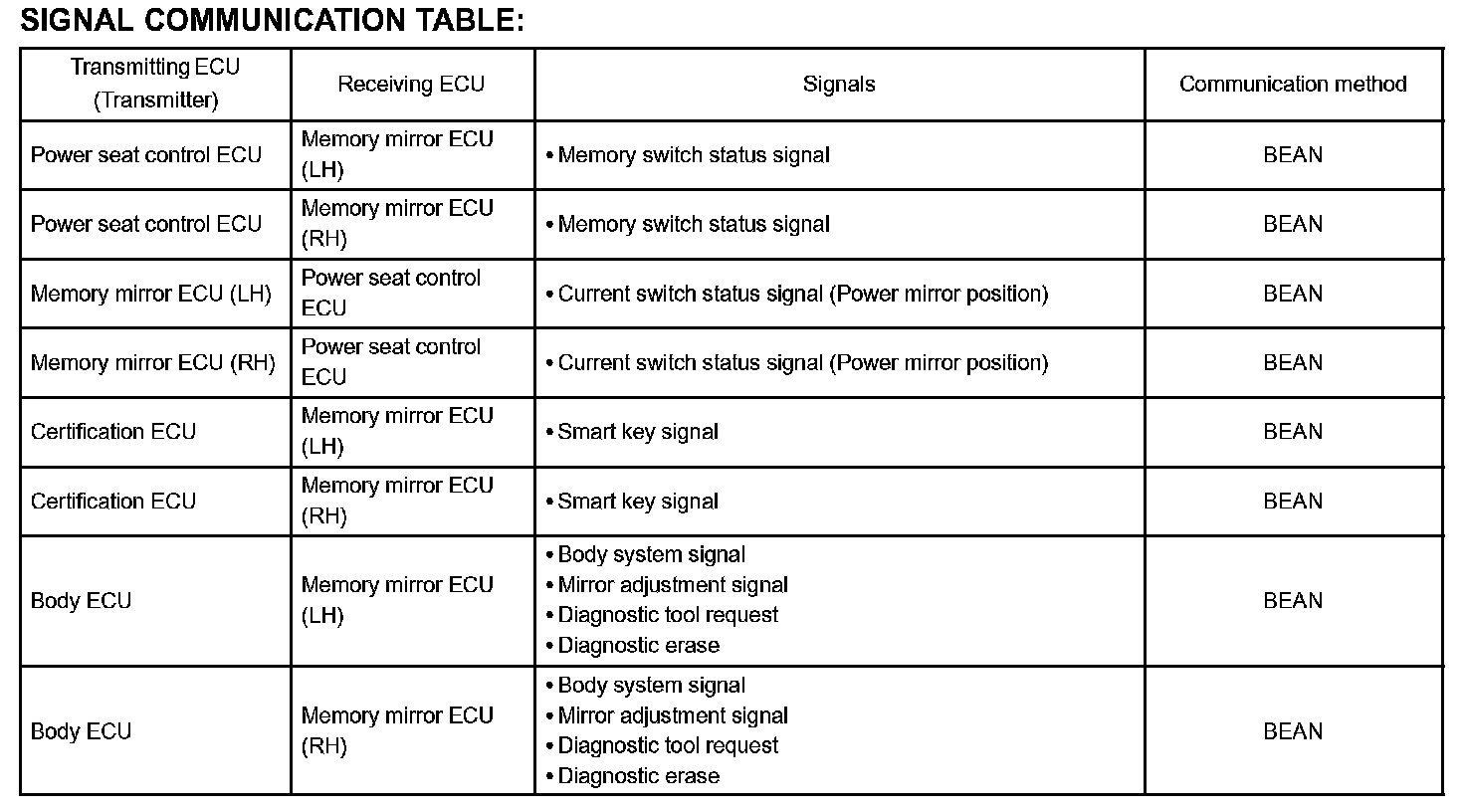

Power Mirror Control System - Signal Communication Table:
