Seats: Locations

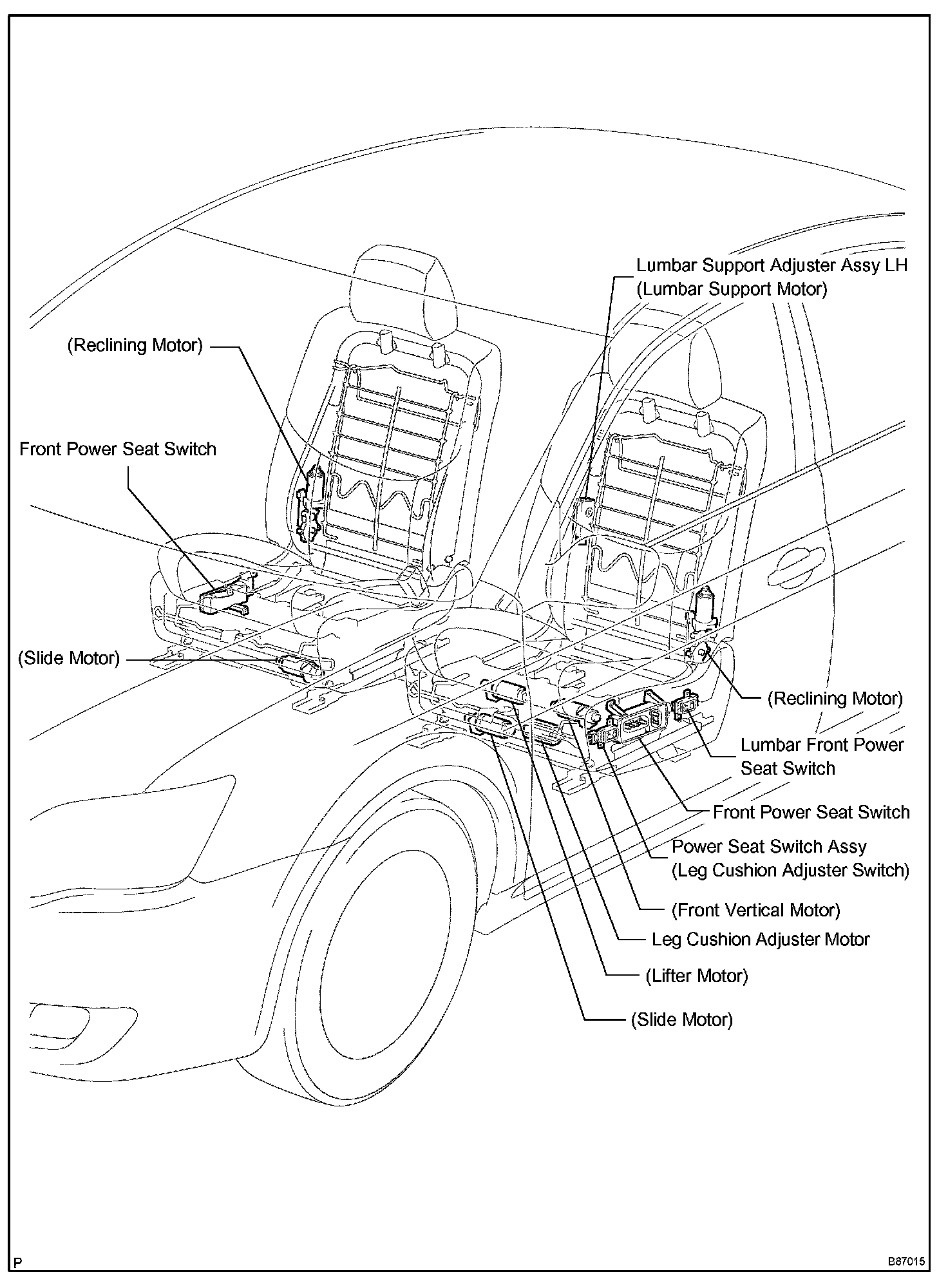

Front Power Seat Control System Part 1:

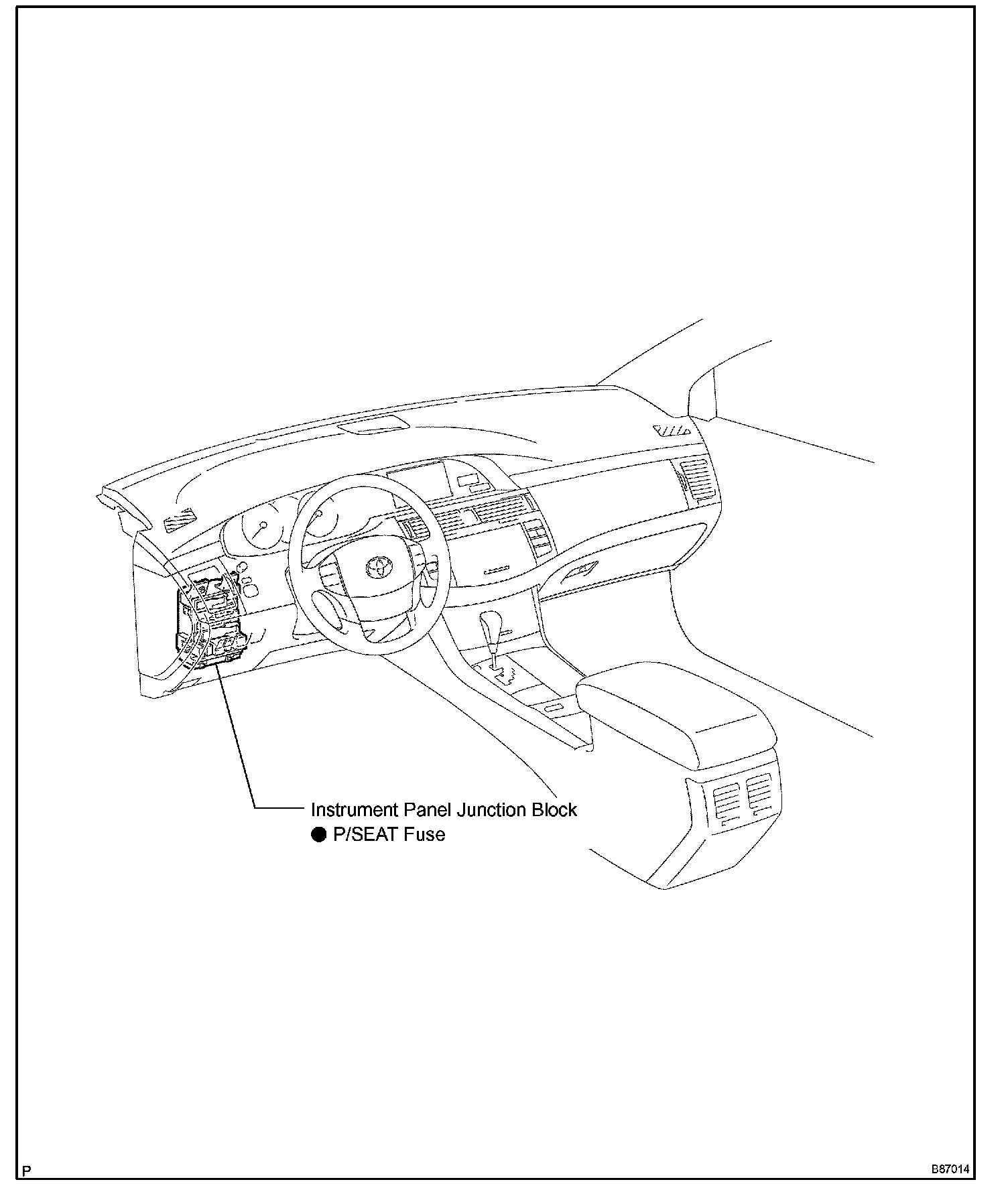

Front Power Seat Control System Part 2:

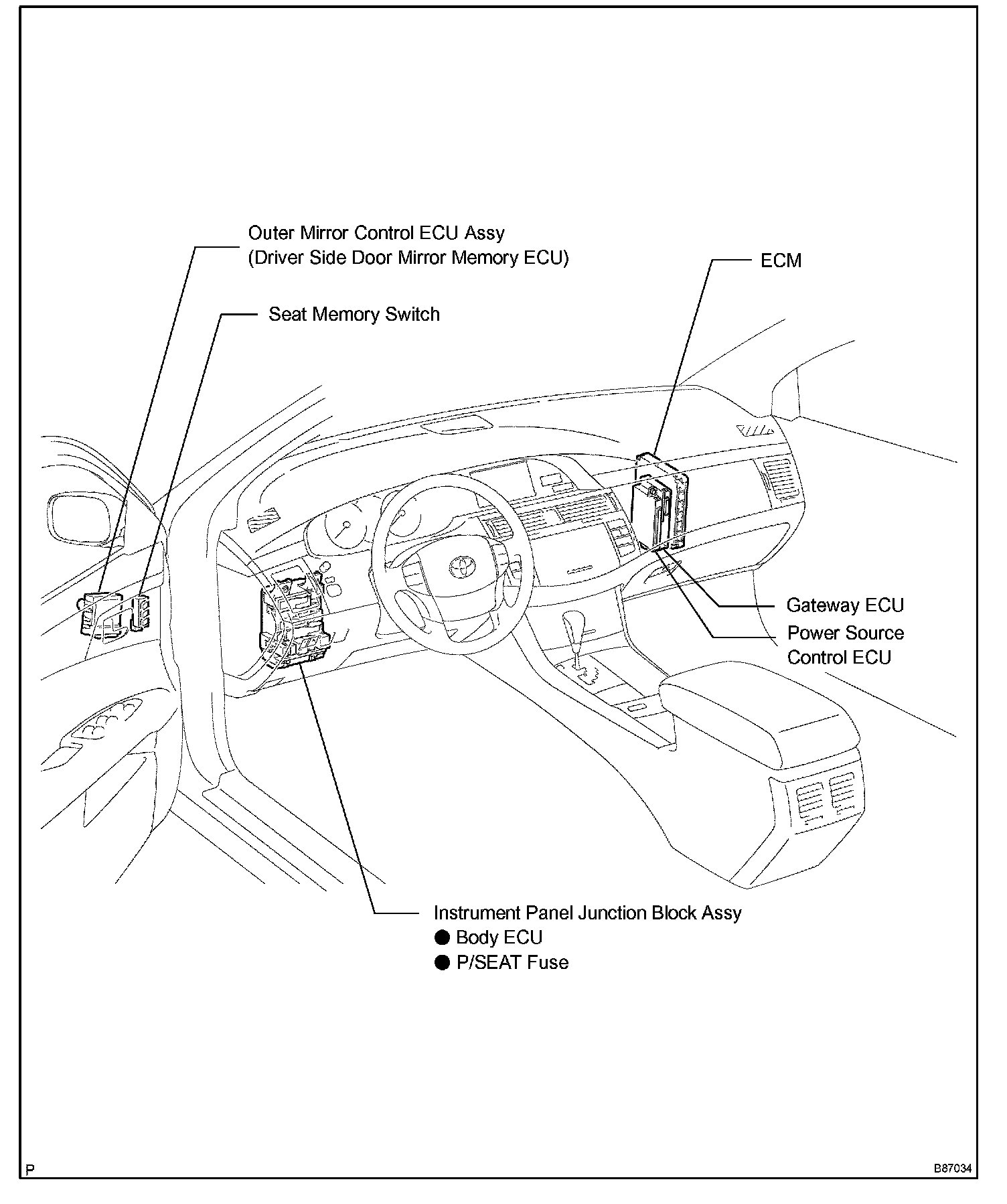

Front Power Seat Control System (W/Memory):

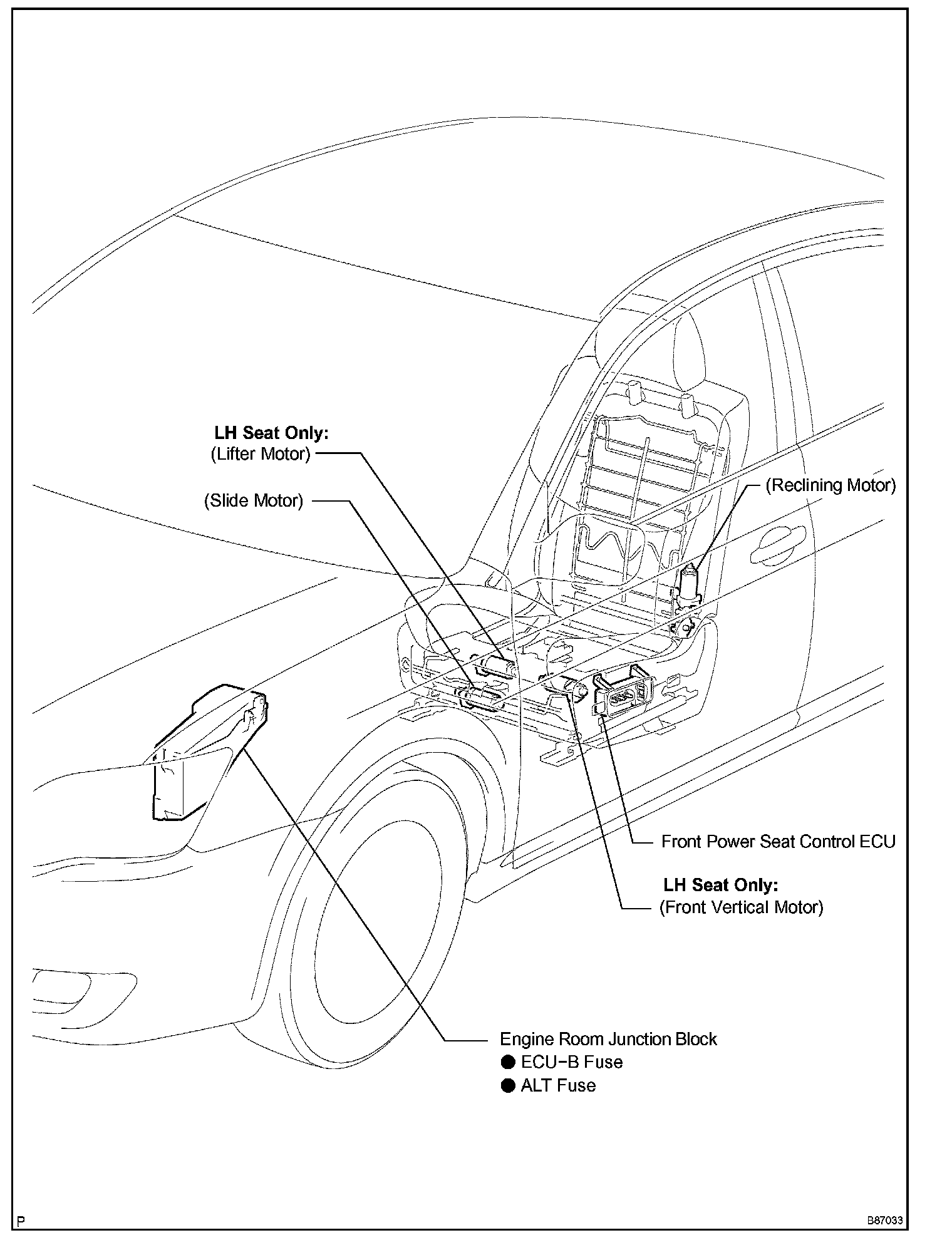

Front Power Seat Control System (W/Memory):
