Removal and Installation

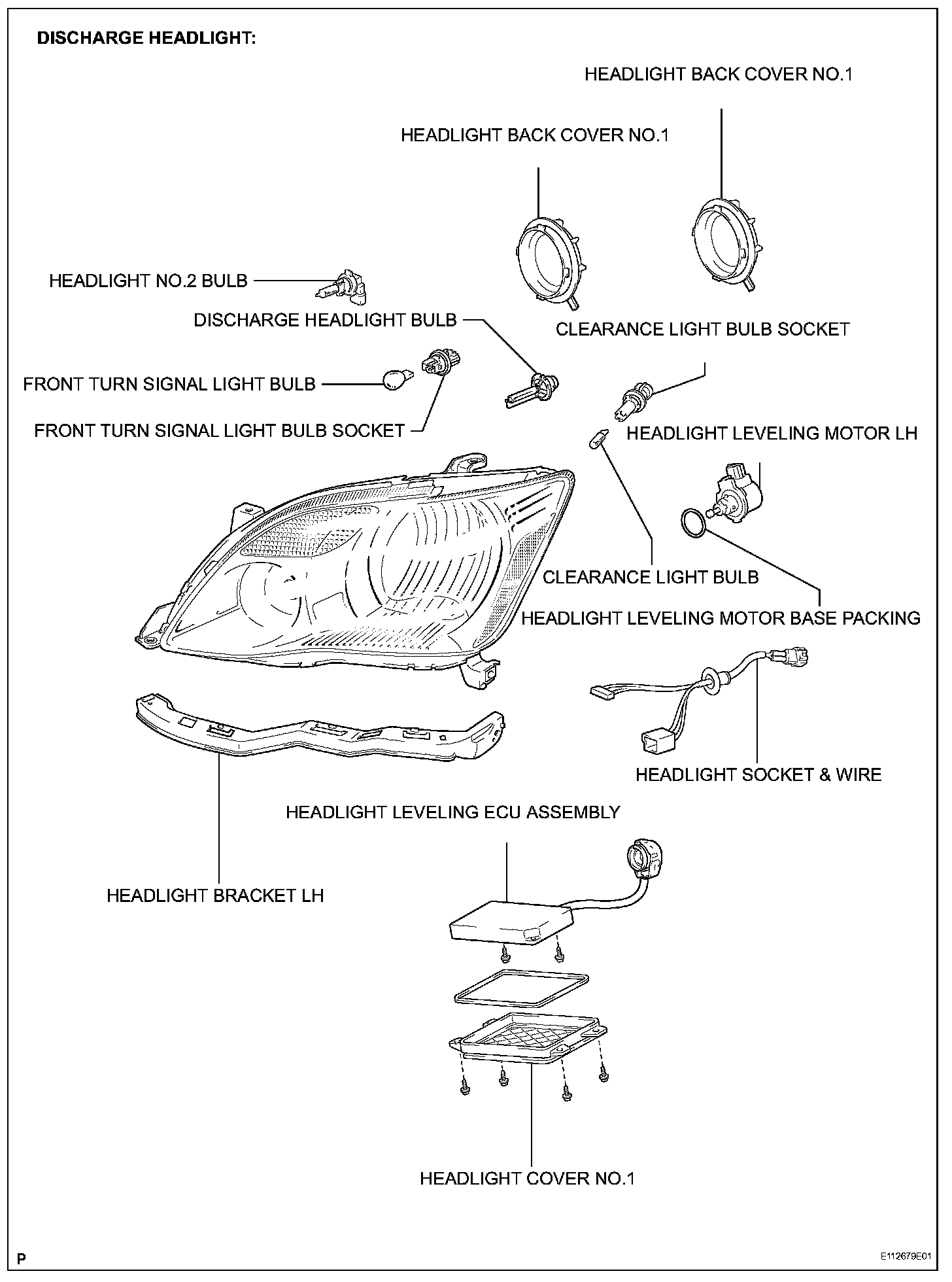

Headlight Assembly:

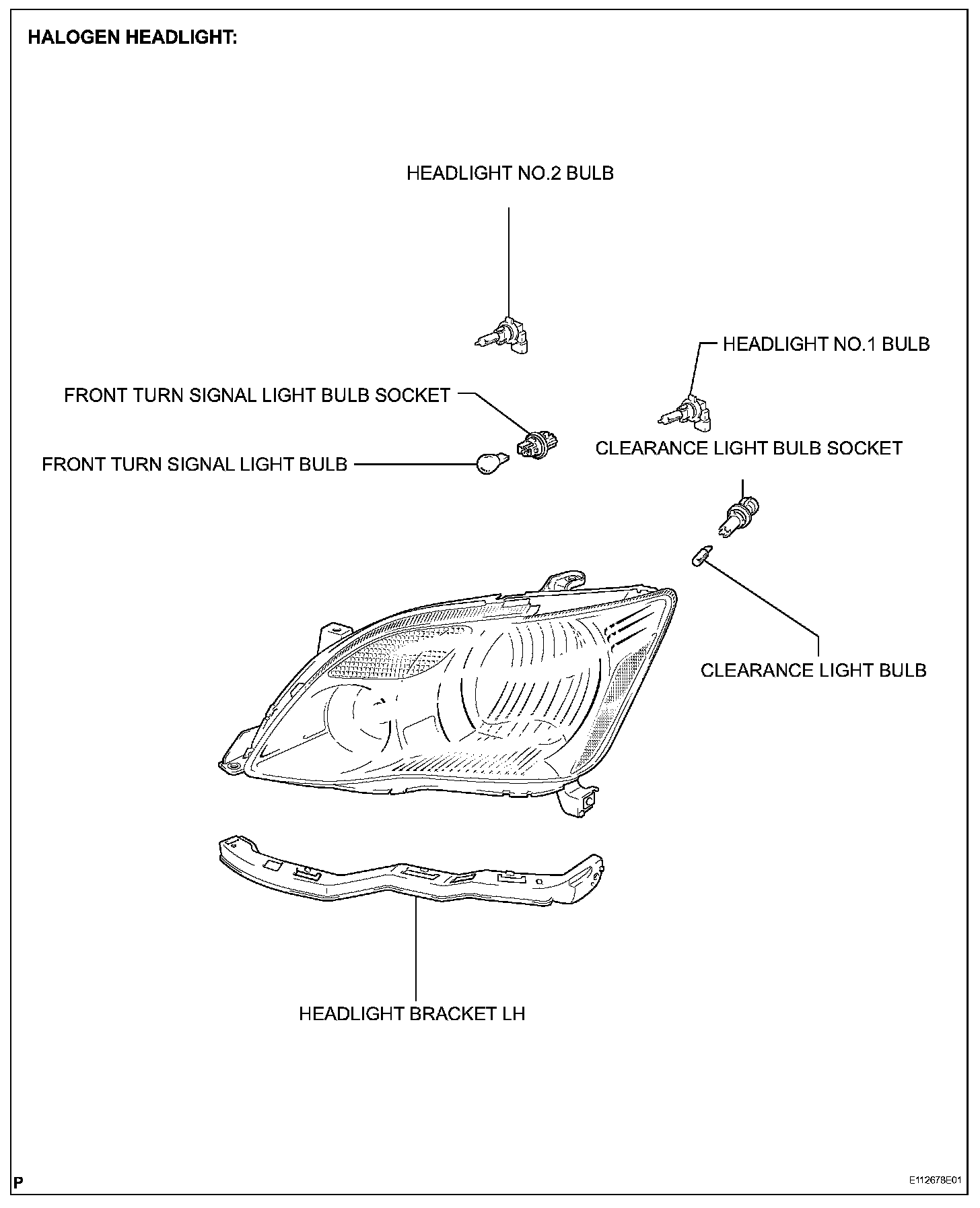

Headlight Assembly:

HEADLIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE RADIATOR GRILLER SUB-ASSEMBLY
2. REMOVE FRONT BUMPER ASSEMBLY
3. REMOVE HEADLIGHT ASSEMBLY

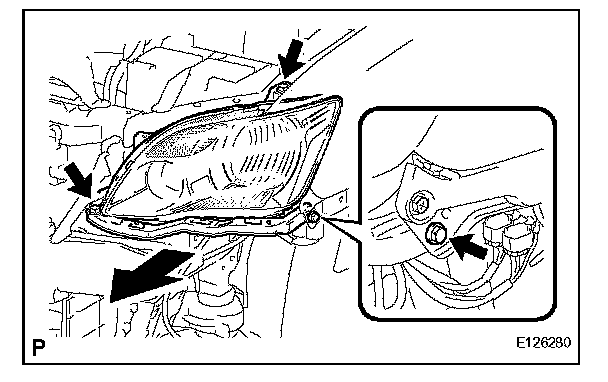

a. Remove the 3 bolts.
b. Pull the LH headlight assembly in the direction indicated by the arrow and remove the LH headlight assembly.

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY
2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL RADIATOR GRILLE SUB-ASSEMBLY
