Headlight Beam Level Warning Circuit

HEADLIGHT BEAM LEVEL WARNING CIRCUIT

CIRCUIT DESCRIPTION
The headlight beam level warning indicator light in the combination meter assembly comes on for approximately 3 seconds when the ignition switch is turned on (IG). The headlight beam level warning indicator light also comes on when the headlight beam level control ECU detects a malfunction.

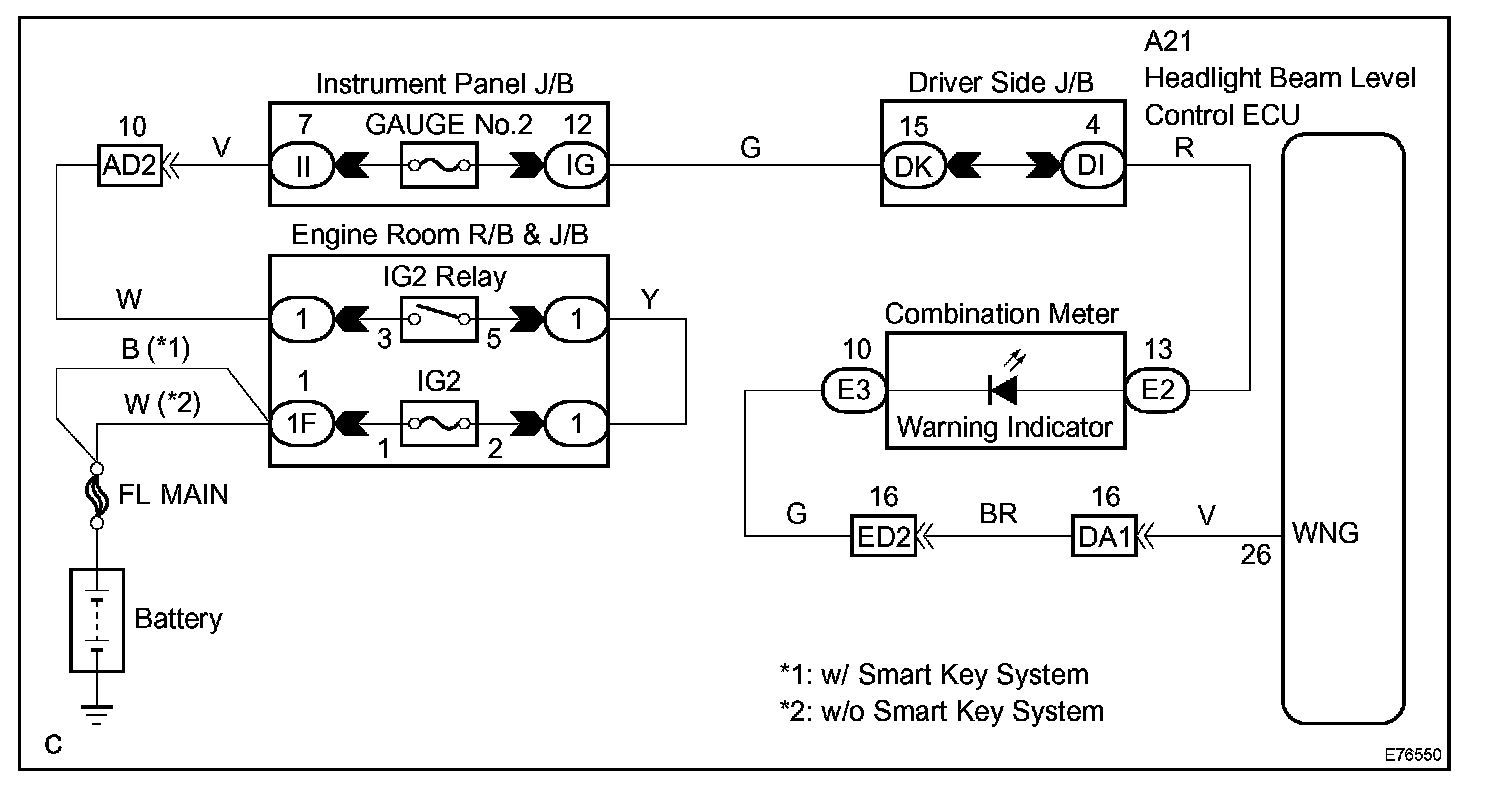

Wiring Diagram:

Step 1-2:

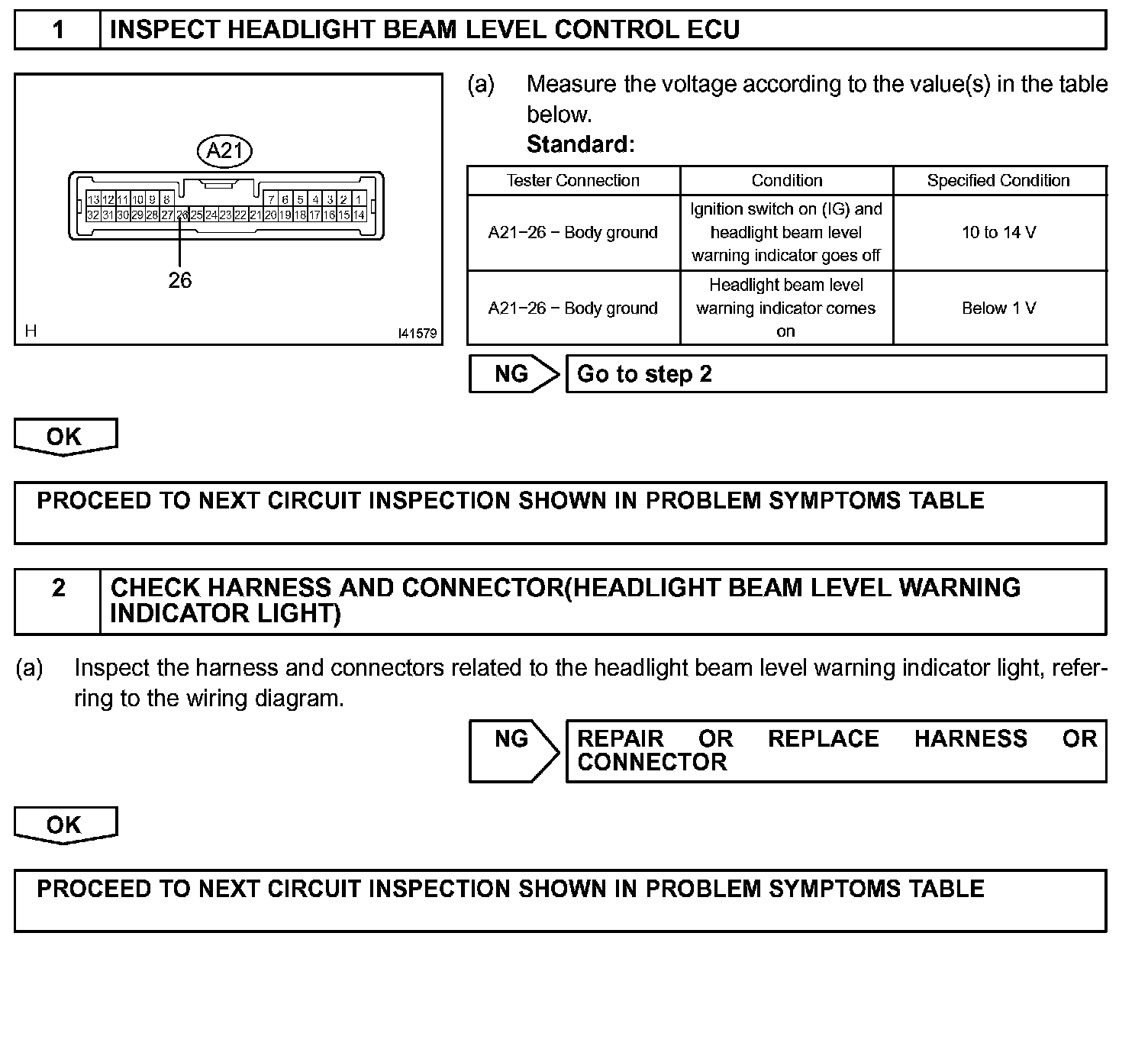

INSPECTION PROCEDURE
