Operation Check

OPERATION CHECK

1. ILLUMINATED ENTRY SYSTEM OPERATION CHECK
a. Illuminated entry system controls the following:
- Key cylinder light
Room light assembly No.1

b. Check that the lights come on when unlocking any of the doors that are closed and locked with the ignition switch off. Then check that the lights fade out under the following conditions:
1. Leave the doors unlocked for 15 seconds.
2. Turn the ignition switch on (IG) or turn the ignition switch on (ACC).
3. Lock all the doors.

c. Check that the lights stay ON for at least 15 seconds after opening any of the doors before fading out as shown in (b). Then check that the lights fade out 15 seconds after closing all the doors.

d. Check that the lights stay ON after turning the ignition switch off with all the doors closed and the ignition switch on (ACC) or on (IG). Then check that the lights fade out under the following conditions:
1. Leave the doors unlocked for 15 seconds.
2. Turn the ignition switch on (IG) or turn the ignition switch on (ACC).
3. Lock all the doors.

e. Check that the lights stay ON for at least 15 seconds after opening any of the doors before going (before approximately 15 seconds pass) under the conditions as shown in (d). Then check that the lights fade out 15 seconds after closing all the doors.

f. Check that the lights come on when opening any of the doors and fade out when closing and locking all the doors or turning the ignition switch on (ACC) or on (IG).

2. BATTERY SAVER OPERATION CHECK
a. Remove the ignition key and close all the doors.
b. Open the door to turn the room light on, and leave it open. Check that the light goes off after approximately 20 minutes.
c. After the room light goes off, close the driver's door.
d. Open any door to turn the room light on, and then open another door. Check that the room light goes off within 20 minutes after opening the doors.
e. Close all the doors. With the ignition key inserted, open any door to turn the room light on, and then remove the ignition key. Check that the room light goes off within 20 minutes.

3. LIGHT AUTO TURN OFF OPERATION CHECK
a. Turn the ignition switch on (IG), and switch the headlights to the TAIL or HEAD position.
b. Turn the ignition switch off and open the driver's door, and check that the headlights go off after approximately 30 seconds.
c. Turn the ignition switch on (IG), and switch the headlights to the TAIL or HEAD position.
d. Turn the ignition switch off and open the driver's door. Before the headlight goes off after approximately 30 seconds, lock all the doors. Check that the headlights go off immediately.

4. AUTOMATIC LIGHT CONTROL OPERATION CHECK
a. Turn the ignition switch on (IG).
b. Turn the headlight dimmer switch to the AUTO position.
c. Cover the automatic light control sensor and check that the tail lights and headlights come on in order.
d. Uncover the automatic light control sensor and check that the headlights and tail lights go off in order.

5. DAYTIME RUNNING LIGHT OPERATION CHECK
a. Check that the high beams come on when the headlight switch is off with the engine running and the parking brake released.
b. Check that the high beams go off when turning the headlight dimmer switch to the TAIL or HEAD (LOW) position under the condition as shown in (a).
c. Check that the high beams go off when turning the ignition switch off under the condition as shown in (a).

6. HEADLIGHT BEAM LEVEL CONTROL OPERATION CHECK
a. Check that the initialization (determination of the initial position) of the leveling motor is performed at engine-start.

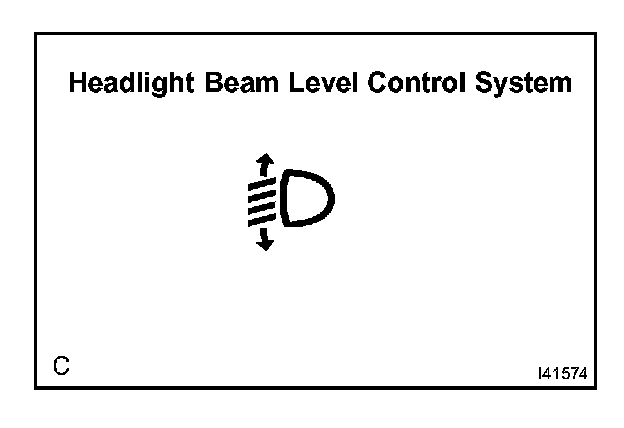

b. Check that the warning indicator in the combination meter assembly comes on for approximately 3 seconds when turning the ignition switch on (IG) and then goes off.
c. Check that the projector moves when:
Moving the rear of the vehicle up or down while the engine is running, vehicle is stopped, and the headlight dimmer switch is in the HEAD position.

NOTE: Make sure to change the vehicle's height slowly.
