Trunk Lamp: Testing and Inspection

LUGGAGE COMPARTMENT LIGHT ASSEMBLY
a. Inspect the luggage compartment light.

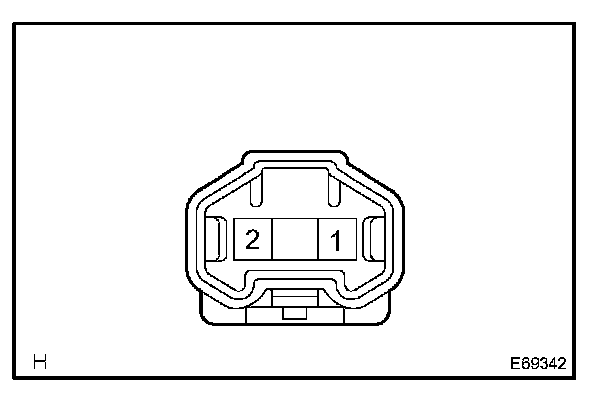

1. Connect the (+) lead from the battery to terminal 1 and the (-) lead to terminal 2, then check that the luggage compartment light comes on.

OK: The light comes on.
