SFI - Diagnostics

SYSTEM DIAGRAM

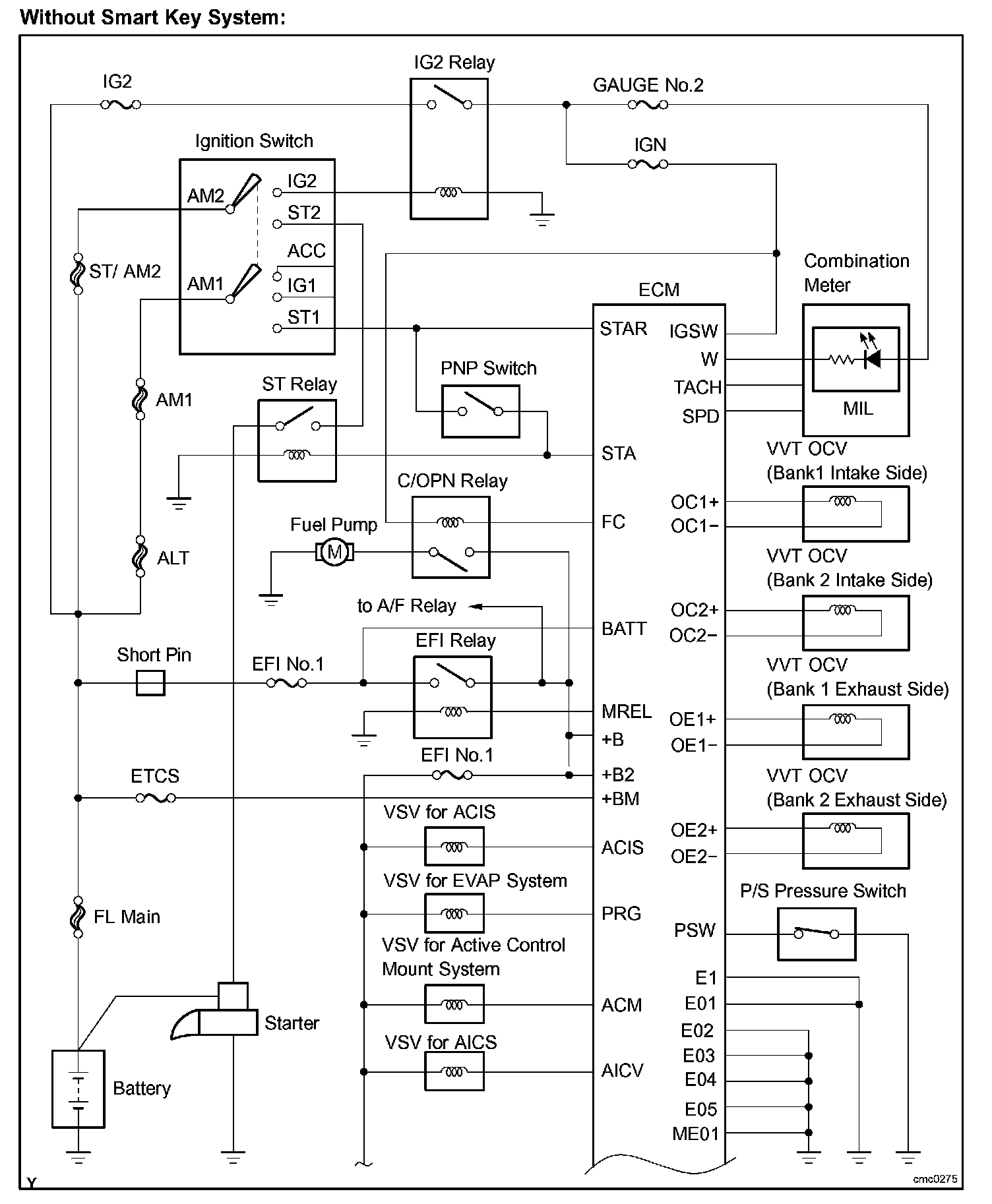

System Diagram - Without Smart Key System (Part 1):

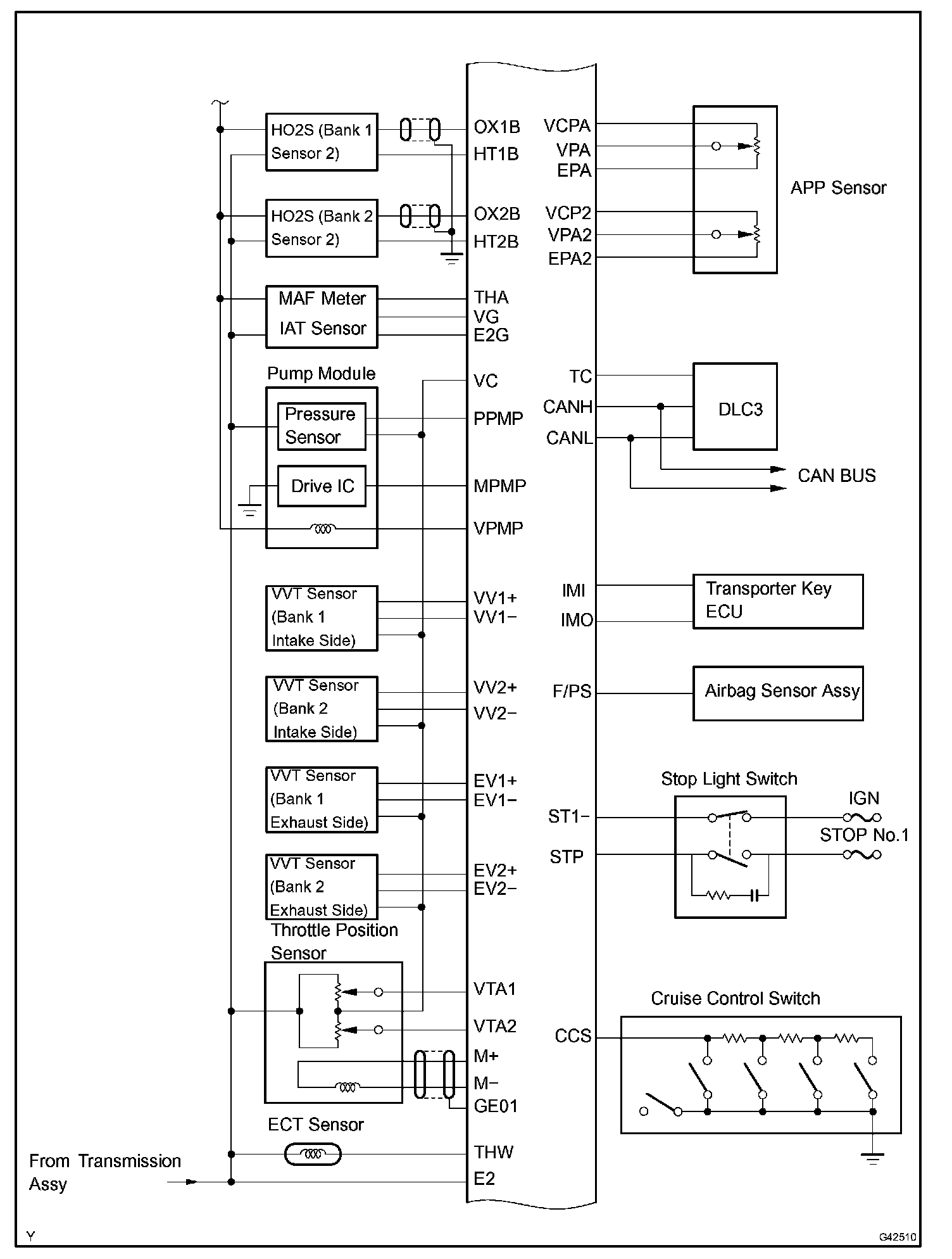

System Diagram - Without Smart Key System (Part 2):

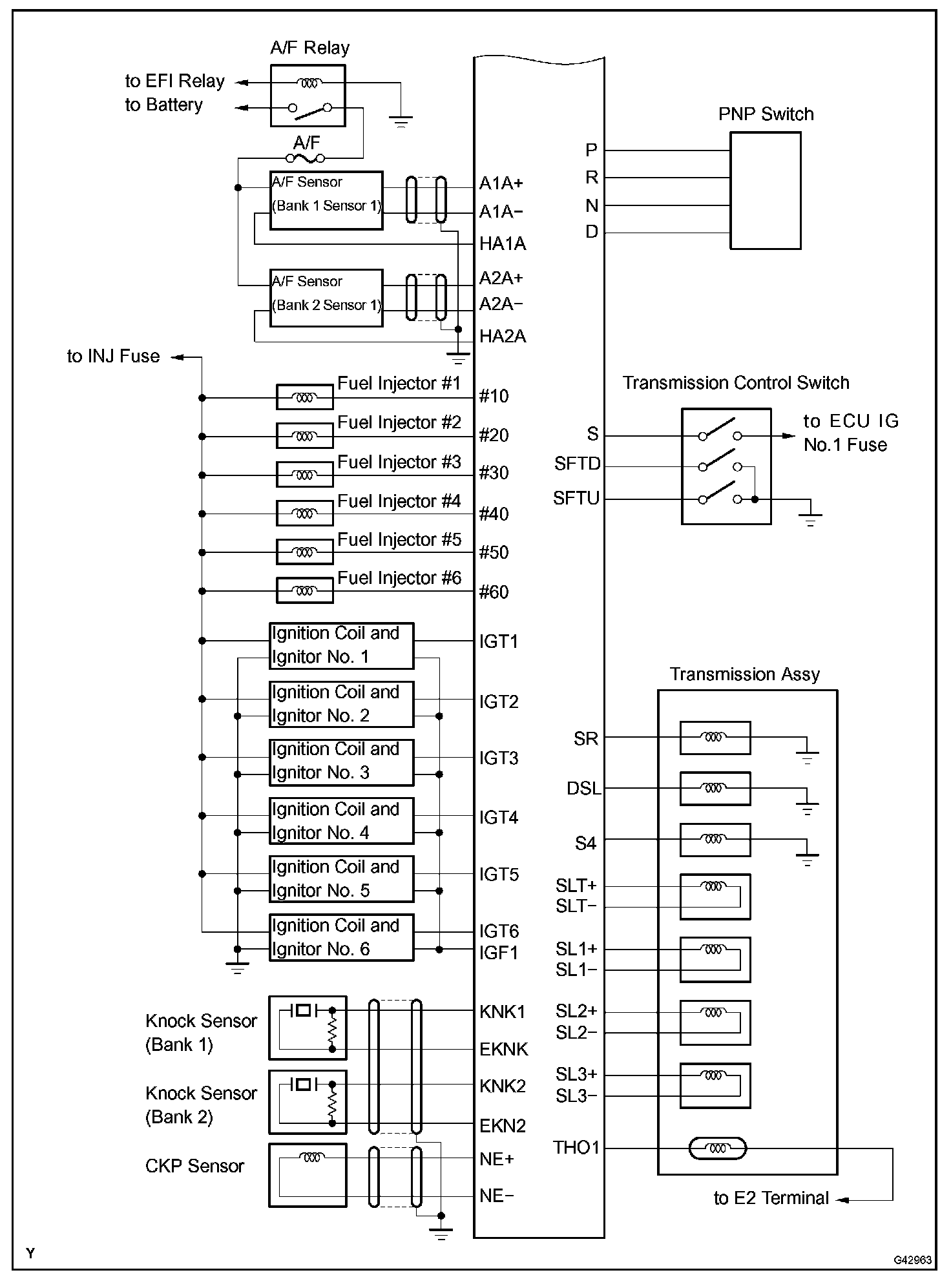

System Diagram - Without Smart Key System (Part 3):

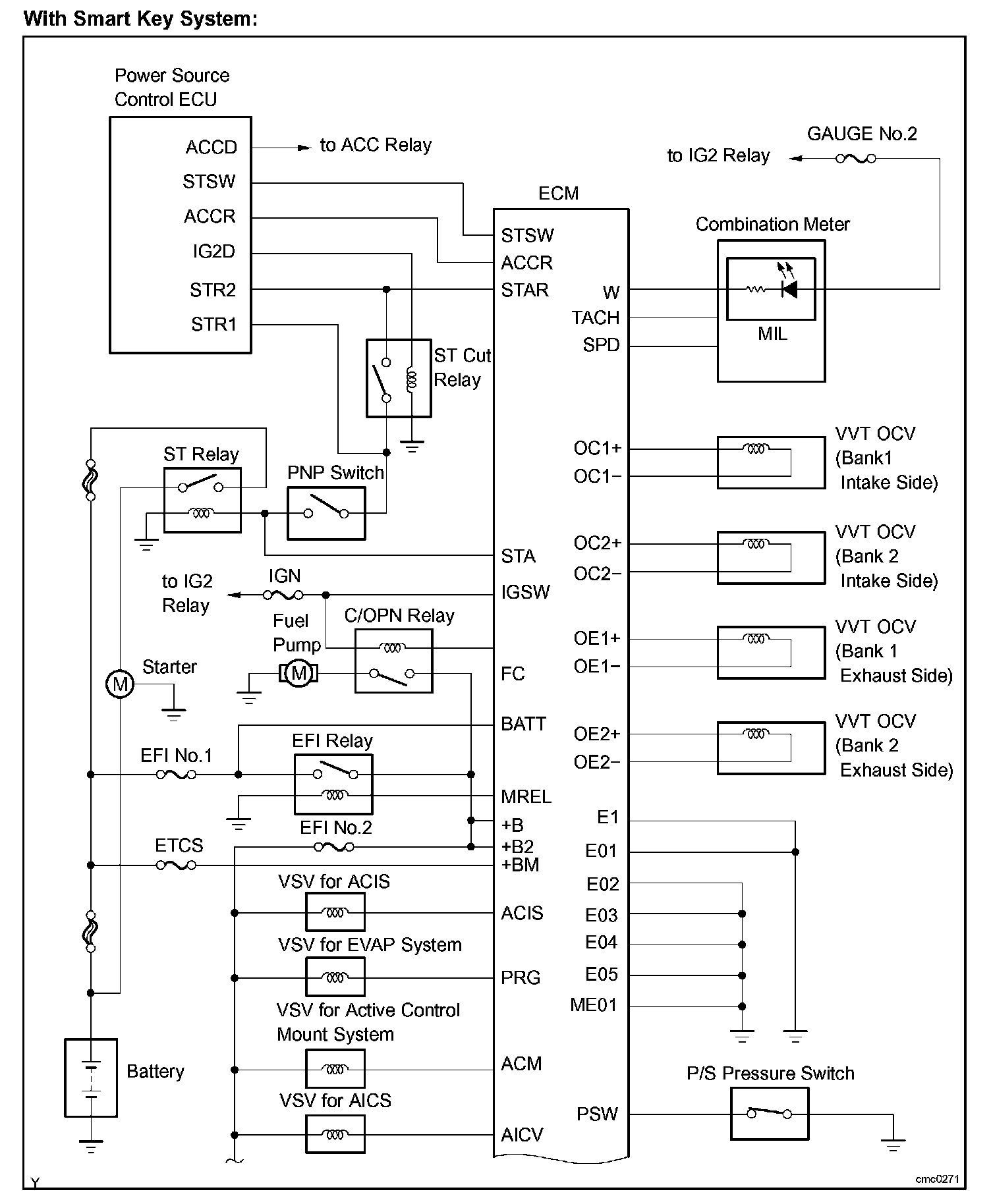

System Diagram - With Smart Key System (Part 1):

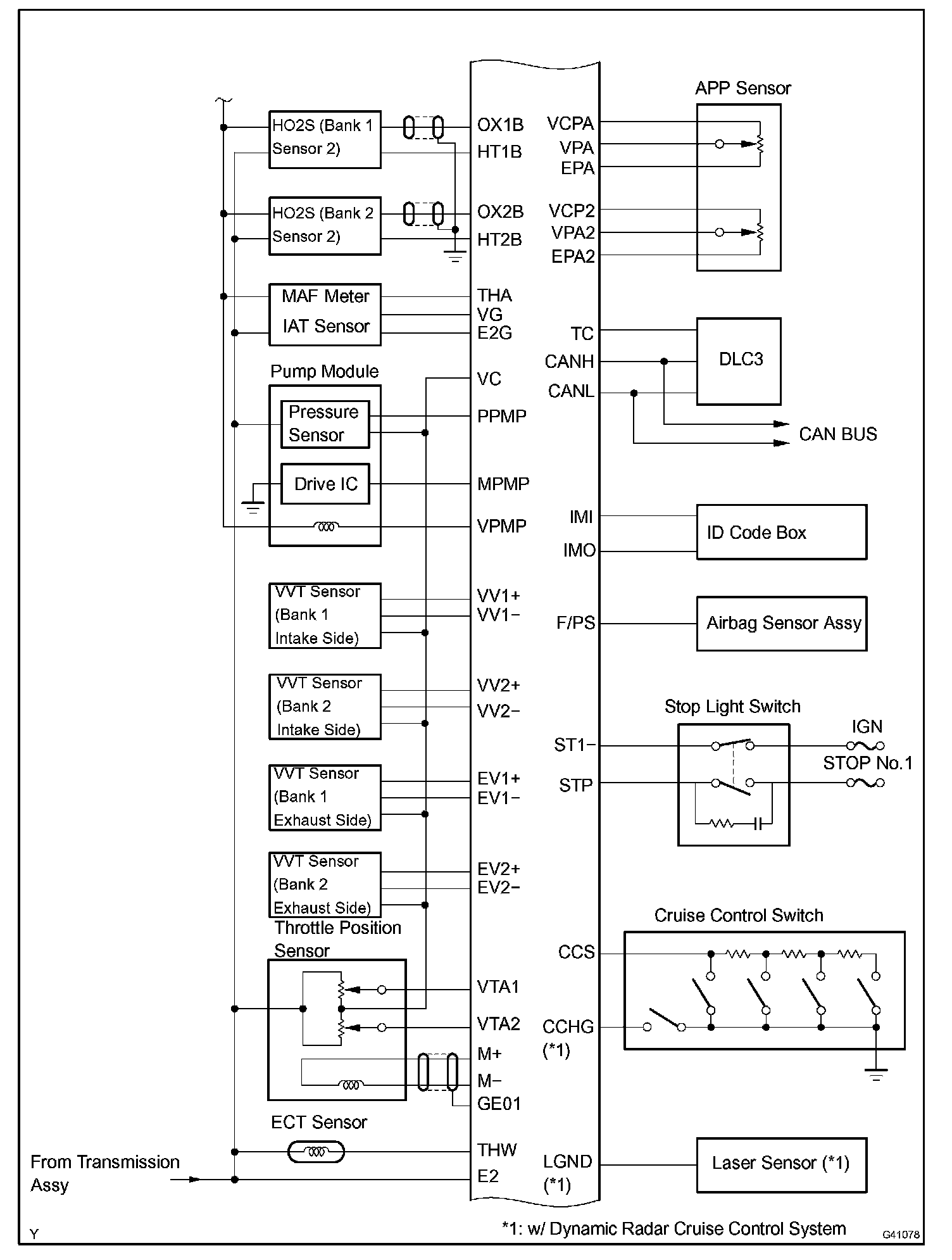

System Diagram - With Smart Key System (Part 2):

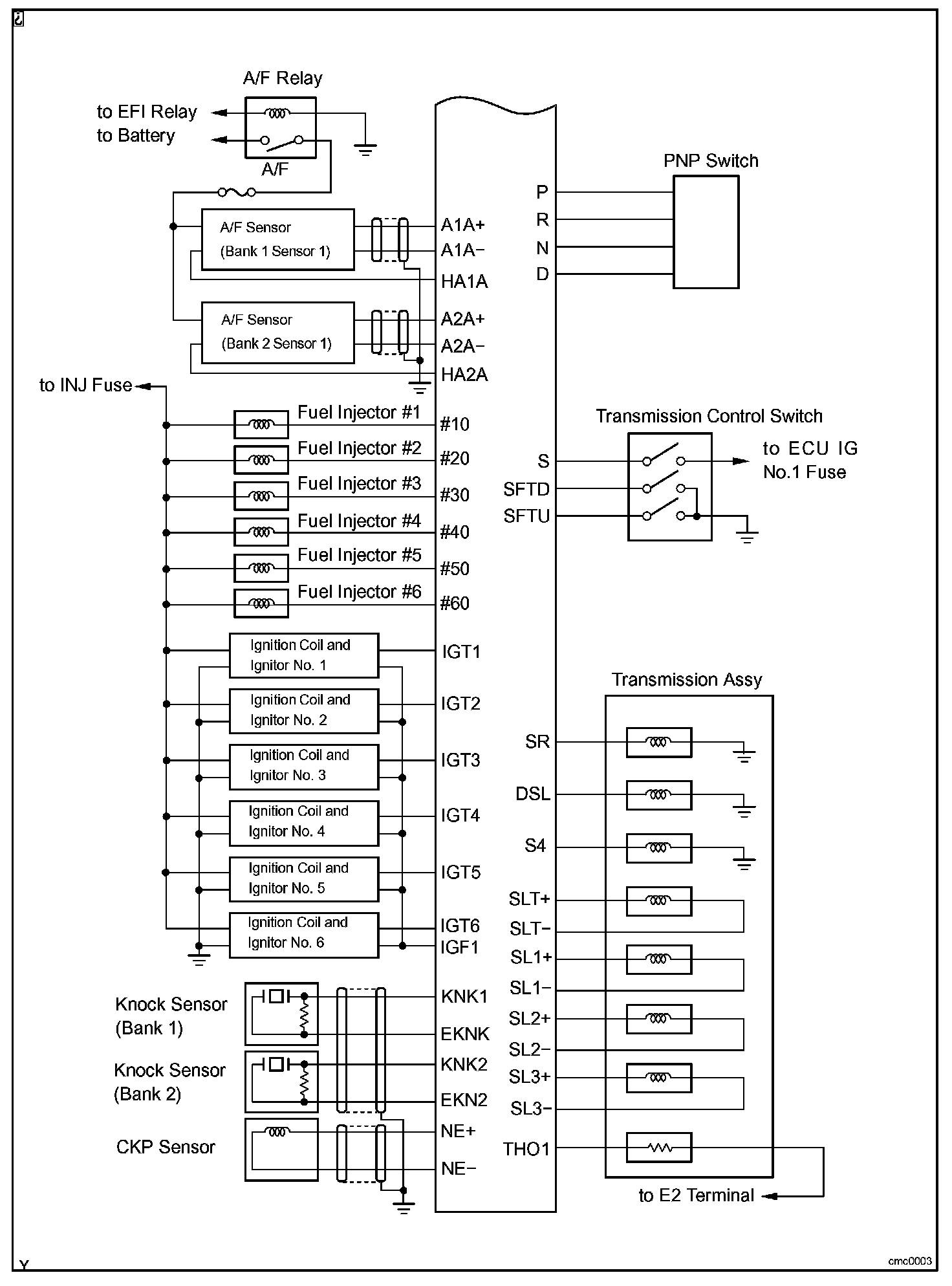

System Diagram - With Smart Key System (Part 3):

COMMUNICATION WITH OTHER COMPUTERS

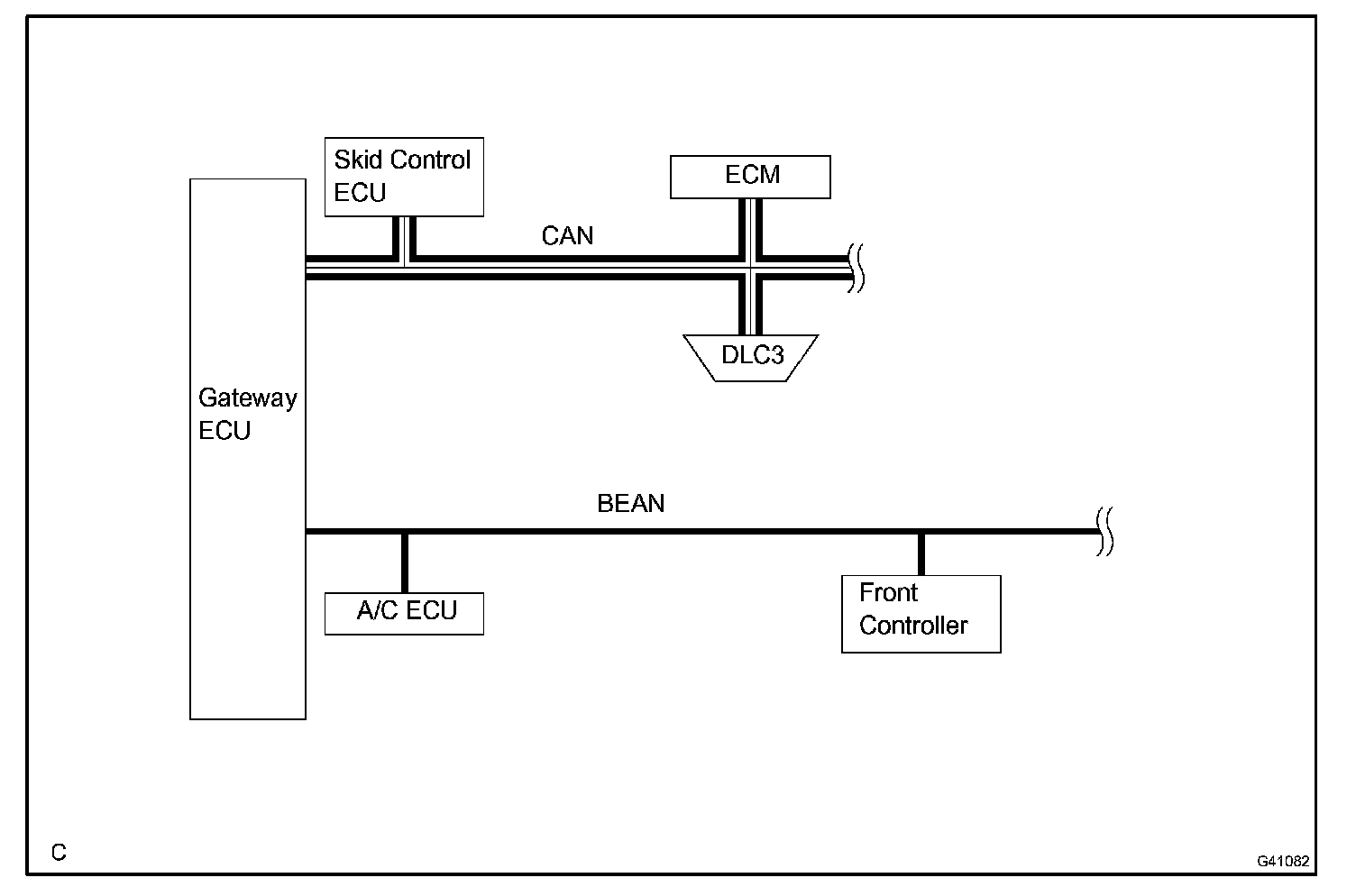

COMMUNICATIONS

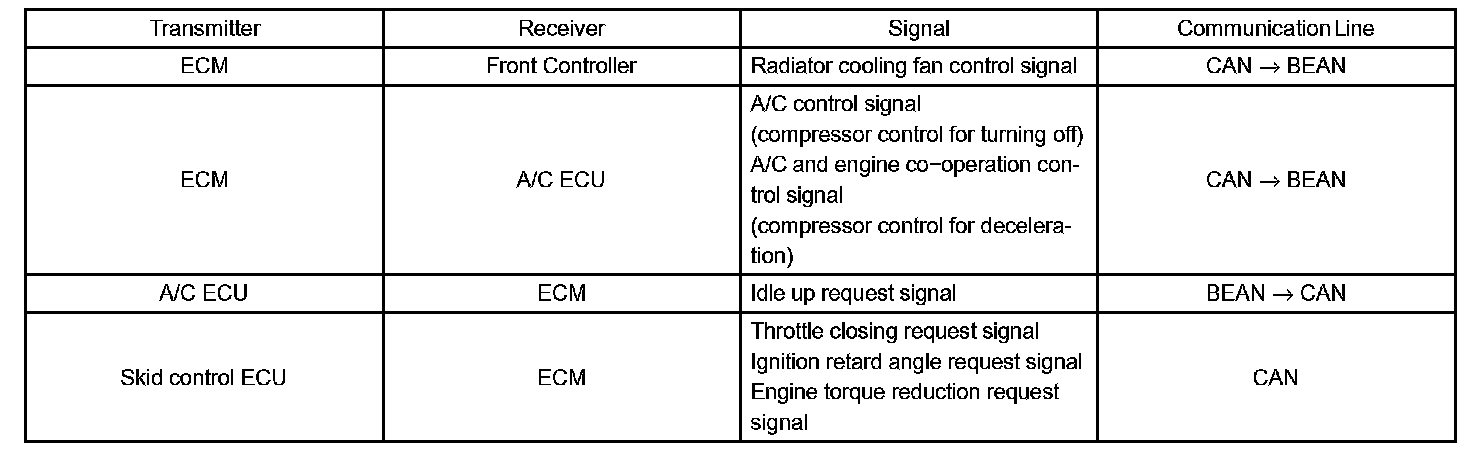

The ECM communicates with the following ECU using the signals listed. The table explains receiving and sending signals by the ECM or ECU.
