Skid Control Sensor

SKID CONTROL SENSOR

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL





2. DISCONNECT SKID CONTROL SENSOR WIRE

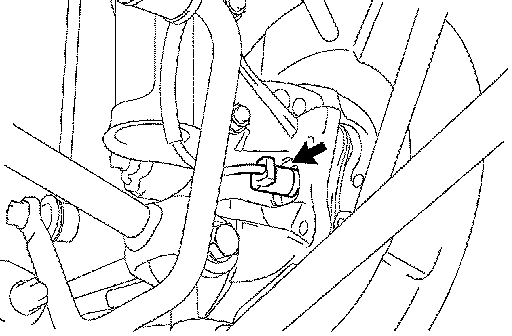

a. Disconnect the connector from the skid control sensor.
3. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH
4. REMOVE REAR DISC





5. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH

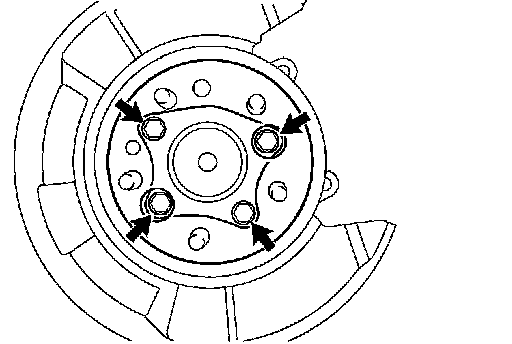

a. Remove the 4 bolts and rear axle hub & bearing assembly.





6. REMOVE SKID CONTROL SENSOR
a. Mount the rear axle hub in a vise between aluminum plates.

NOTICE: Replace the axle hub & bearing assembly if it is dropped or receives a strong shock.

b. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments (09521-00010) from SST.
SST 09520-00031

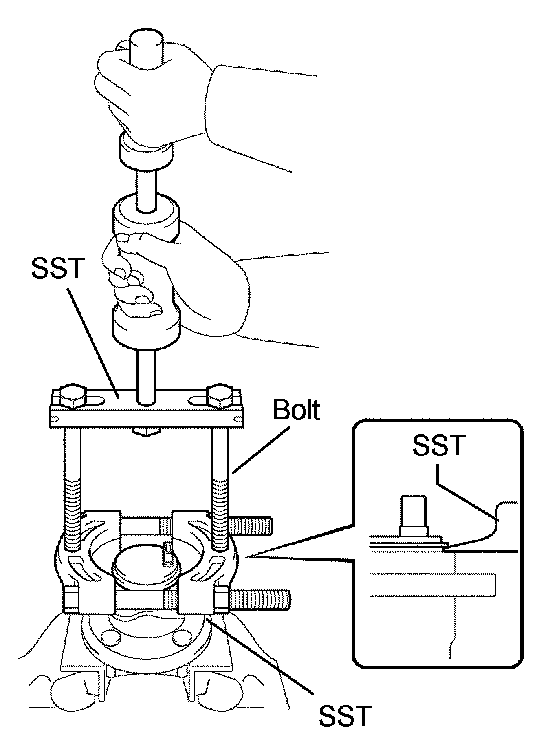

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

NOTICE:
- If damage is inflicted on the sensor rotor, replace the axle hub & bearing assembly.
- Do not scratch the contact surface of axle hub and speed sensor.

7. INSTALL SKID CONTROL SENSOR





a. Clean the contact surface of the axle hub and a new skid control sensor.

NOTICE: Prevent foreign matter from attaching to the sensor rotor.

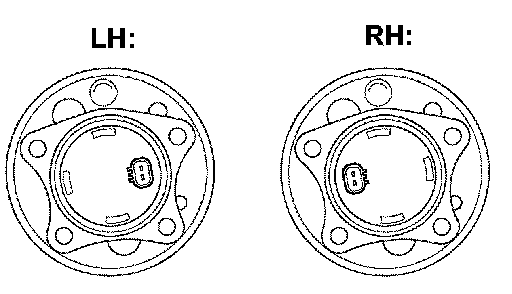

b. Place the skid control sensor on the axle hub so that the connector is positioned as shown in the illustration.

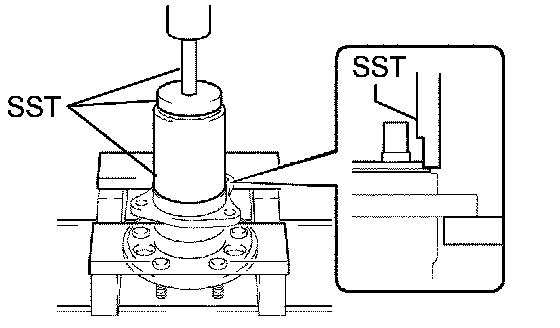

c. Using SST and a press, install the skid control sensor to the axle hub.
SST 09830-36010, 09950-60010 (09951-00650), 09950-70010 (09951-07100)

NOTICE:
- Do not tap the skid control sensor with a hammer directly.
- Check that there should be no foreign matter on the skid control sensor detection portion.
- Press the skid control sensor in the axle hub straight and slowly.





8. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
a. Install the rear axle hub & bearing assembly with the 4 bolts.
Torque: 80 Nm (816 kgf-cm, 59 ft. lbs.)
9. INSTALL REAR DISC
10. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH





11. CONNECT SKID CONTROL SENSOR WIRE

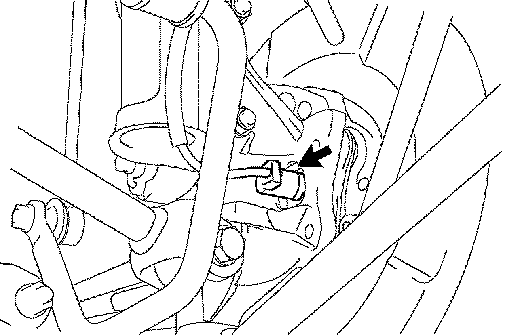

a. Connect the connector to the skid control sensor.
12. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
13. INSPECT REAR WHEEL ALIGNMENT
14. CHECK ABS SPEED SENSOR SIGNAL
