Oxygen Sensor: Testing and Inspection

INSPECTION

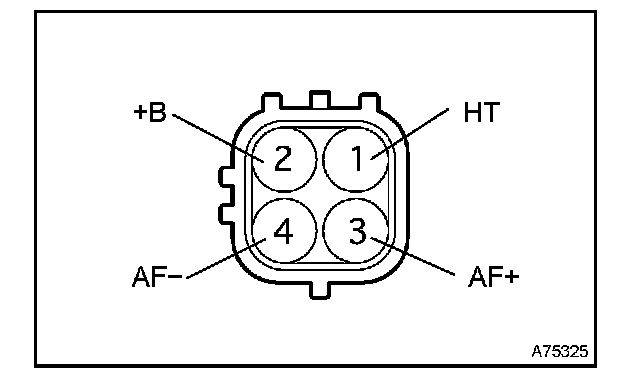

1. INSPECT AIR FUEL RATIO SENSOR
a. Measure the resistance between terminals 1 (HT) and 2 (+B).

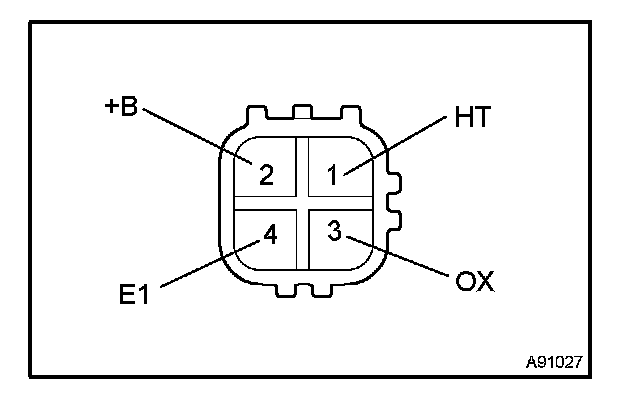

2. INSPECT OXYGEN SENSOR
a. Measure the resistance between terminals 1 (HT) and 2 (+B).

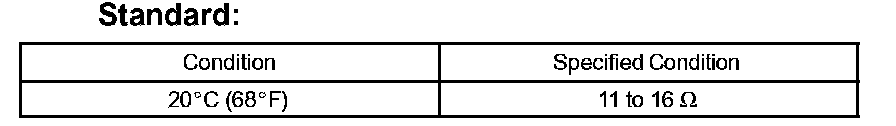

If the result is not as specified, replace the sensor.
