Crankshaft, Engine

CRANKSHAFT
Inspect for circle runout.
Using a dial indicator, measure the circle runout at the center journal.
Maximum circle runout: 0.06 mm (0.0024 inch)
If the circle runout is greater than the maximum, replace the crankshaft.

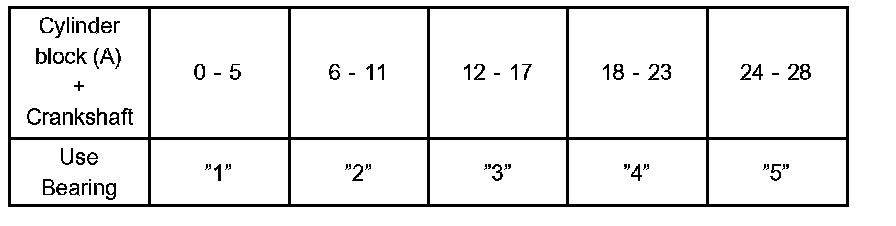

JOURNAL BEARINGS
