System Description

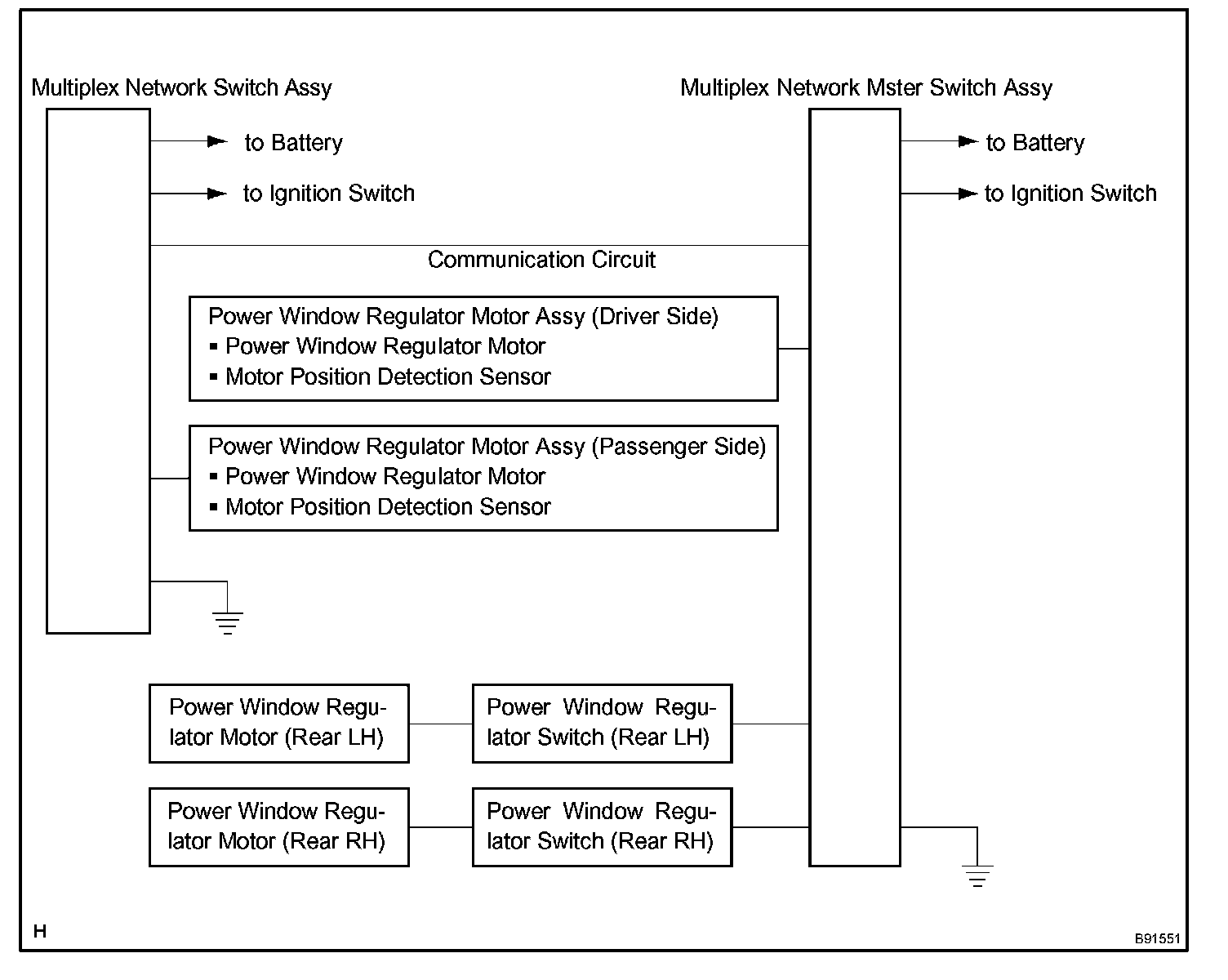

SYSTEM DIAGRAM

System Diagram:

SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION
a. The power window control system controls the power windows' UP/DOWN function using the regulator motors.
The main controls of this system are: the multiplex network master switch assembly, which is built into the driver side door, and the power window regulator switches, which are built into the passenger side door and rear doors. Pressing each regulator switch on the multiplex network master switch assembly transmits a remote UP/DOWN signal to each power window regulator switch.

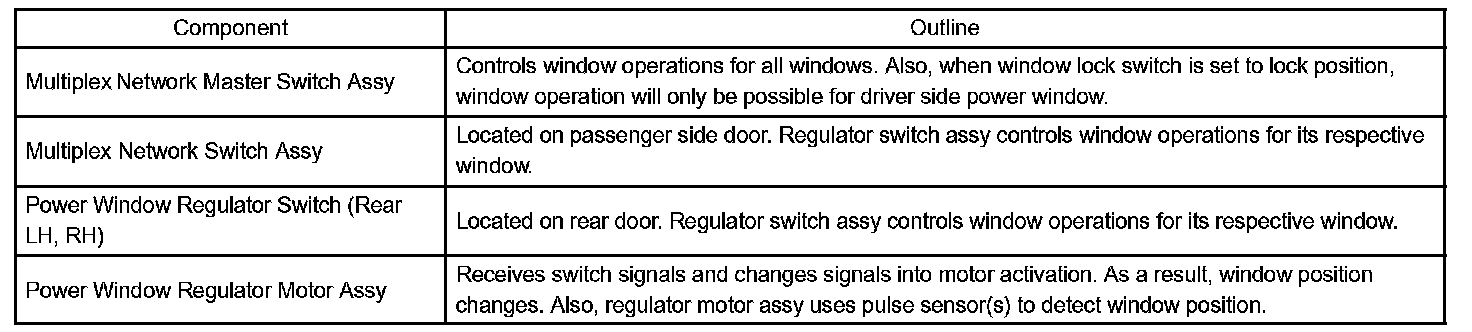

2. FUNCTION OF MAIN COMPONENT

3. SYSTEM FUNCTION

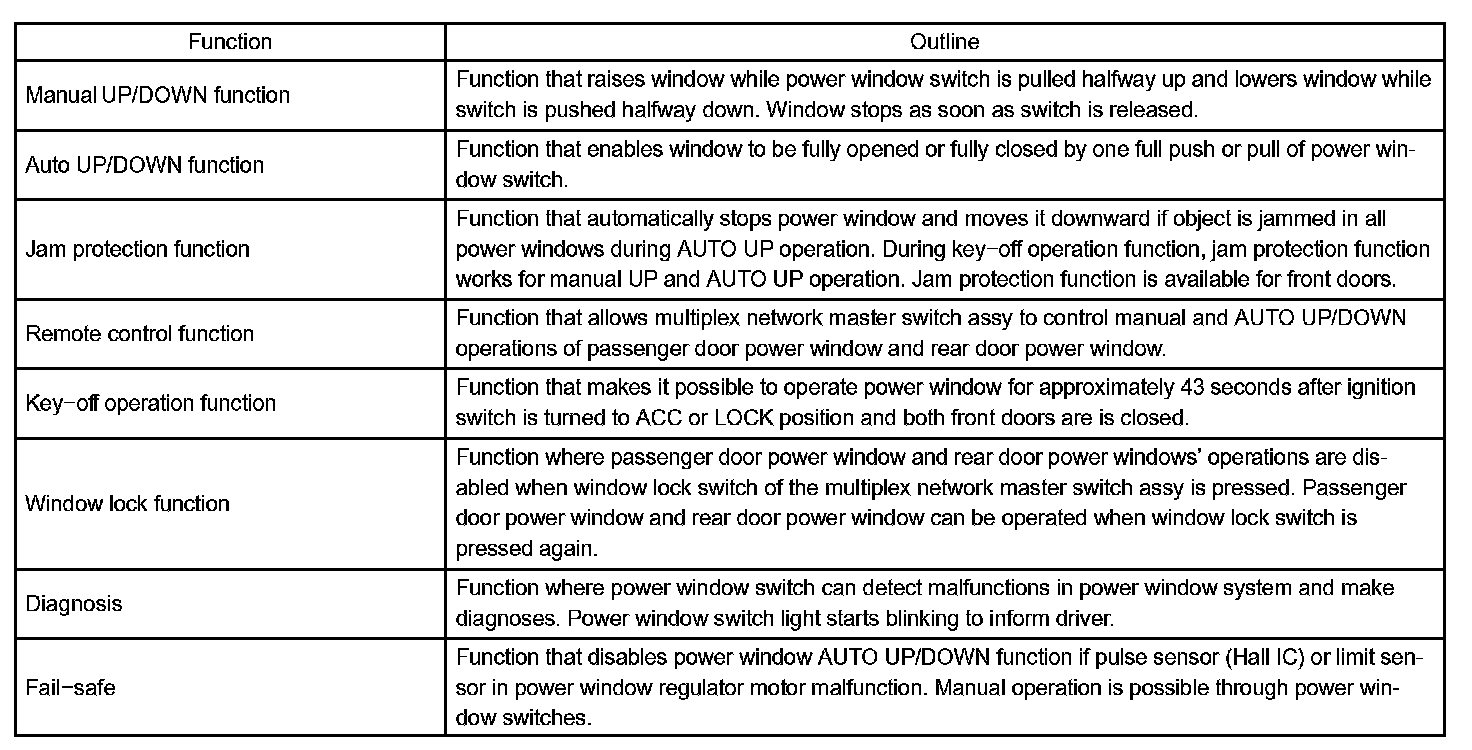

a. The power window control system has the given functions:
