Power Window Motor Circuit (Rear LH)

POWER WINDOW MOTOR CIRCUIT (REAR LH)

CIRCUIT DESCRIPTION
This circuit transmits signal from the power window regulator switch assembly (Rear LH) to power window regulator motor assembly (Rear LH).

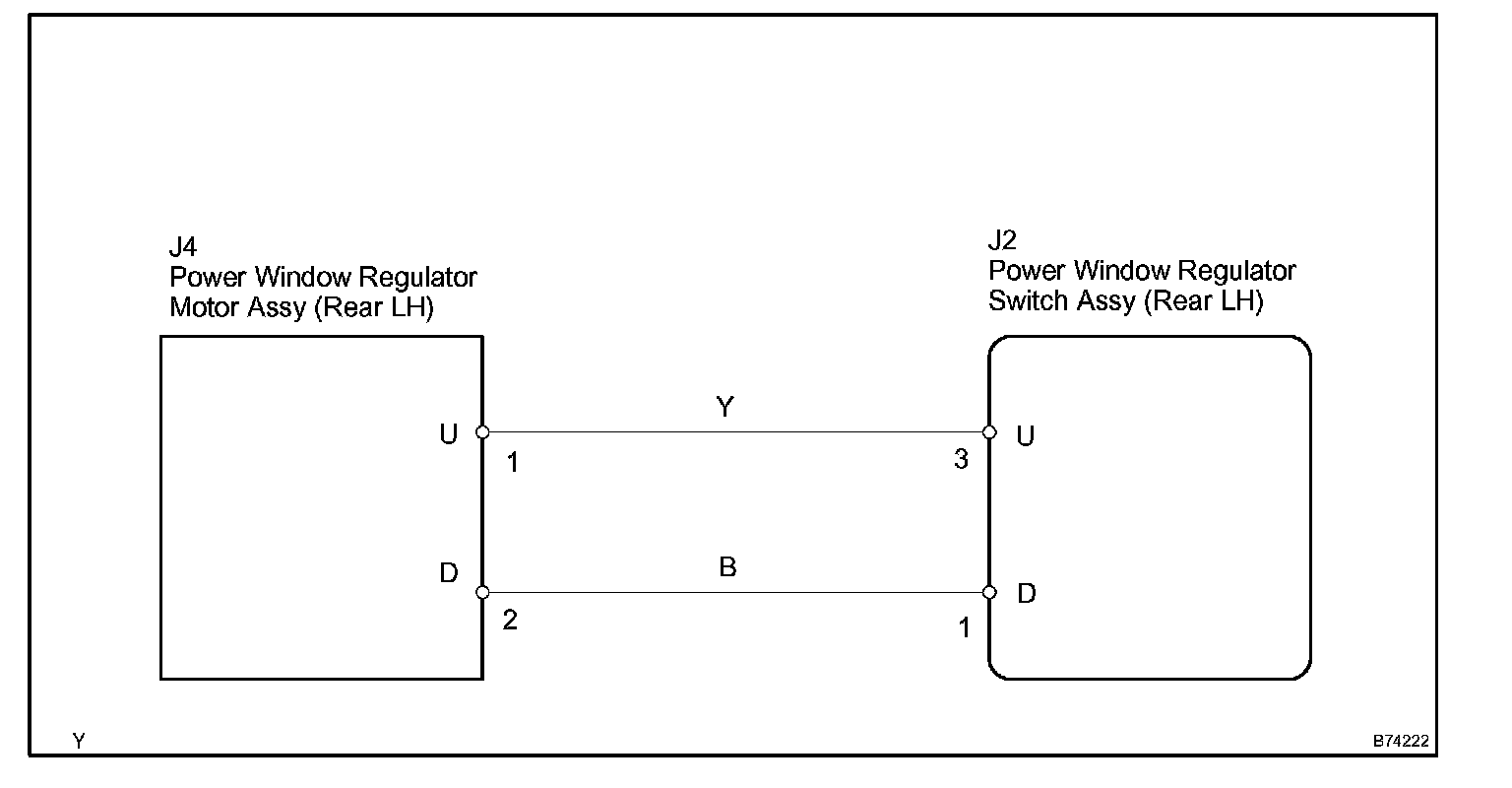

Wiring Diagram:

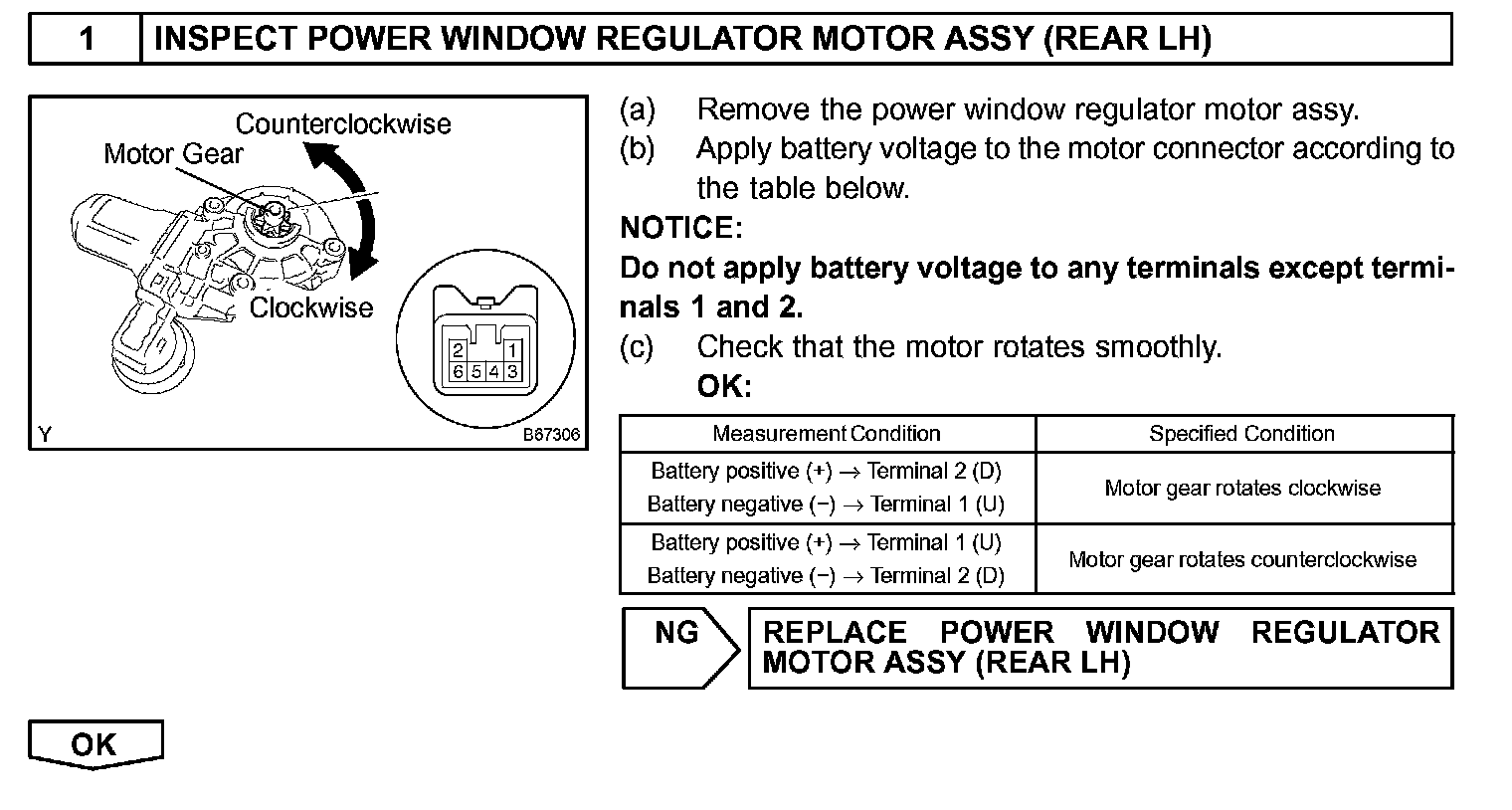

Step 1:

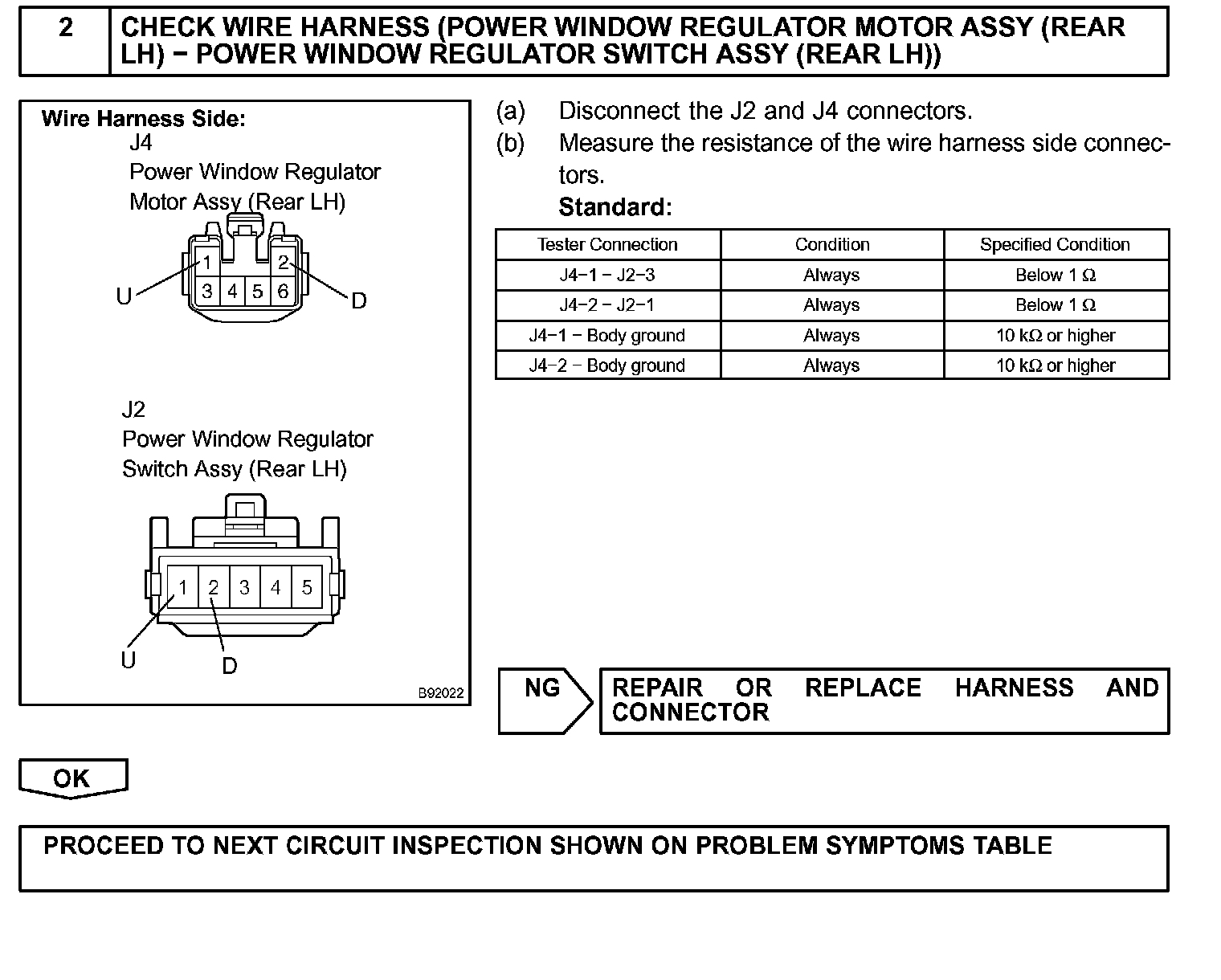

Step 2:

INSPECTION PROCEDURE
