Pinout Values and Diagnostic Parameters

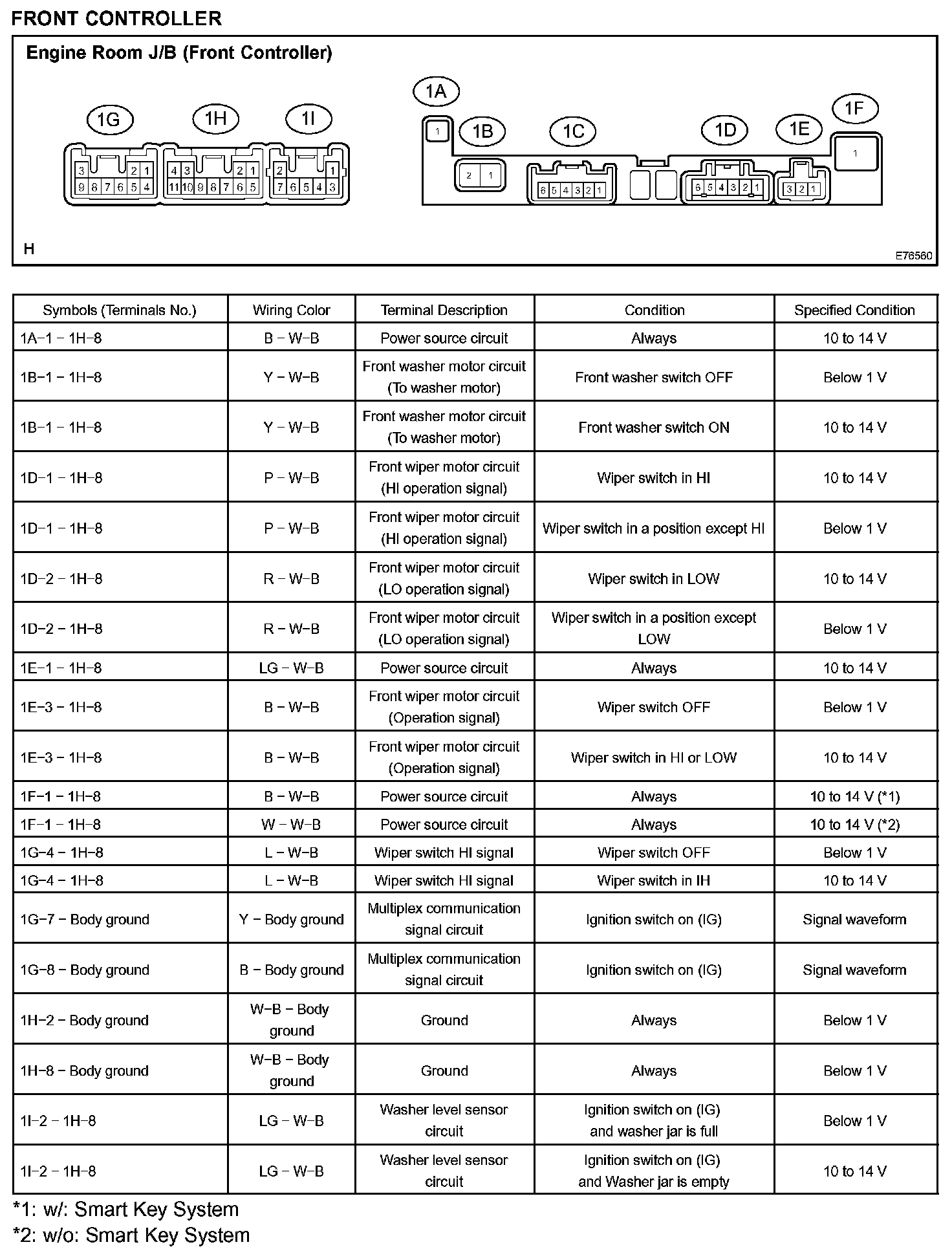

Terminals Of Control Module/Pinouts - Front Controller:

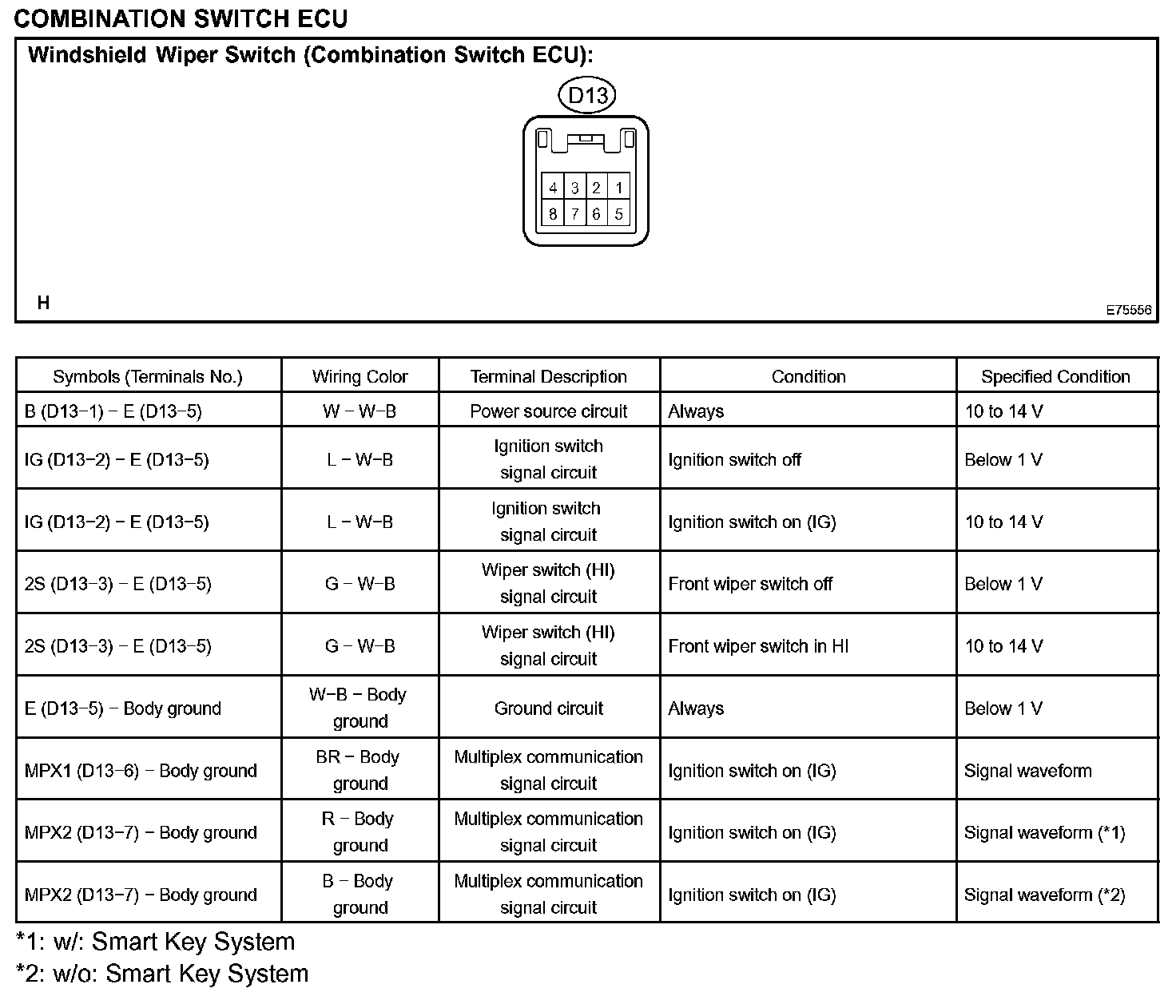

Terminals Of Control Module/Pinouts - Combination Switch ECU:
