Wiper Motor: Testing and Inspection




WINDSHIELD WIPER MOTOR ASSEMBLY
a. LO Operation Check

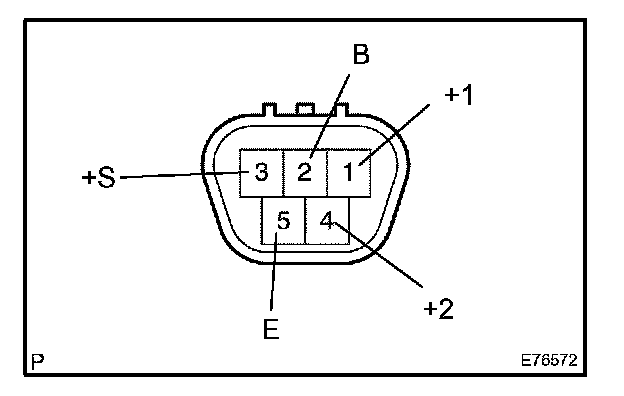

1. Connect the positive battery (+) lead to terminal 1 (+1) of the connector, and the negative battery (-) lead to terminal 5 (E), and check that the motor operates at low speed (LO).

b. HI Operation Check
1. Connect the positive battery (+) lead to terminal 4 (+2) of the connector, and the negative battery (-) lead to terminal 5 (E), and check that the motor operates at high speed (HI).

c. Automatic Stop Operation Check
1. Connect the positive battery (+) lead to terminal 1 (+1) of the connector, and the negative battery (-) lead to terminal 5 (E). With the motor operating at low speed (LO), disconnect terminal 1 (+1) to stop wiper motor operation at any position other than the automatic stop position.
2. Using SST, connect terminals 3 (+S) and 1 (+1), and the positive battery (+) lead to terminal 3 (B) to restart motor operation at low speed.

SST 09843-18040

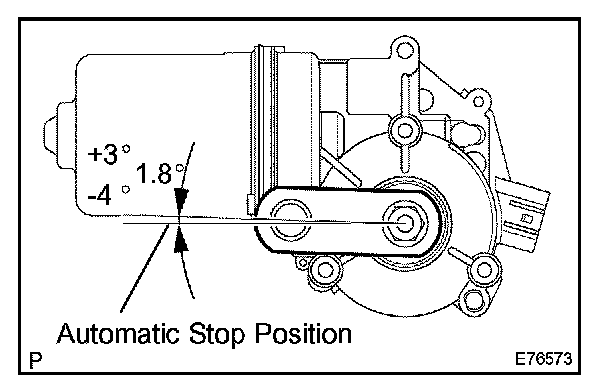

3. Check the automatic stop position as shown in the illustration.
