Knock Sensor: Testing and Inspection
INSPECT KNOCK SENSOR

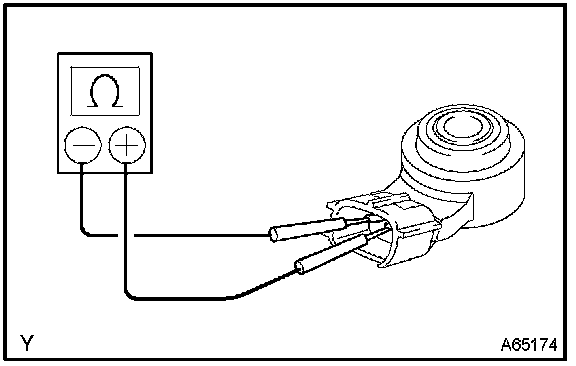

a. Using an ohmmeter, measure the resistance between the terminals.
Standard: 120 to 280 kOhms at 20 degrees C (68 degrees F)
HINT: If the result is not as specified, replace the sensor.
a. Using an ohmmeter, measure the resistance between the terminals.
Standard: 120 to 280 kOhms at 20 degrees C (68 degrees F)
HINT: If the result is not as specified, replace the sensor.
