FAIL-SAFE CHART

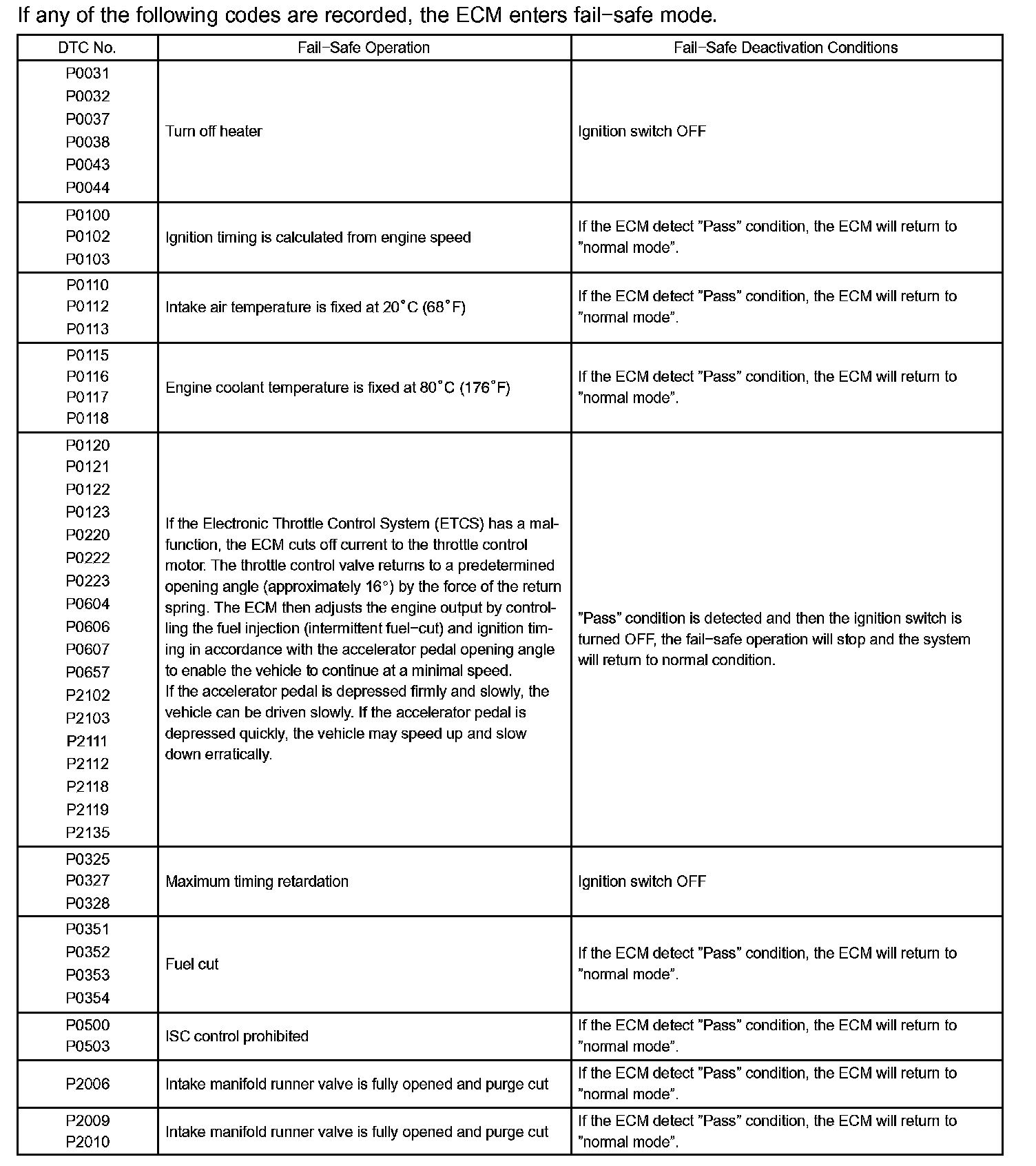

Fail-Safe Chart (Part 1):
Fail-Safe Chart (Part 2):
If any of the given codes are recorded, the ECM enters fail-safe mode.
