Control Module: Testing and Inspection

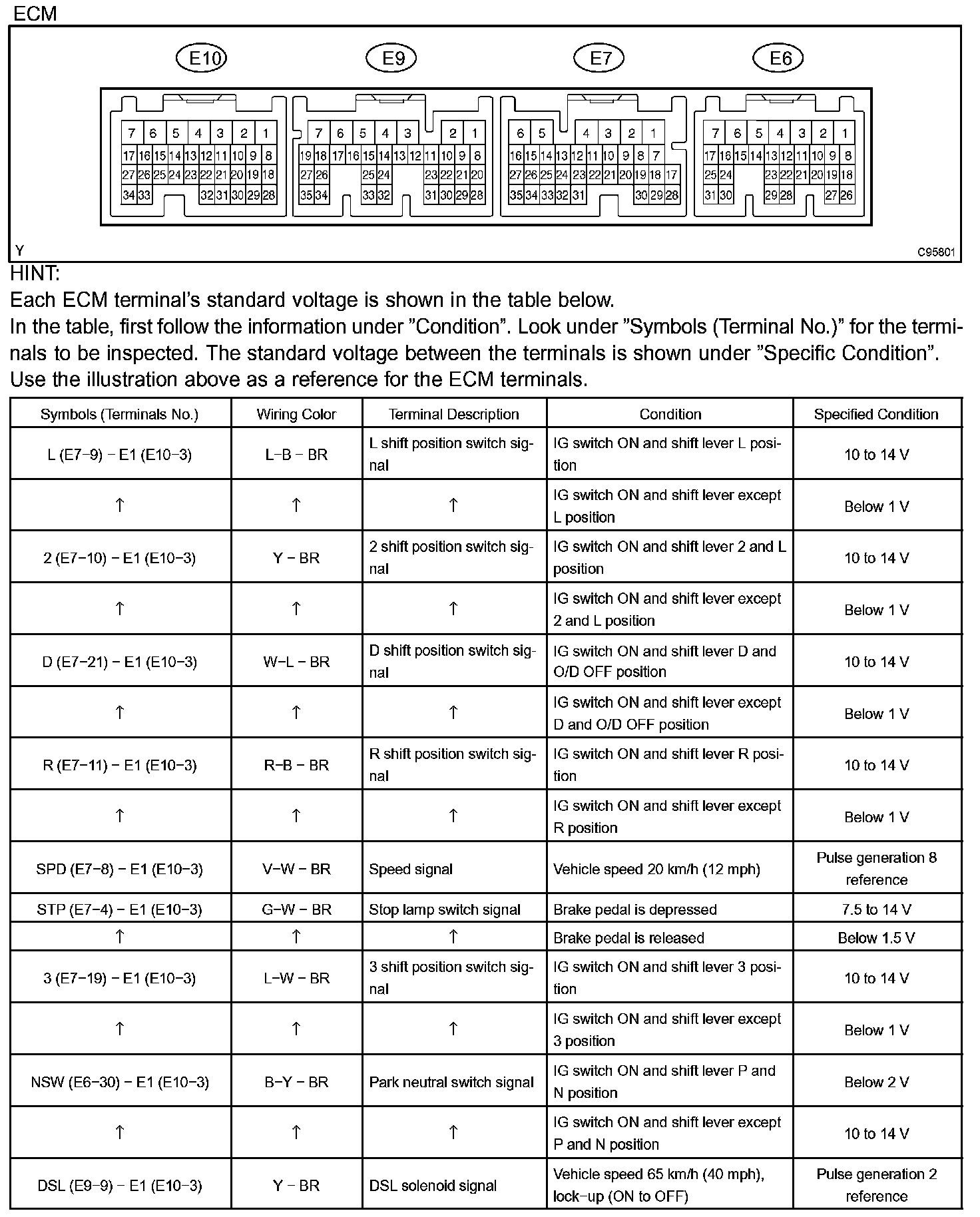

Terminals Of ECM/Pinouts - ECM (Part 1):

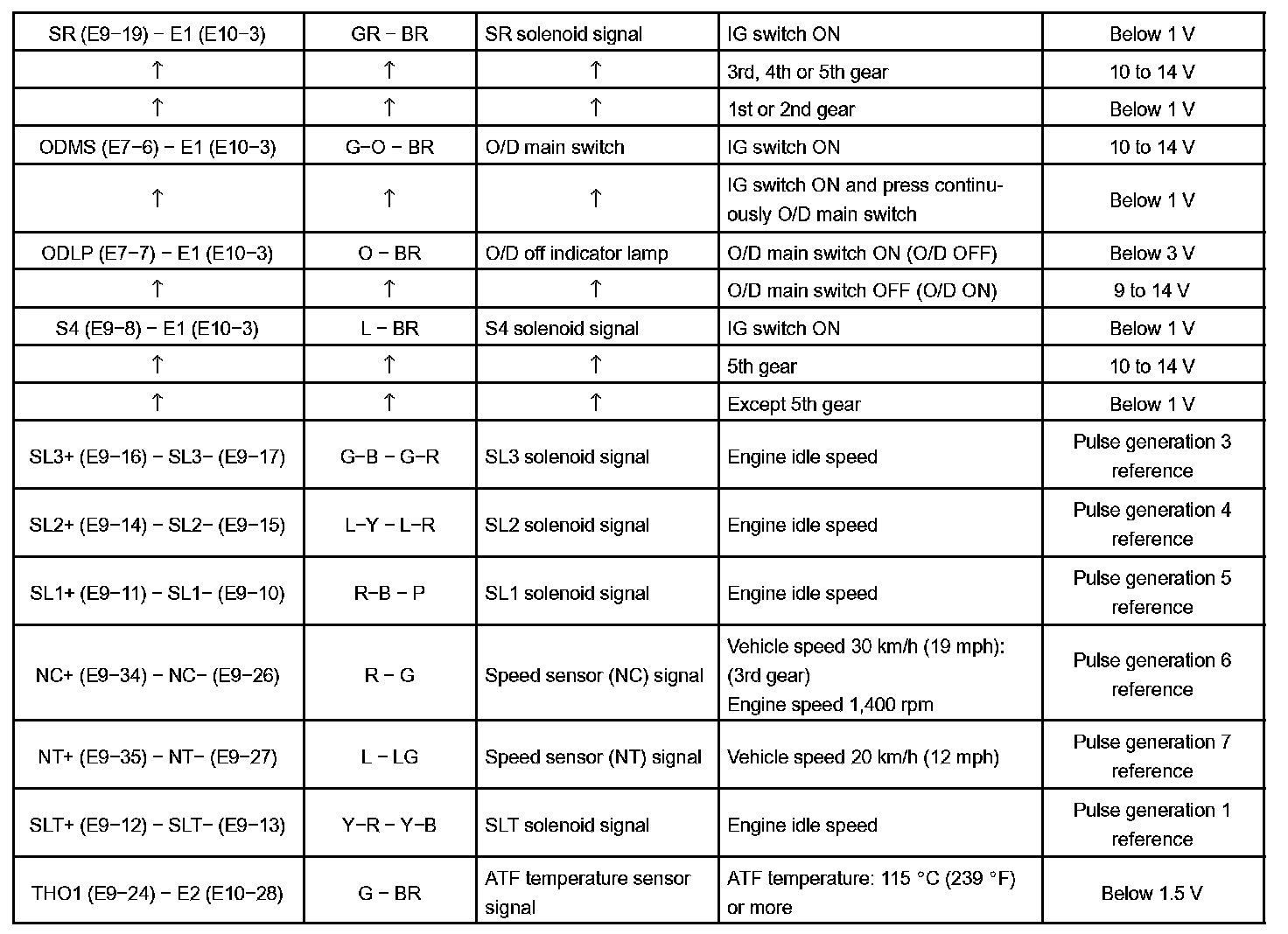

Terminals Of ECM/Pinouts - ECM (Part 2):

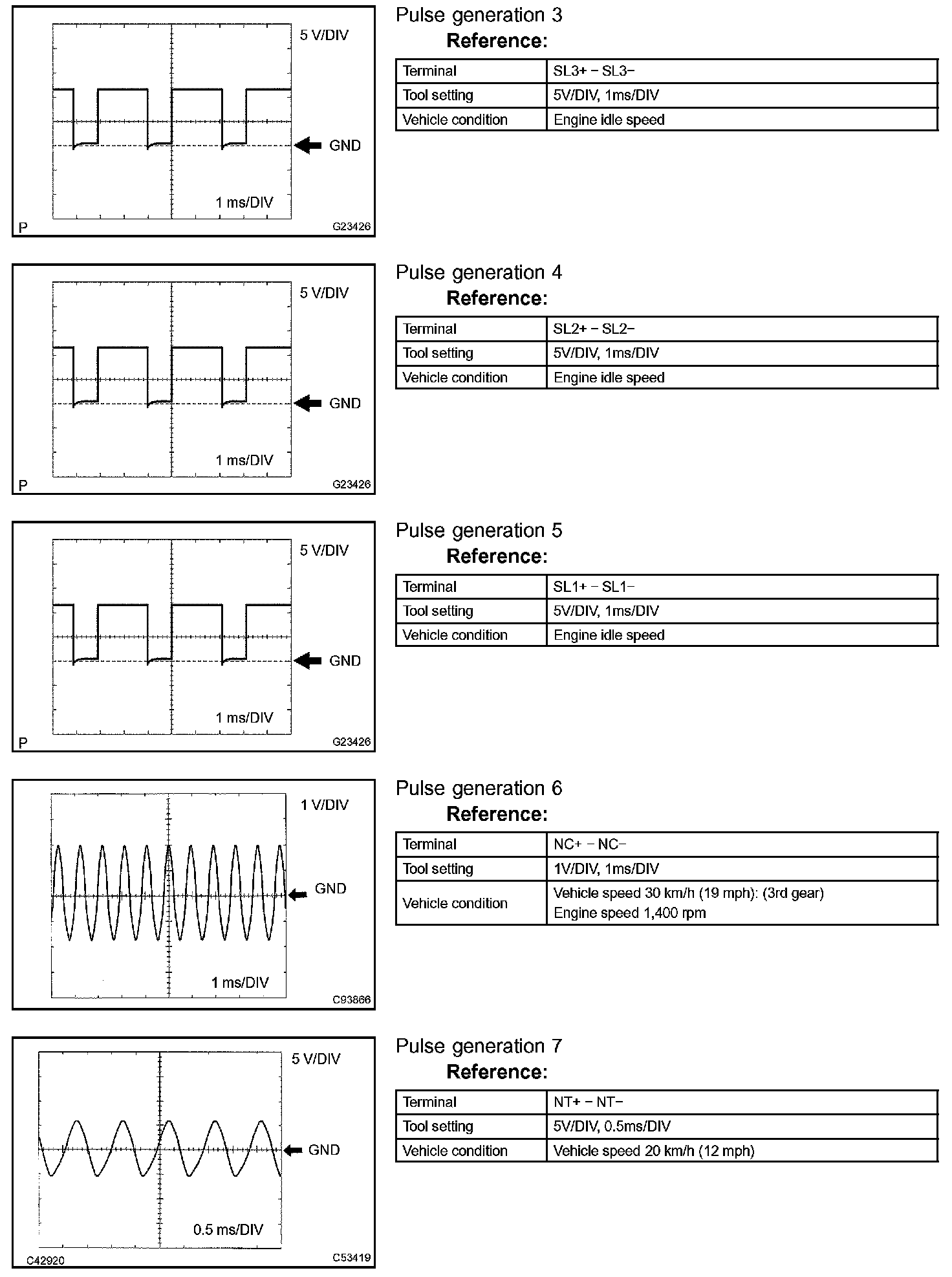

Oscilloscope Waveforms (Part 1):

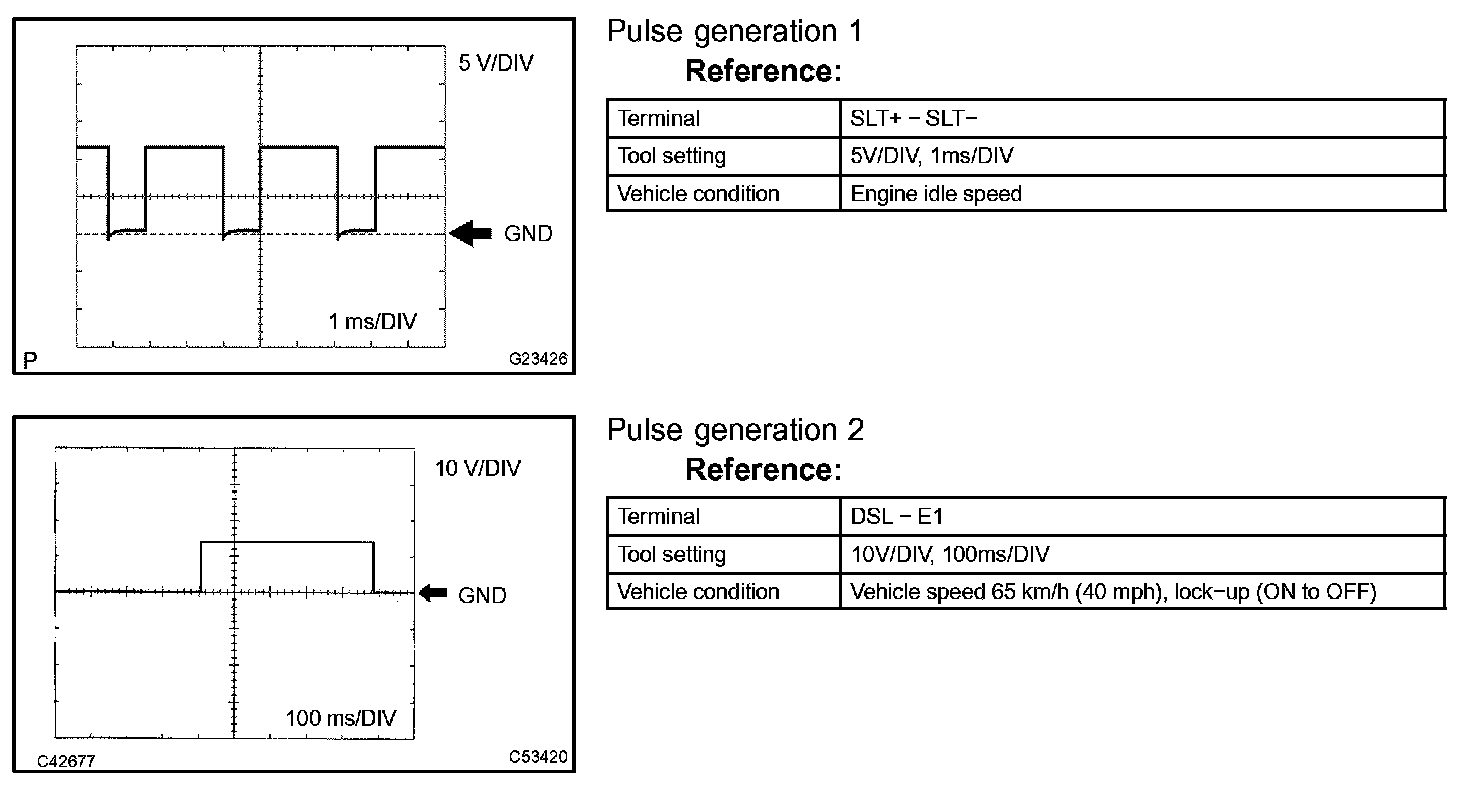

Oscilloscope Waveforms (Part 2):

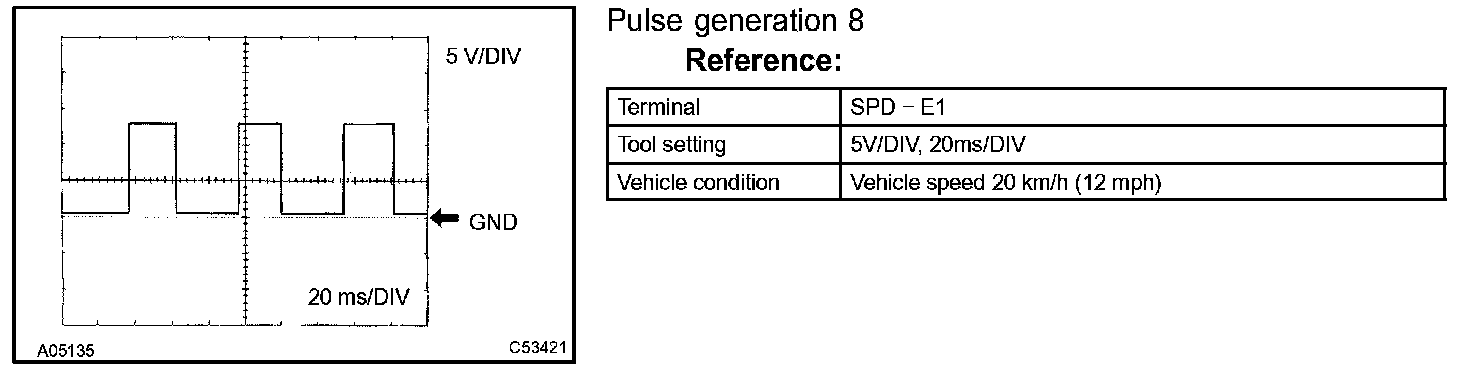

Oscilloscope Waveforms (Part 3):
