Illumination Circuit

ILLUMINATION CIRCUIT

CIRCUIT DESCRIPTION

Power is supplied to the radio receiver panel illumination when the light control switch is in the TAIL or HEAD position.

The intensity of the radio receiver panel illumination can be adjusted by the light control rheostat.

Wiring Diagram:

Step 1-2:

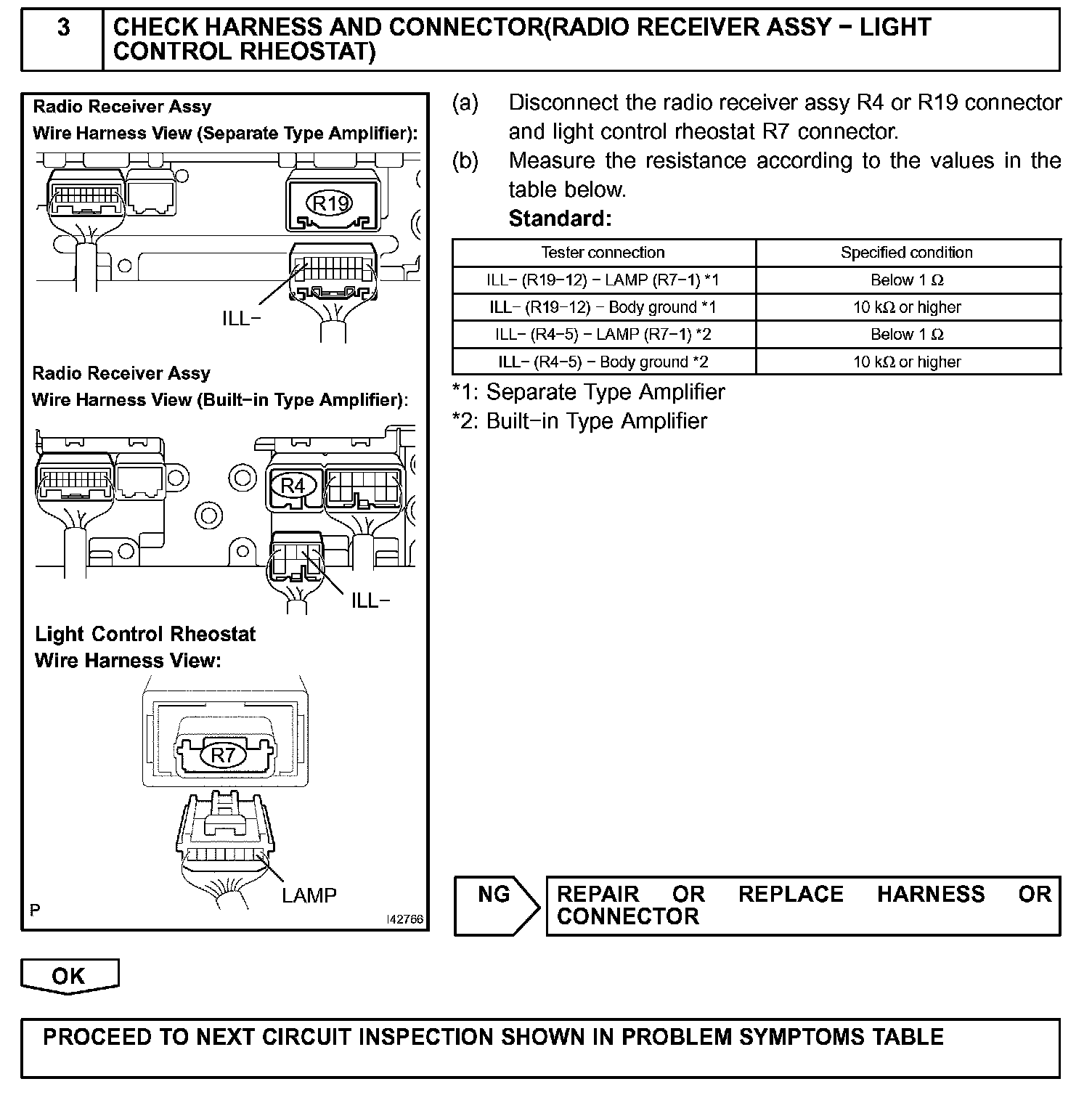

Step 3:

INSPECTION PROCEDURE
