Antilock Brakes / Traction Control Systems: Locations

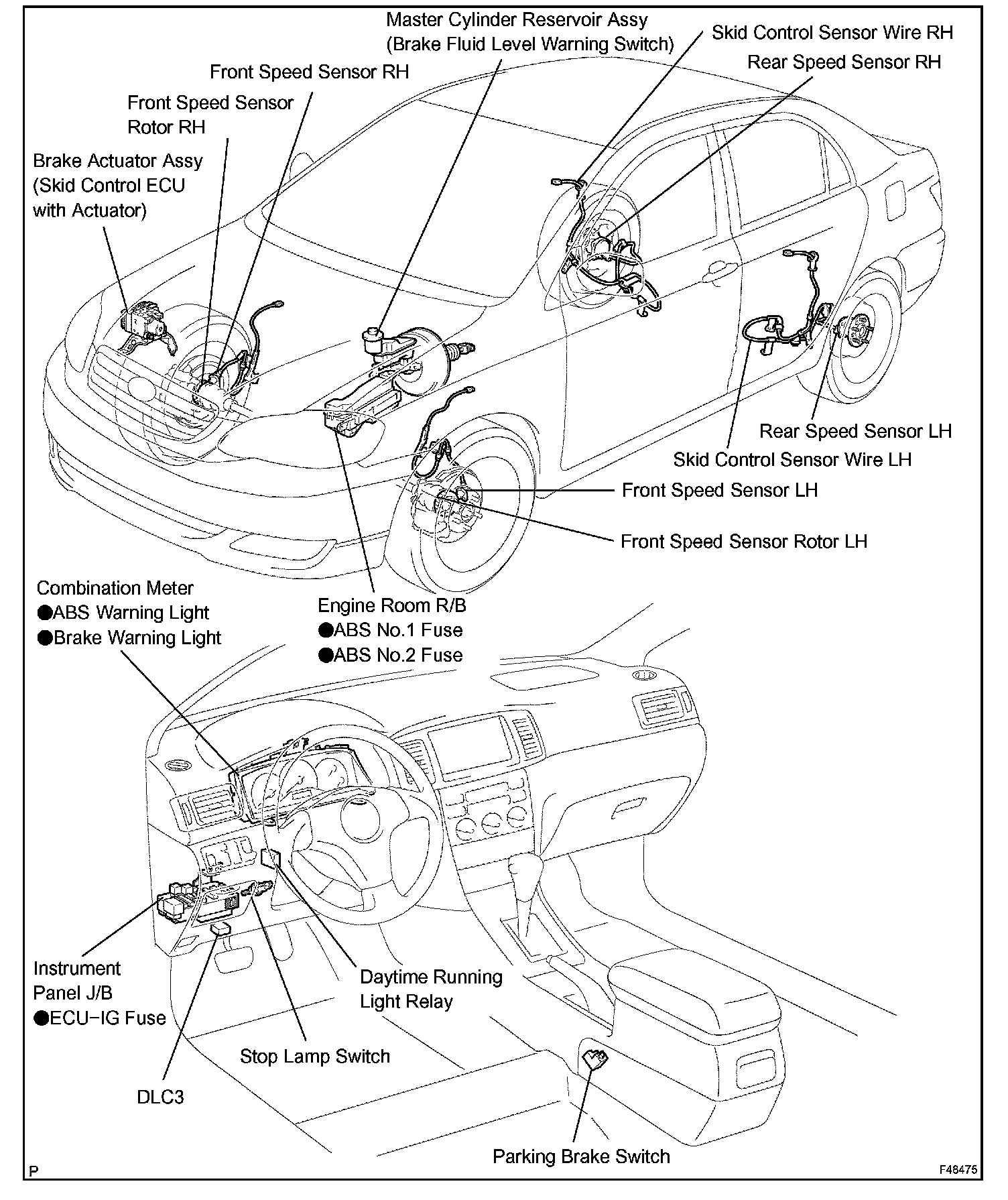

ABS With EBD System:

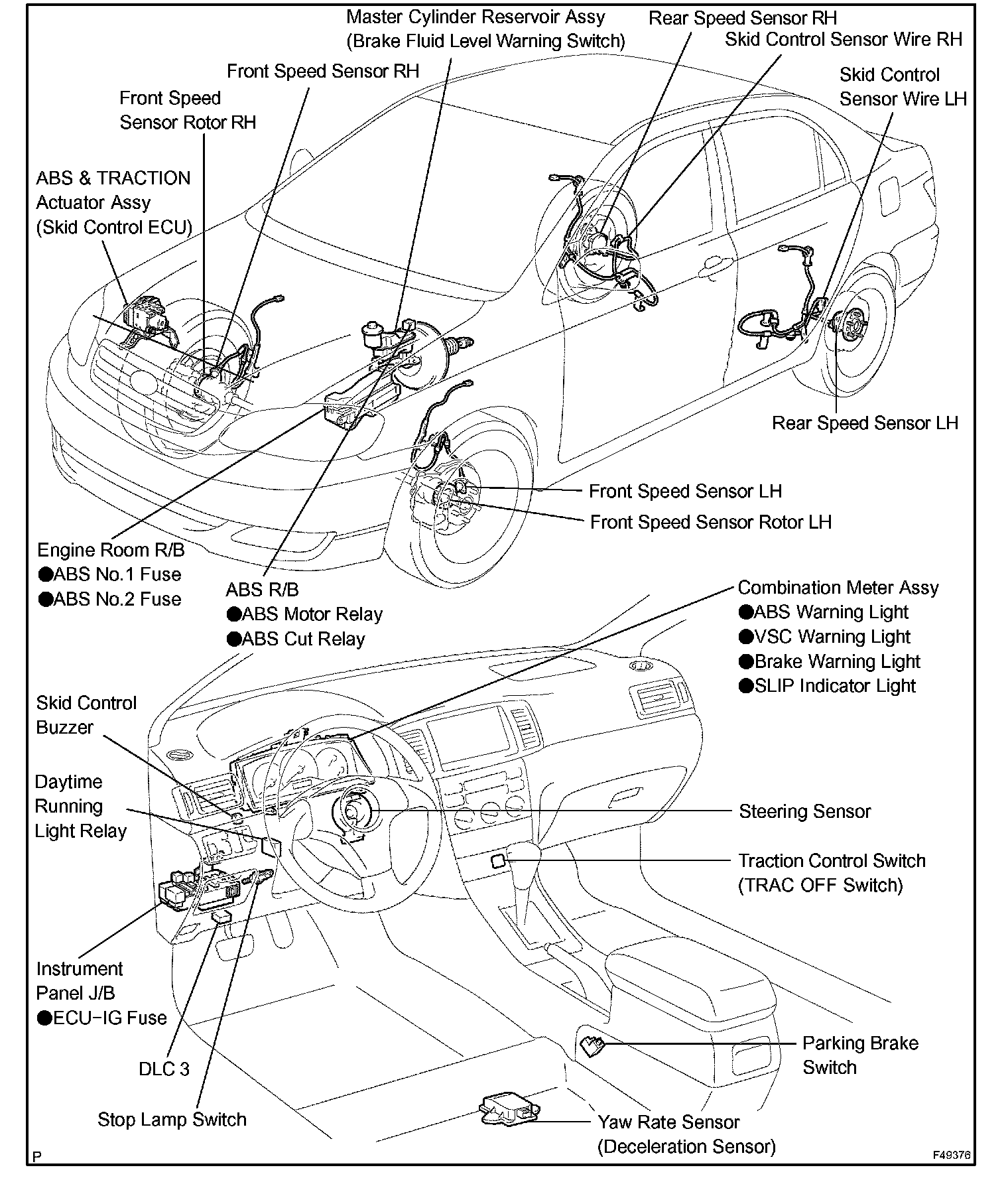

ABS With EBD & BA & TRAC VSC System:
