ABS Warning Light Circuit (Does Not Light Up)

ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

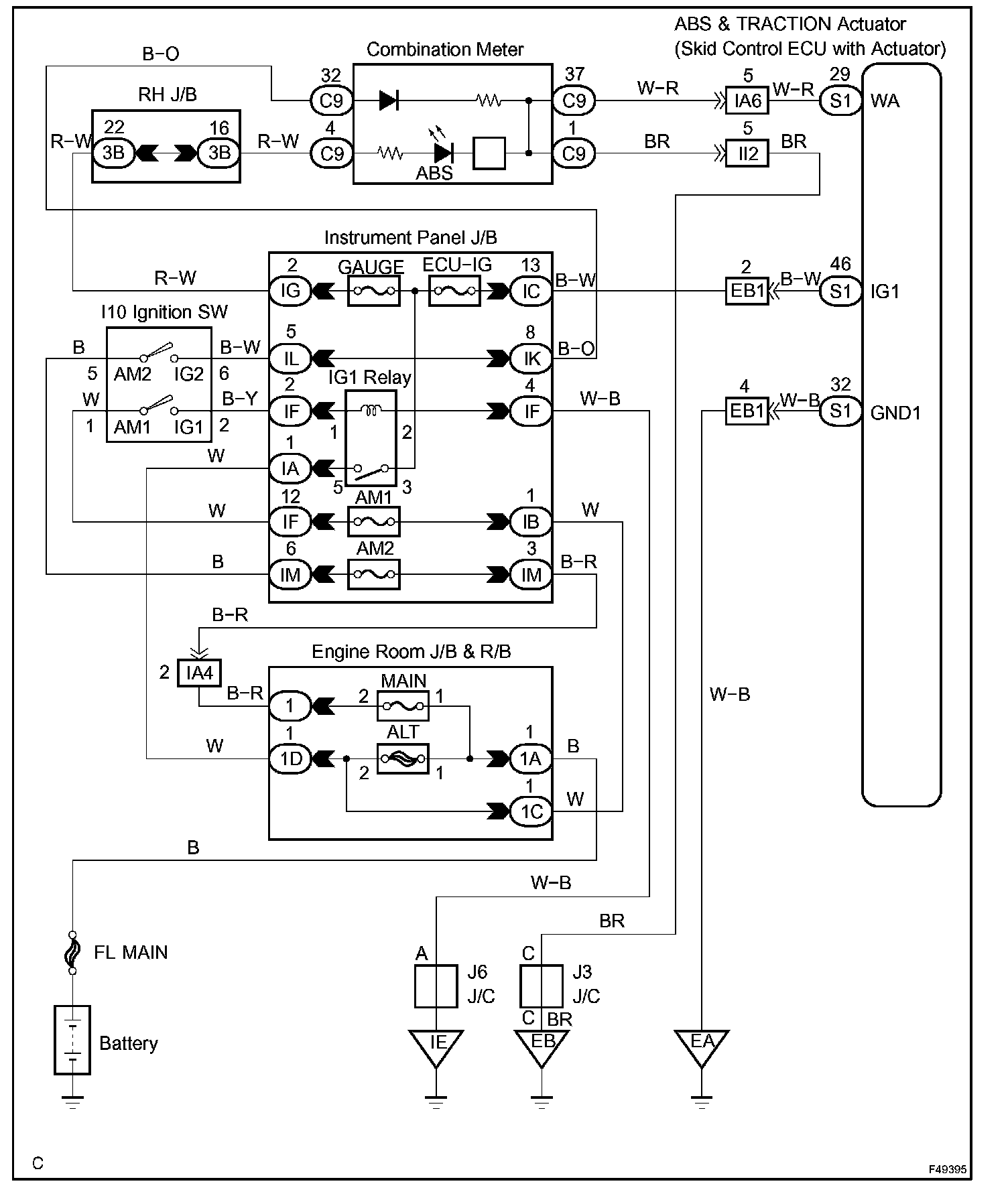

Wiring Diagram:

Step 1:

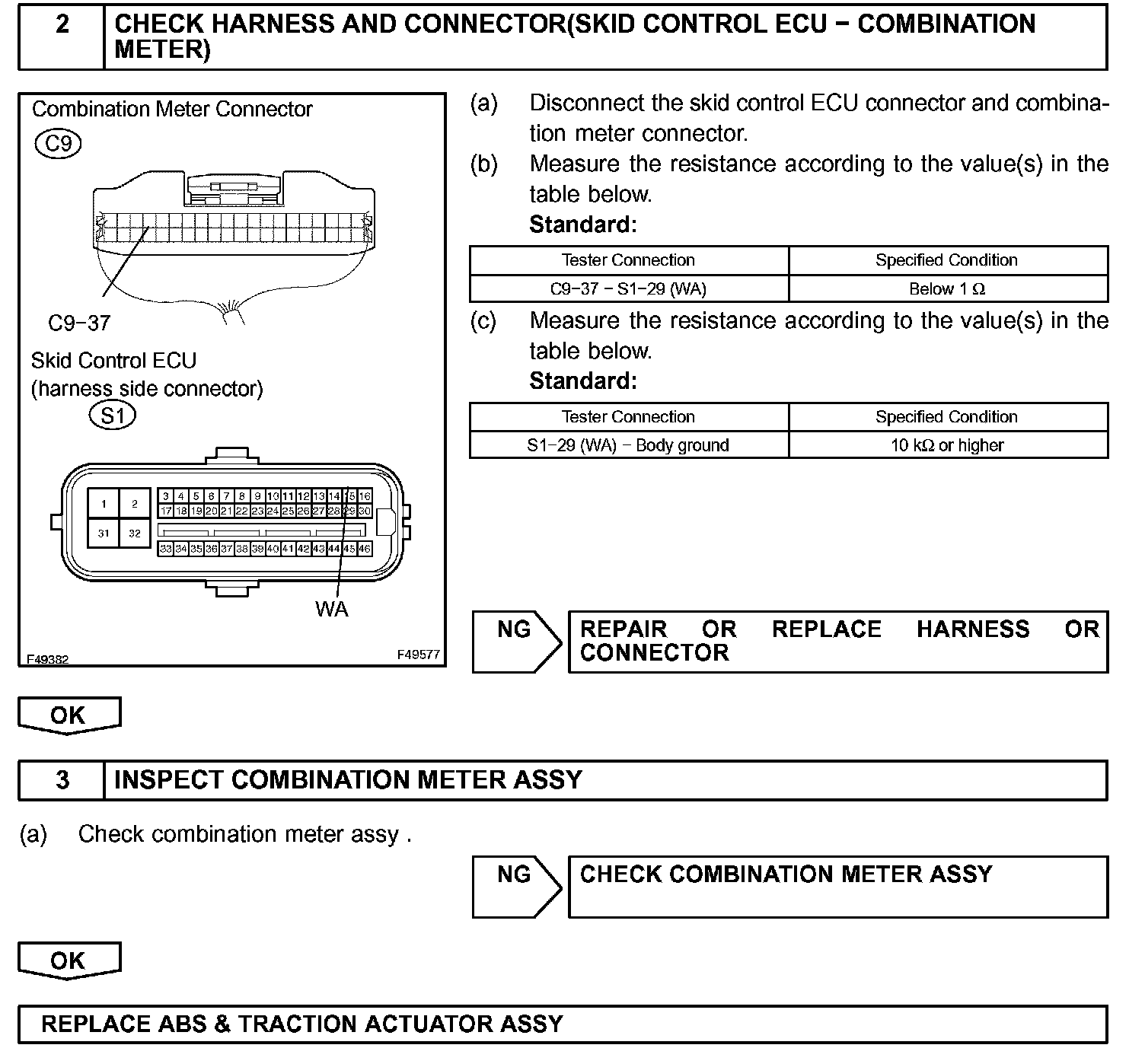

Step 2-3:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
