TC and CG Terminal Circuit

TC AND CG TERMINAL CIRCUIT

CIRCUIT DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

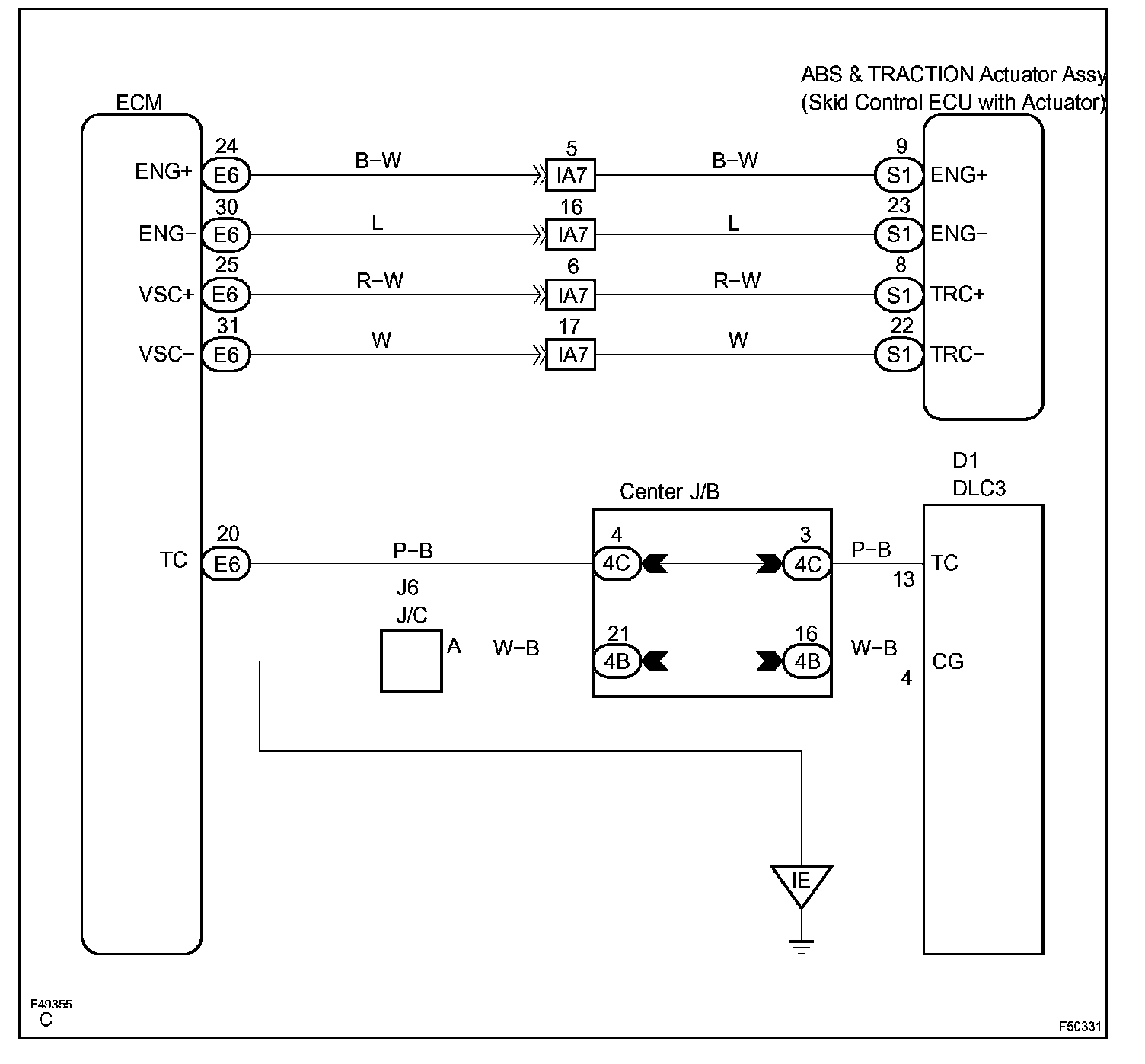

Wiring Diagram:

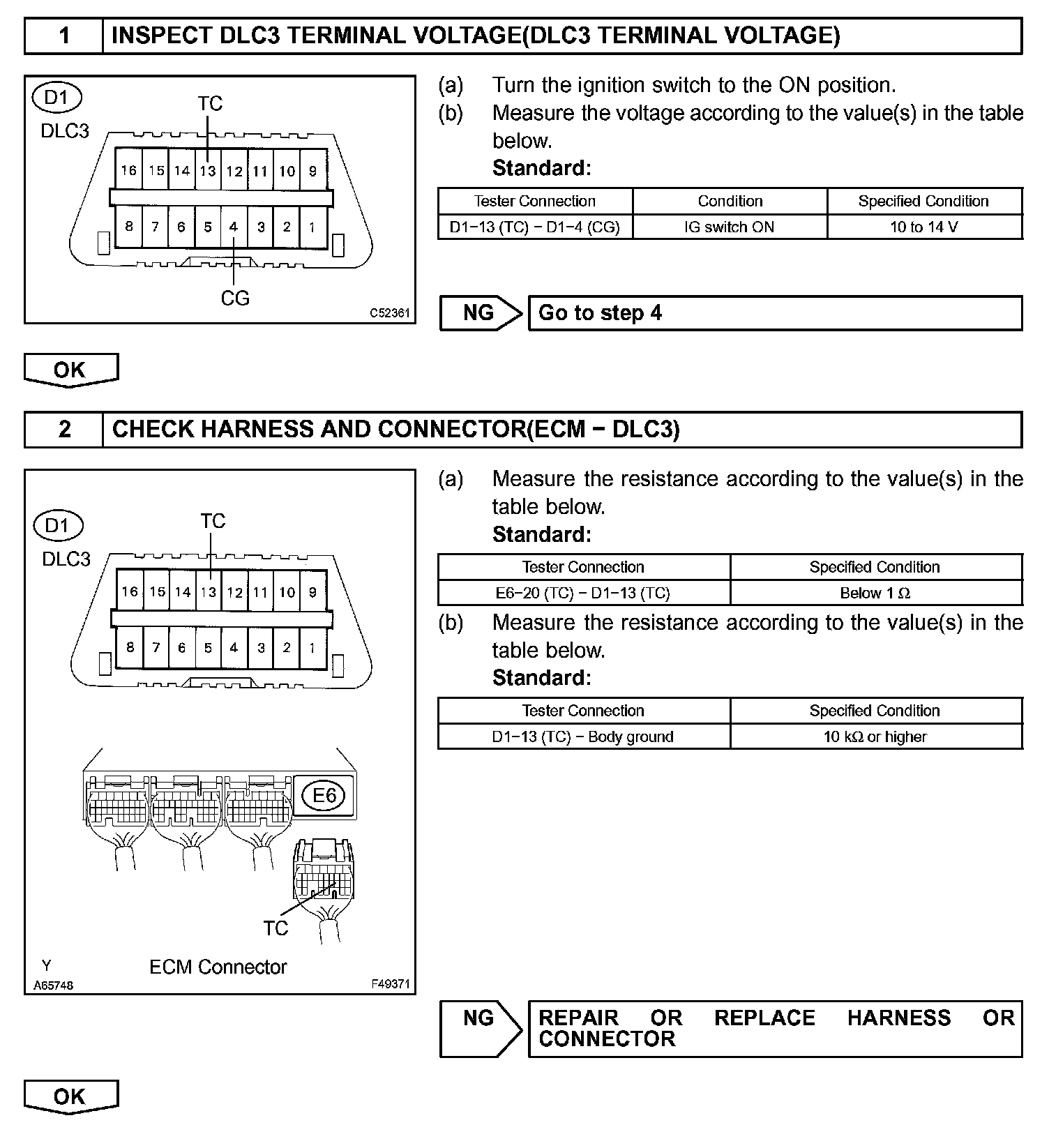

Step 1-2:




Step 3-4:




Step 5:

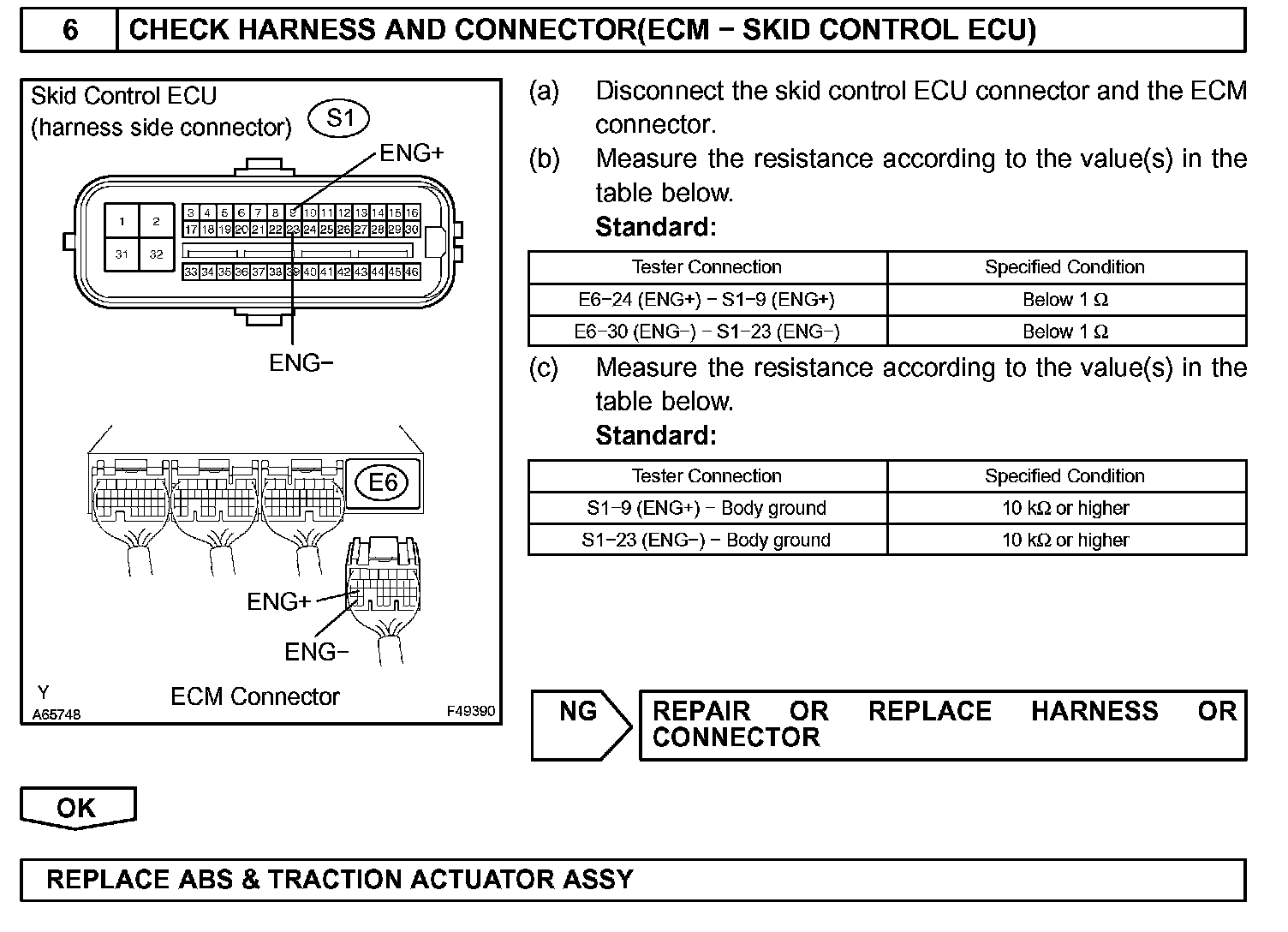

Step 6:




INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
