Cruise Main Indicator Light Circuit

CRUISE MAIN INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The CRUISE main indicator light comes on while the cruise control system is in operation and blinks when there are any problems with the system.

DTCs can be read by counting the number of times the CRUISE main indicator light blinks.

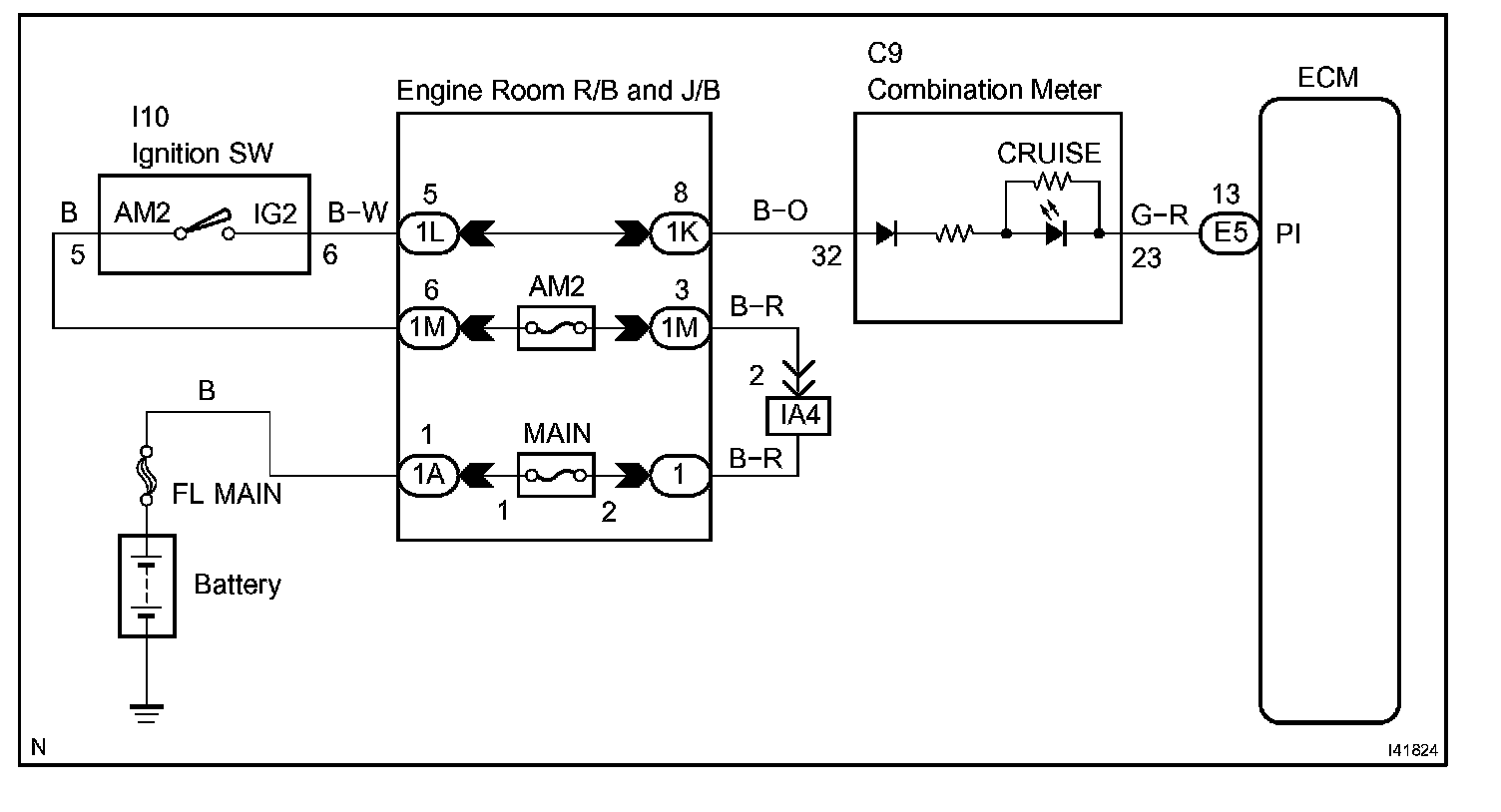

Wiring Diagram:






Step 1-2:




Step 3:

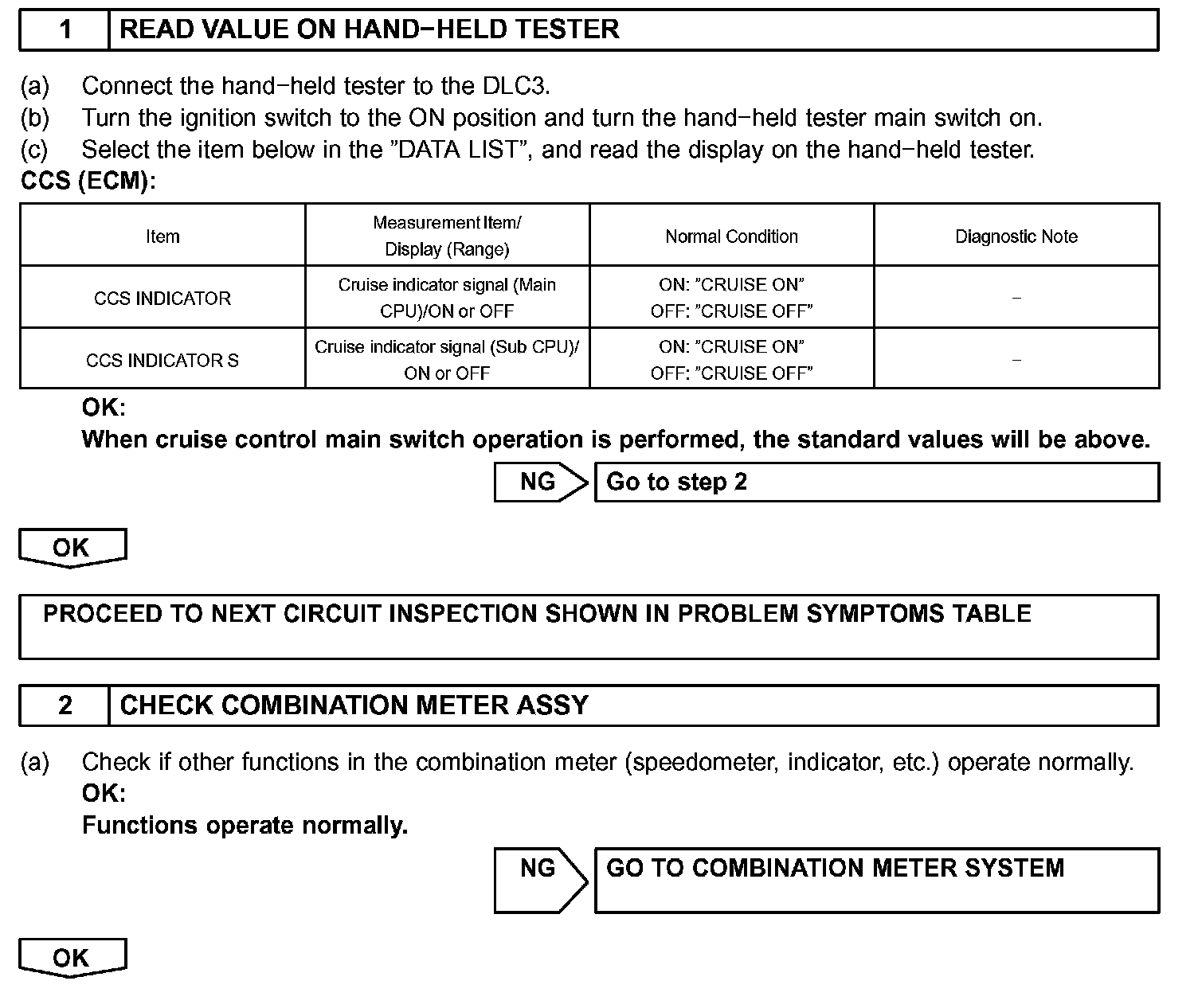

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
