Engine - Vibration/Droan On Take-Off Up To 30 MPH
ENGINEEG027-06
April 21, 2006
Title:
1ZZ - FE ENGINE MOUNT TAKEOFF VIBRATION
Models:
'05 - '06 Corolla & Matrix
Introduction
Some 2005 - 2006 model year Corolla and Matrix vehicles may exhibit engine vibration and drone noise while accelerating from a stop up to 30 mph. The right hand (RH) engine mount has been improved to correct this condition.
Applicable Vehicle
^ 2005 - 2006 model year Corolla and Matrix vehicles equipped with the 1ZZ-FE engine and produced BEFORE the Production Change Effective VINs shown below.

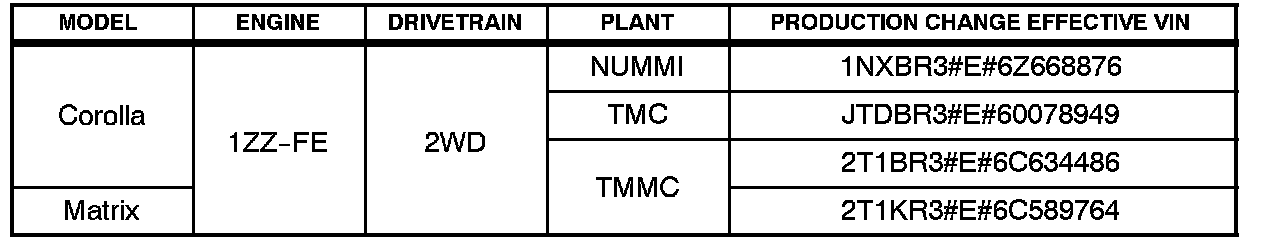

Production Change Information

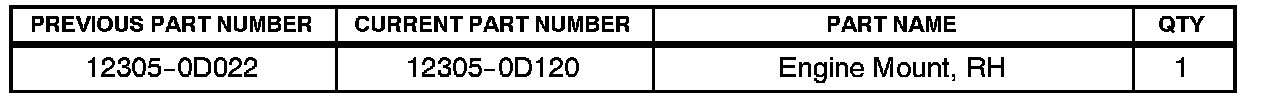

Parts Information

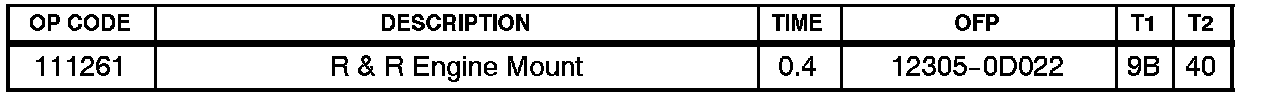

Warranty Information
Applicable Warranty:
This repair is covered under the Toyota Powertrain Warranty. This warranty is in effect for 60 months or 60,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Repair Procedure

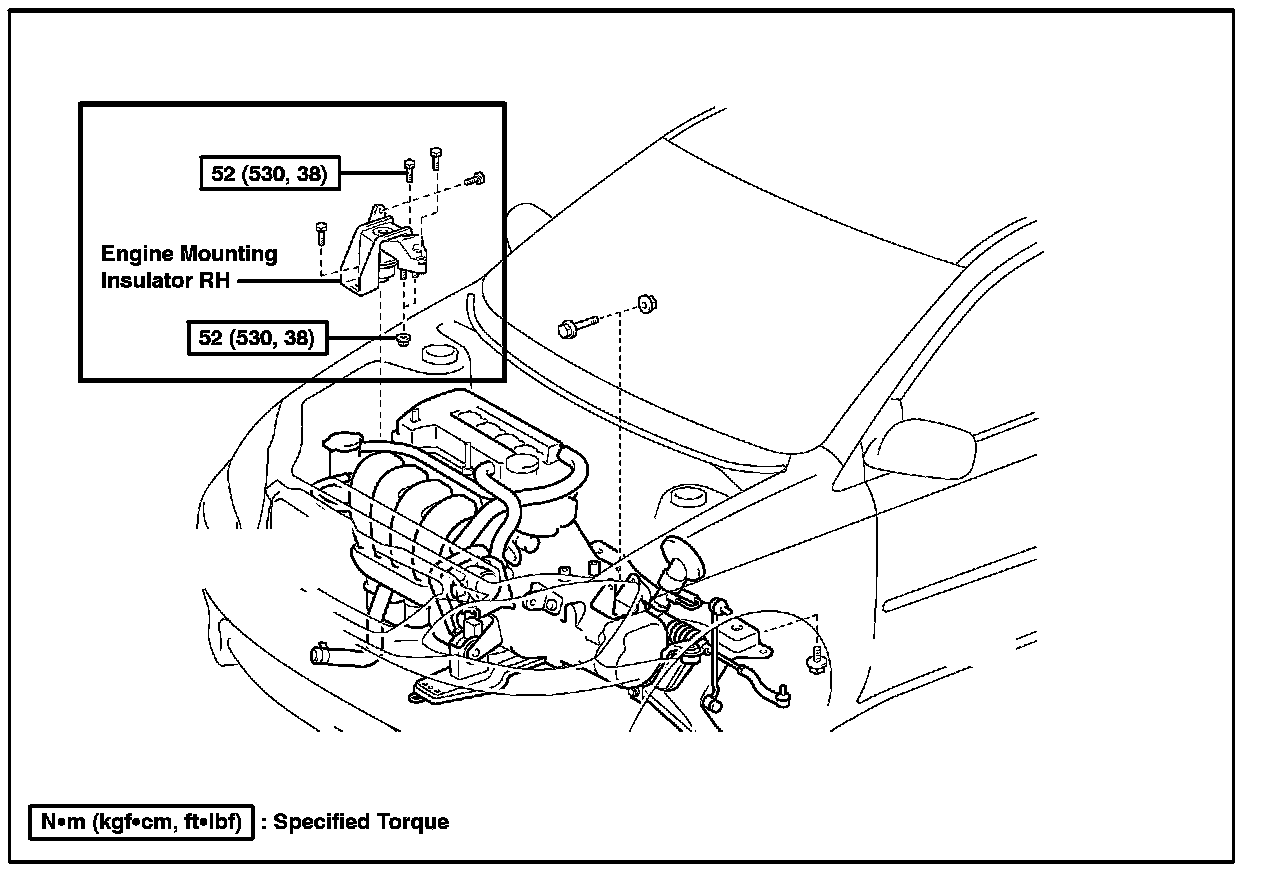

1. Remove and replace the right hand (RH) engine mount.
2. Test drive the vehicle and confirm that the engine vibration and drone noise are diminished.
