ABS and Tire Pressure Warning System Without VSC

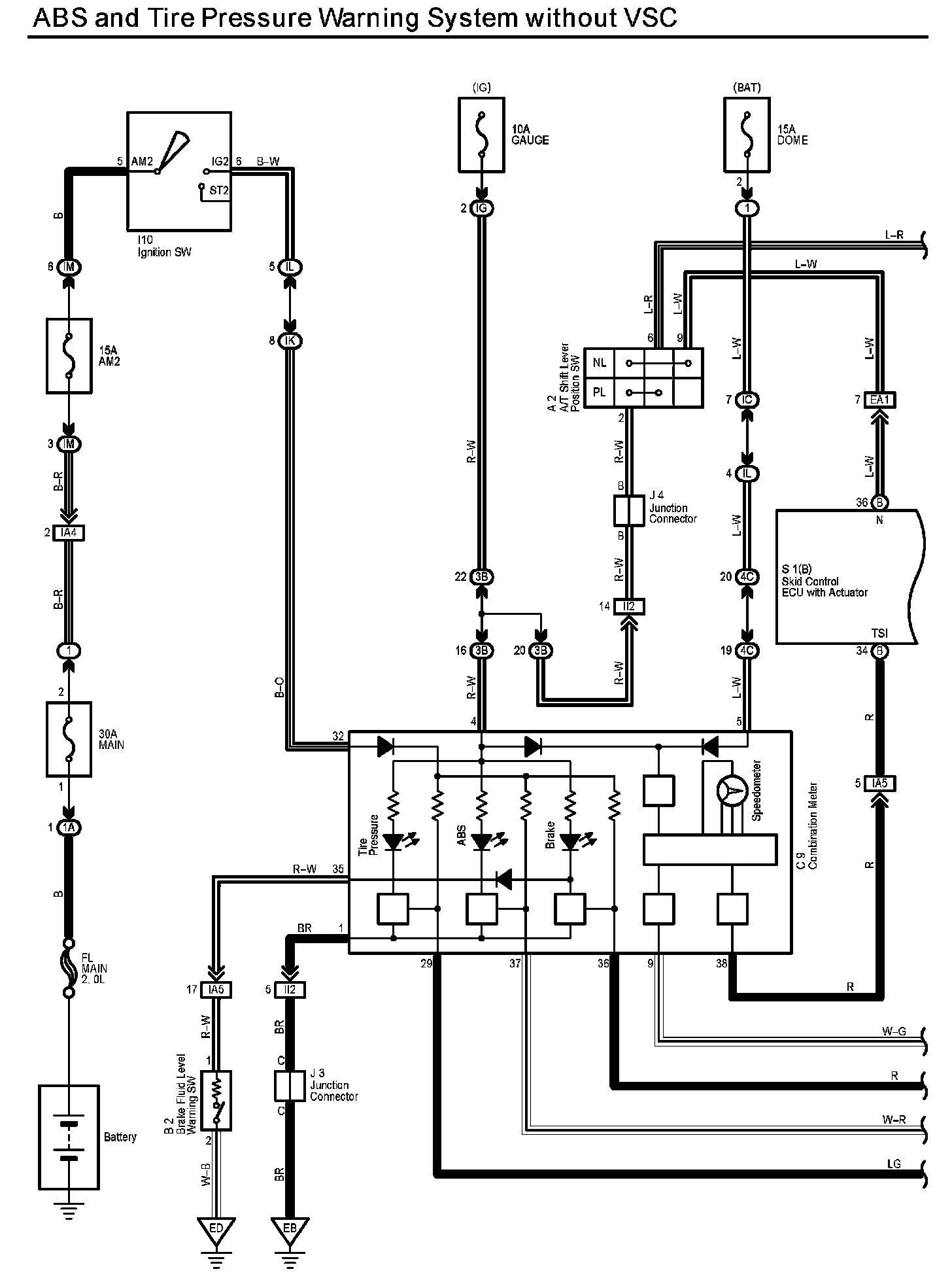

ABS And Tire Pressure Warning System Without VSC Part 1:

ABS And Tire Pressure Warning System Without VSC Part 2:

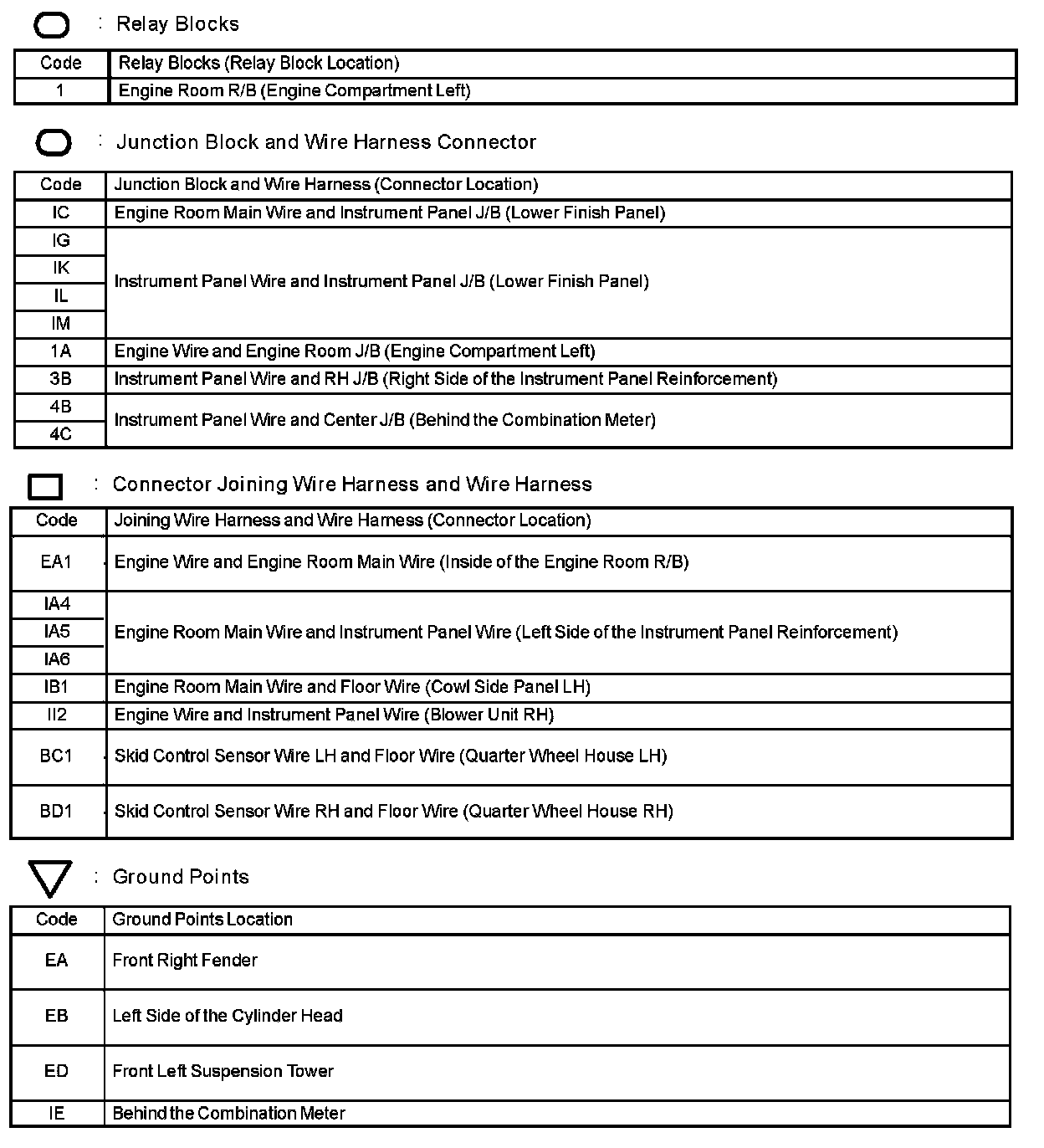

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
