Connector Locations

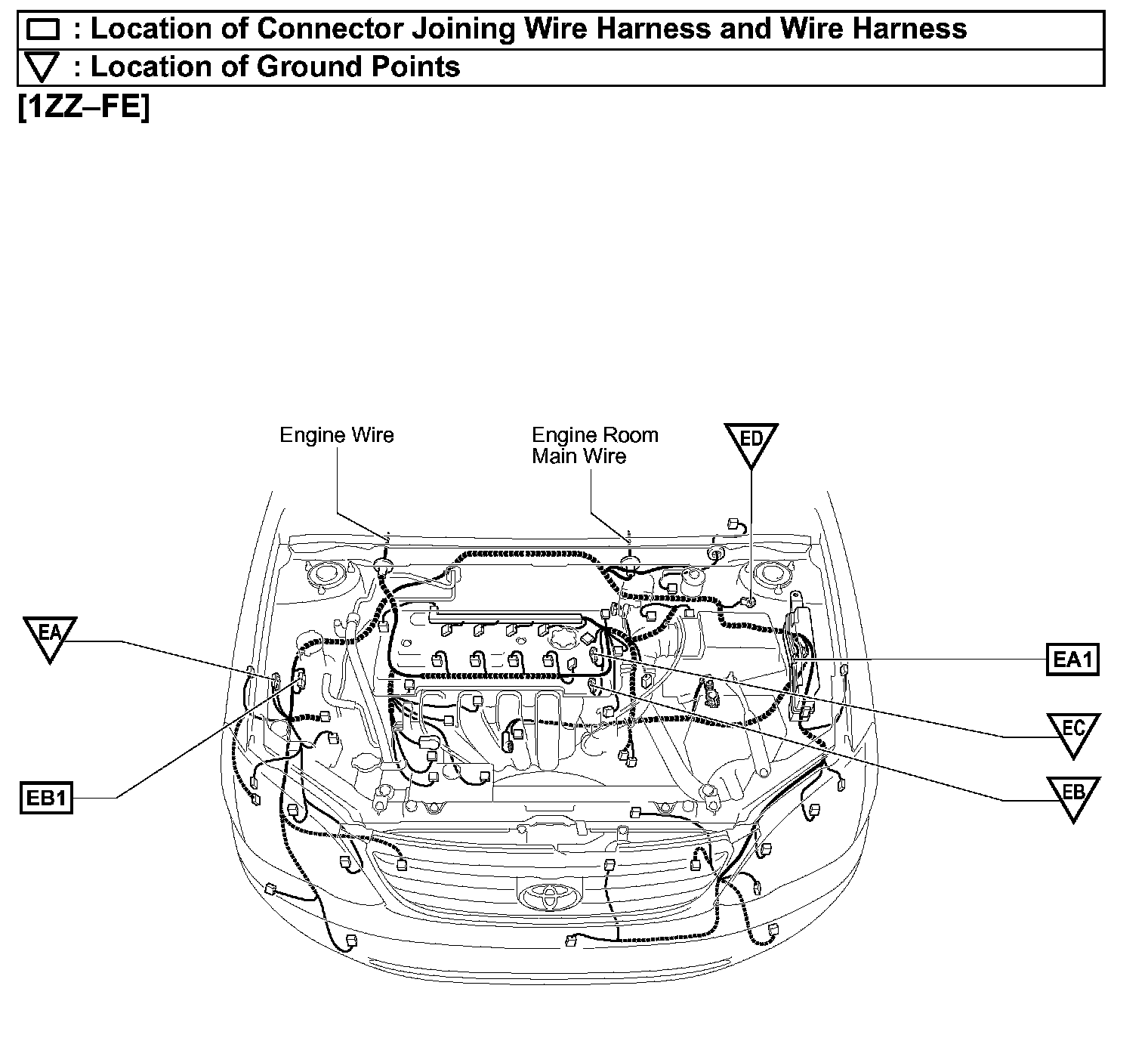

EA1 - EB1, EA - ED:

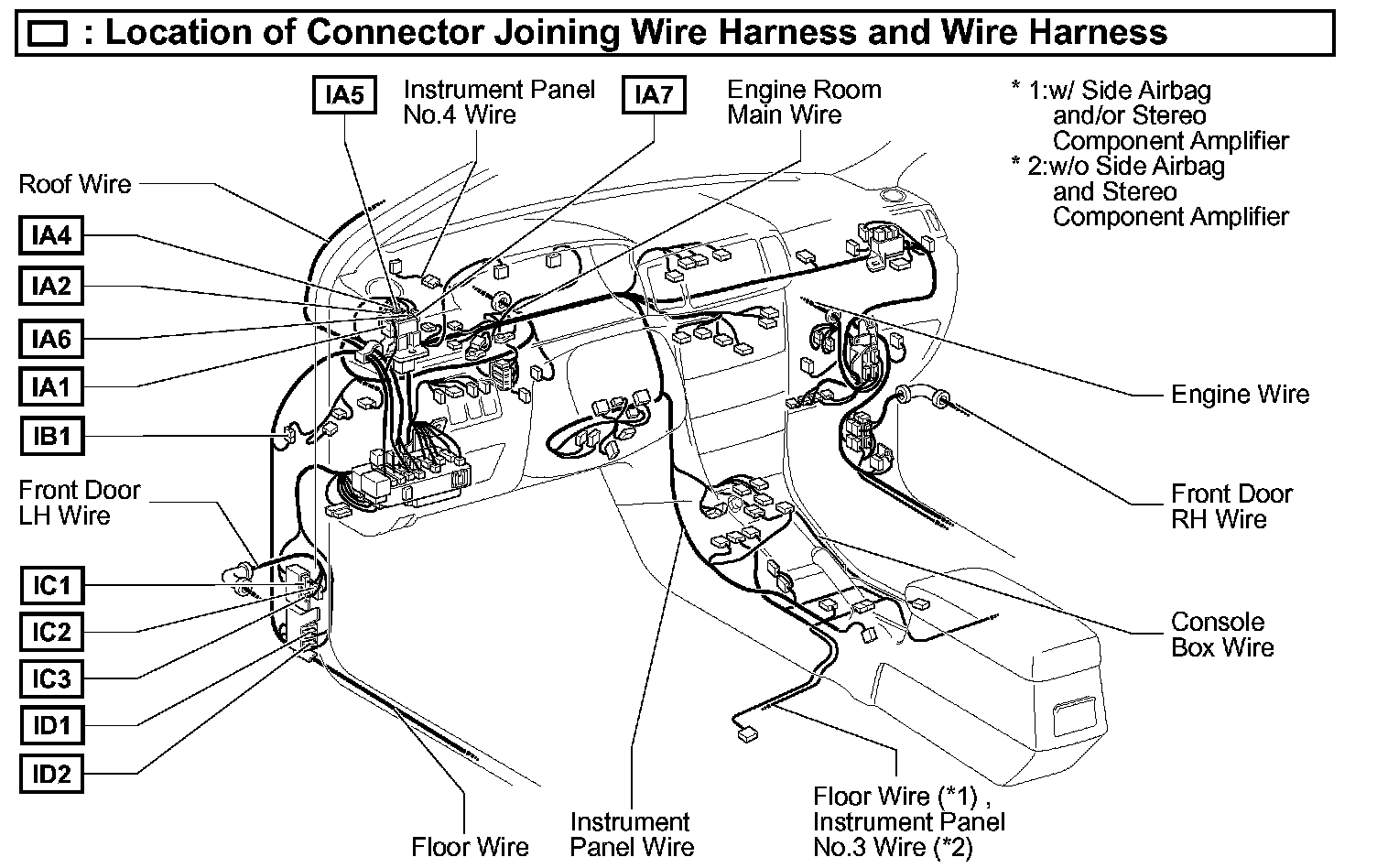

IA1 - ID2:

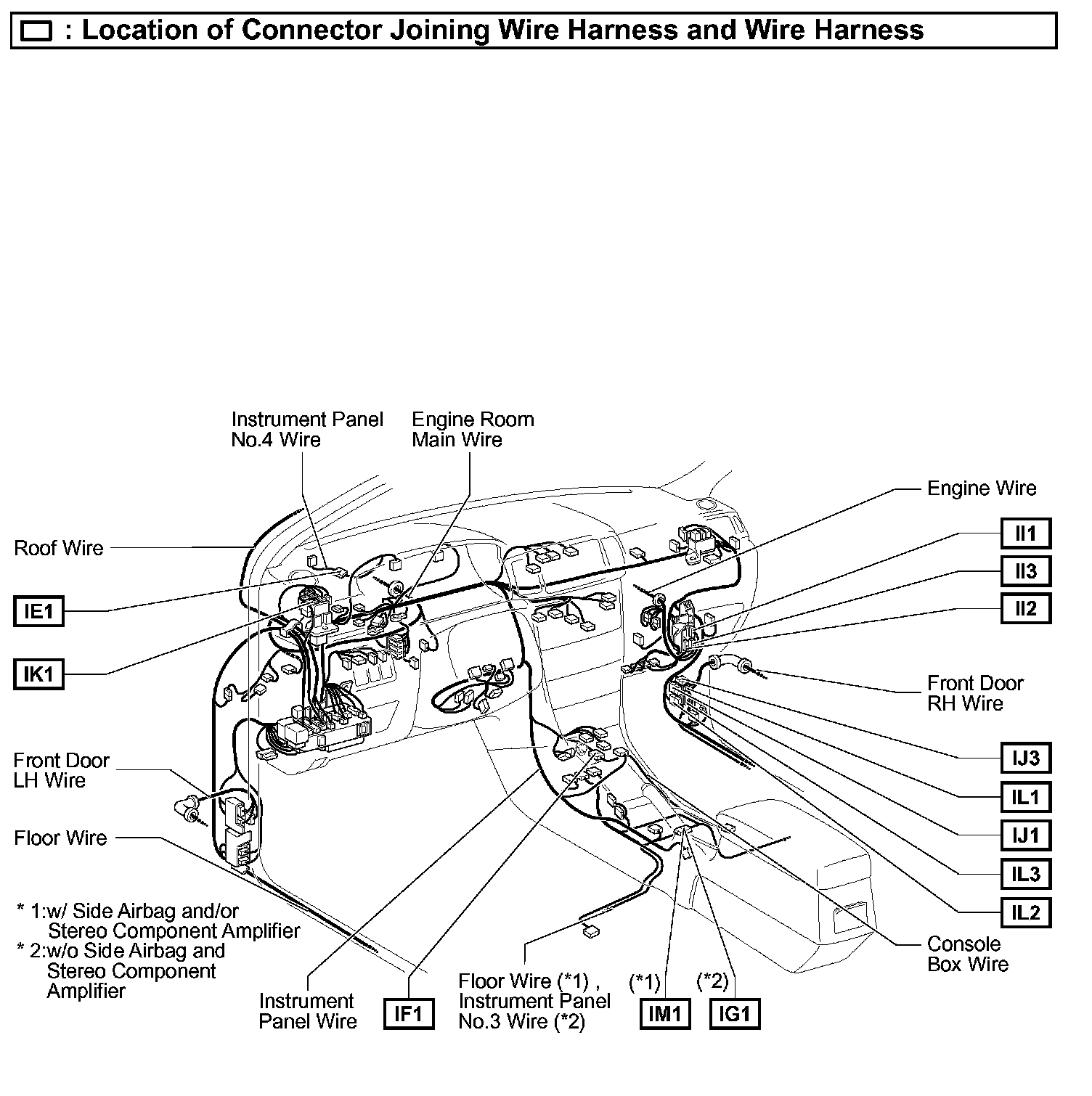

IE1 - IM1:

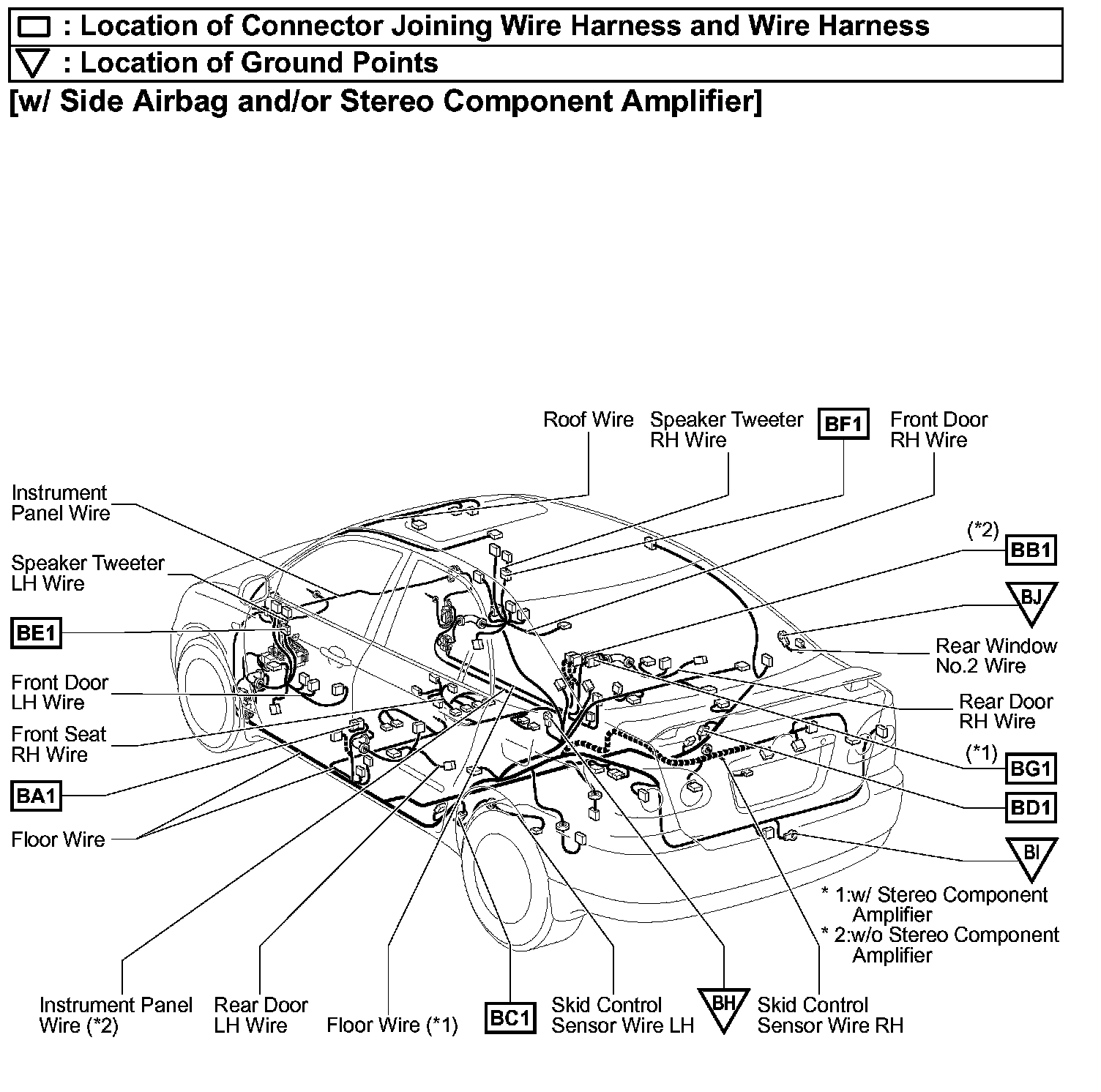

BA1 - BG1, BH - BJ:

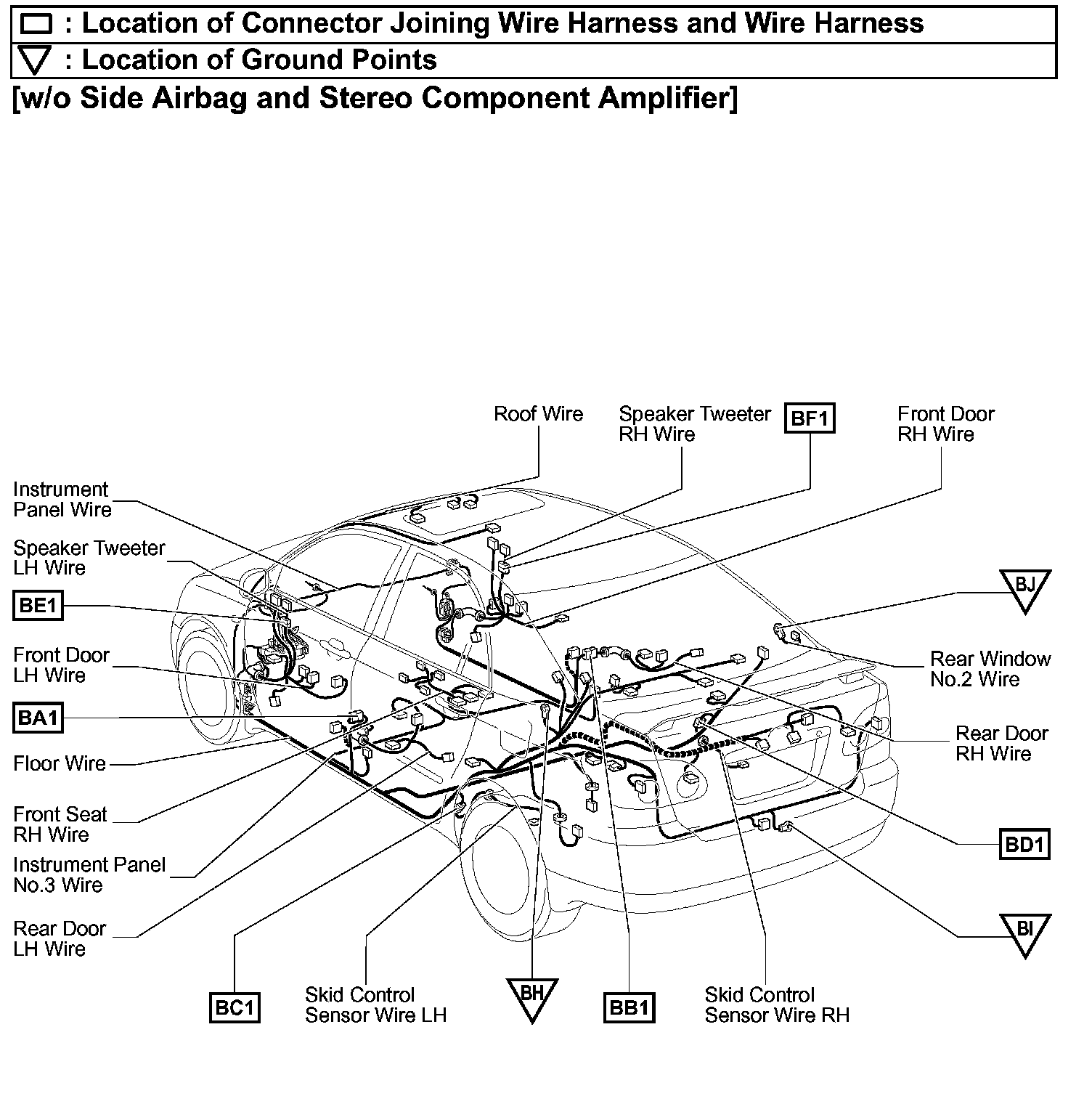

BA1 - BF1, BH - BJ:
